感谢 nendo 予gooood的分享。 相关文章更多关于他们：nendo on gooood。
Appreciation towards nendo for providing the following description:

2020东京奥运会圣火台的设计理念，来源于奥运会&残奥会开闭幕式策划团队的（前）首席执行创意总监 —— 野村万斋的一句话，“全人类聚集在阳光之下，所有人都是平等的，所有人都获得能量”。 同题参见为了充分体现出这一理念，nendo设计团队总共做了85个草稿雏形，球形的耐热玻璃容器旋转打开，绽放出圣火之花，旨在以抽象的方式表达出圣火与太阳的相似之处。

▼视频，video © nendo

An Olympic Cauldron was designed based on the concept “All gather under the Sun, all are equal, and all receive energy” by Mansai Nomura, who was the Chief Executive Creative Director of the planning team for the Opening and Closing Ceremonies at the Tokyo 2020 Olympics and Paralympics. A total of 85 drafts were made out, from flames trapped in a heat-resistant glass sphere to spinning the flames to create a spherical appearance, in order to express the desired resemblance to the Sun. 相关文章

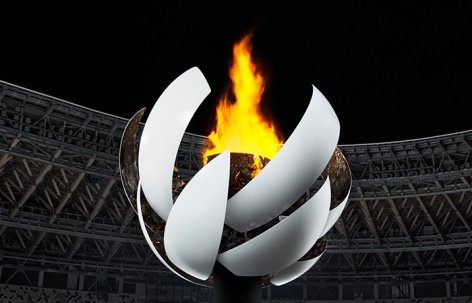

▼在开幕式会场中“绽放”的圣火台，
The Olympic Cauldron “blooming” at the opening ceremony © Takumi Ota

▼球形的耐热玻璃容器旋转打开，绽放出圣火之花，
flames trapped in a heat-resistant glass sphere to spinning the flames to create a spherical appearance © Ikki Yamaguchi

经过反复试验，最终得到如今的球形圣火台形态。打开后的球面可分为上下两个部分，每个半球都由五片组成，代表了奥林匹克的标志性五环。在奥运会开幕式结束时，圣火台“绽放”开来迎接最后一棒火炬手。它不仅代表了太阳本身，还暗喻出太阳所带给人们的活力与能量，如植物发芽，花朵盛开。手向天空张开。

Through trial and error, a spherical form was designed, consisting of upper and lower hemispheres each with five panels representing the Olympic rings. At the end of the Opening Ceremony of the Olympic Games, the cauldron “bloom” to welcome the final torchbearer. This expresses not only the Sun itself, but also the energy and vitality that can be obtained from it, such as plants sprouting, flowers blooming, and hands opening wide toward the sky.

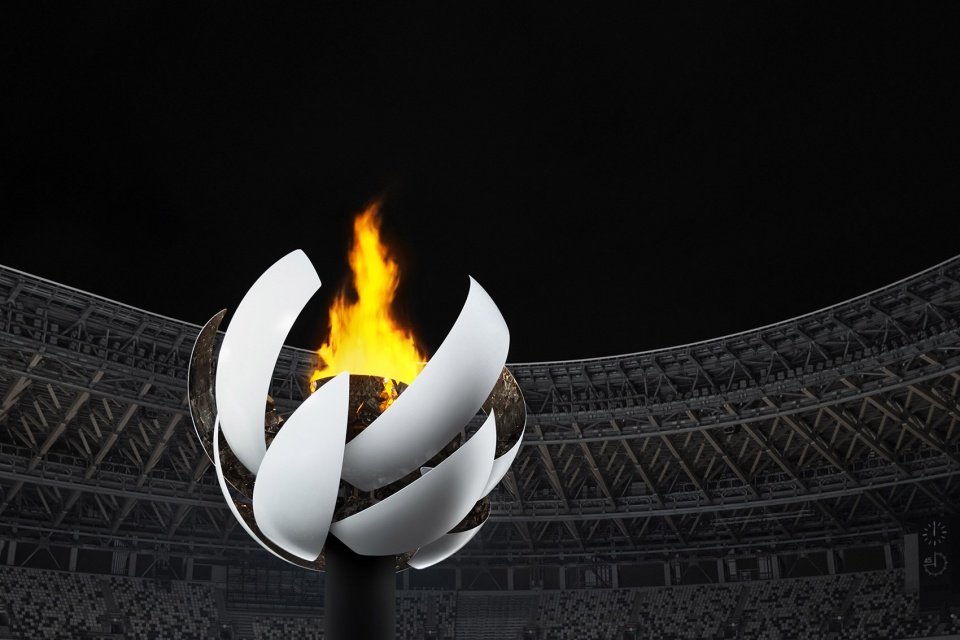

▼2020东京奥运会圣火台，Tokyo2020 Olympic Cauldron © Hiroshi Iwasaki

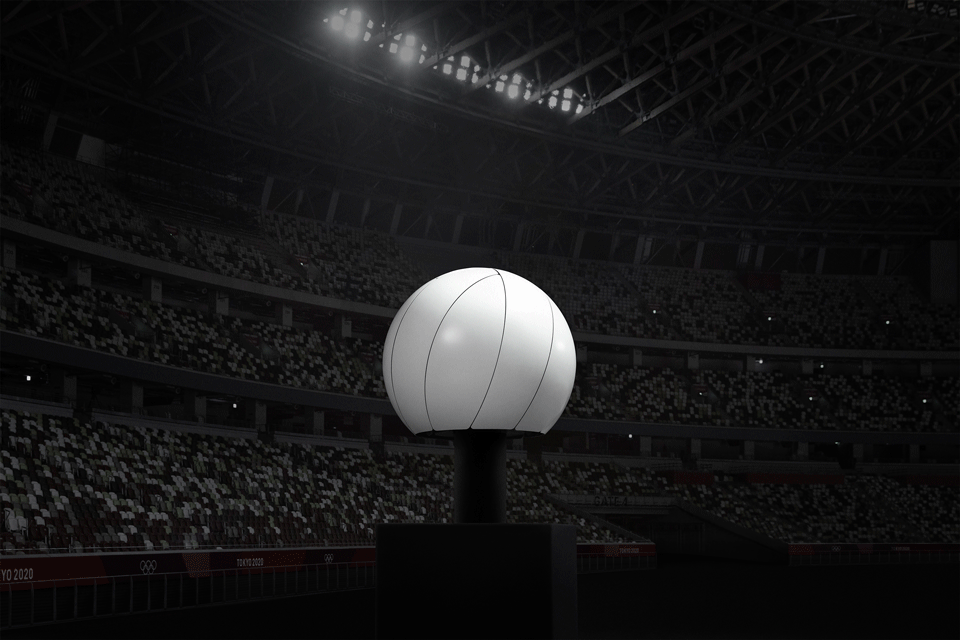

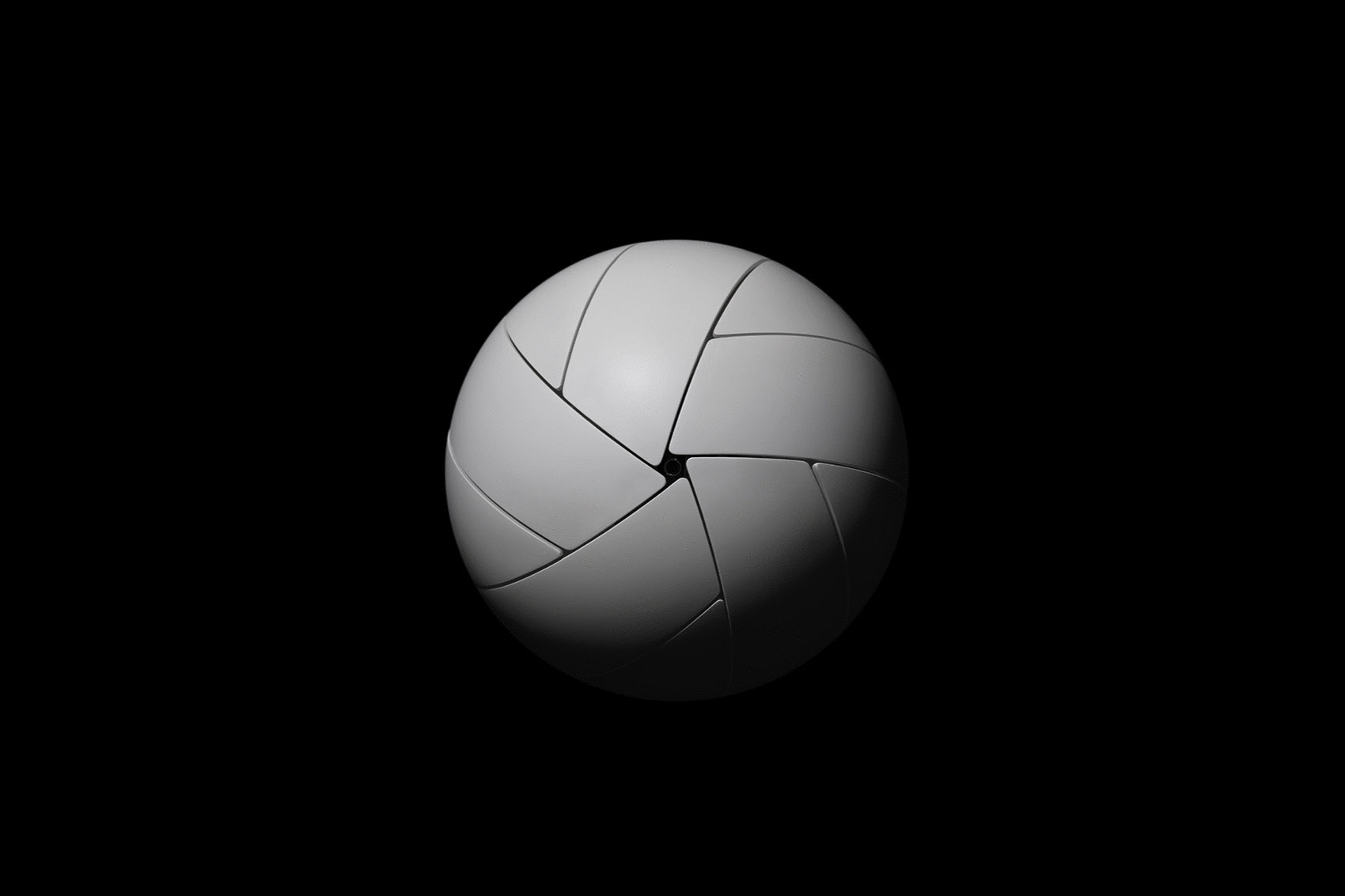

▼球形圣火台形态，Spherical Cauldron form © Hiroshi Iwasaki

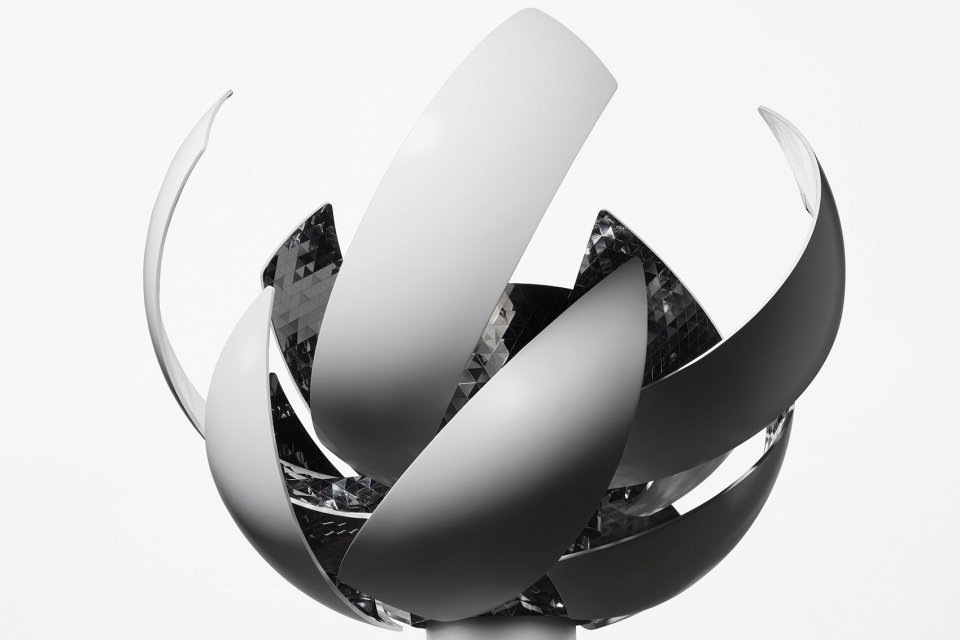

▼球面可分为上下两个部分，每个半球都由五片组成，
the cauldron consisting of upper and lower hemispheres each with five panels © Hiroshi Iwasaki

圣火火种采用了备受关注的新能源 —— 氢能，由福岛县的某设施生产，该设施也是福岛县自2011年东日本大地震后恢复生产的基础设施之一。制氢过程中电解水所需的电力由太阳能发电提供。由于氢能燃烧后的火焰是无色透明的，肉眼不可见，因此为了充当奥运圣火，必须通过化学反应对火焰进行着色，我们看到的黄色火焰的色彩实际上来源于碳酸钠。

Hydrogen energy, garnering attention as next-generation energy, fuels the flames. The hydrogen was produced at a facility in Fukushima Prefecture, which is undergoing recovery from the Great East Japan Earthquake that occurred in 2011. The electricity required for electrolysis of water in the hydrogen production process is provided by solar power generation. Hydrogen burns with a colorless and transparent flame, and is invisible. In order to serve as the Olympic flame, it was necessary to be colored by flame reaction, so sodium carbonate was used for the “yellow” flame.

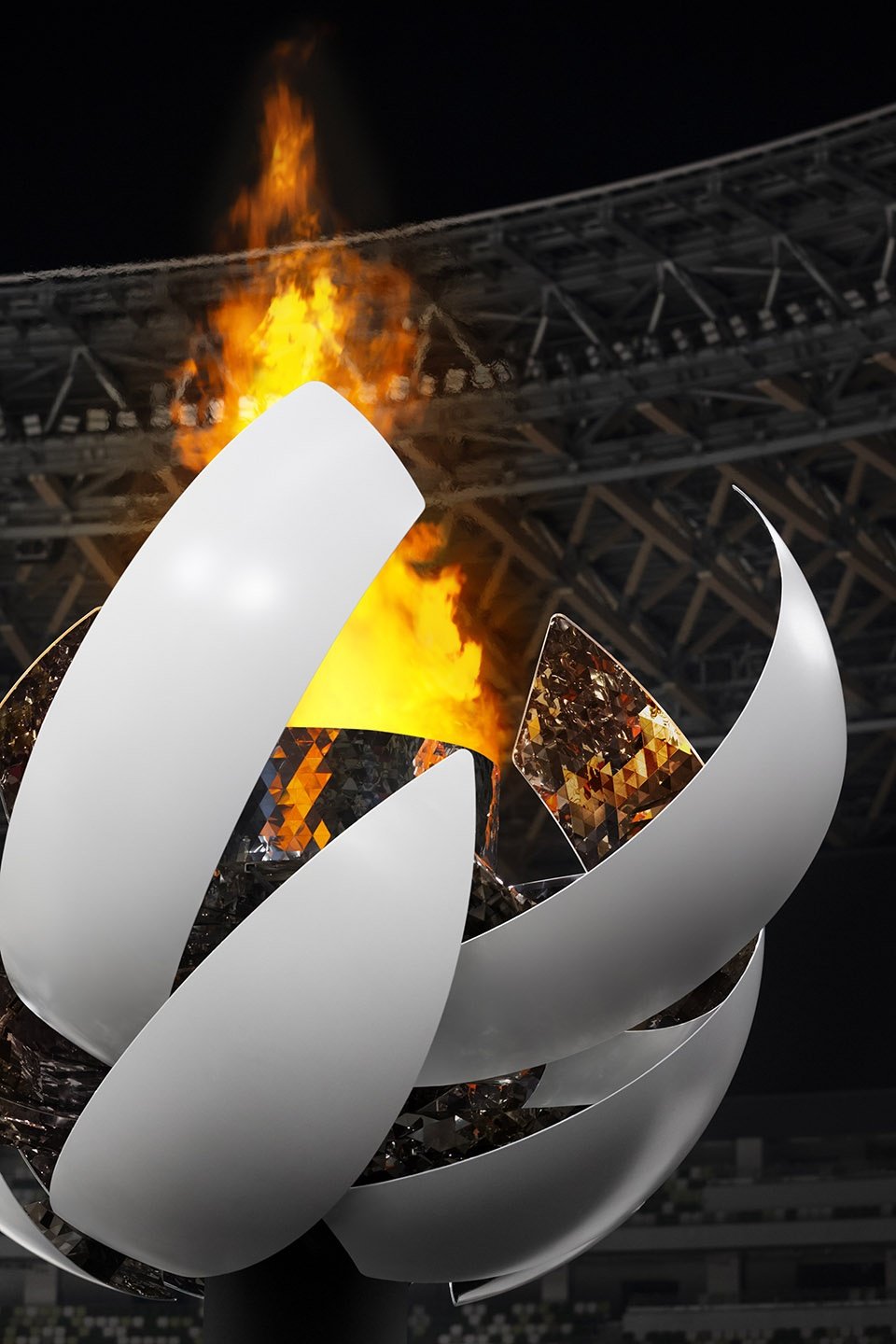

▼黄色火焰的色彩实际上来源于碳酸钠，sodium carbonate was used for the “yellow” flame © Hiroshi Iwasaki

▼火焰细部，detail of the flame © Hiroshi Iwasaki

▼圣火台与火焰细部，
details of the cauldron with flame © Ikki Yamaguchi

为了调整火焰的动态与形状，使其像点燃的柴火一样闪烁，必须反复检查从燃烧器附近喷射出的水溶液的量与方向，这种“设计火焰”的尝试是前所未有的。

The amount and direction of the aqueous solution sprayed from the vicinity of the burner were repeatedly examined along with the amount of hydrogen and the angle of the valve, in order to adjust the movement and shape of the flame to shimmer like firewood was stoked; such an attempt to “design flames” was unprecedented.

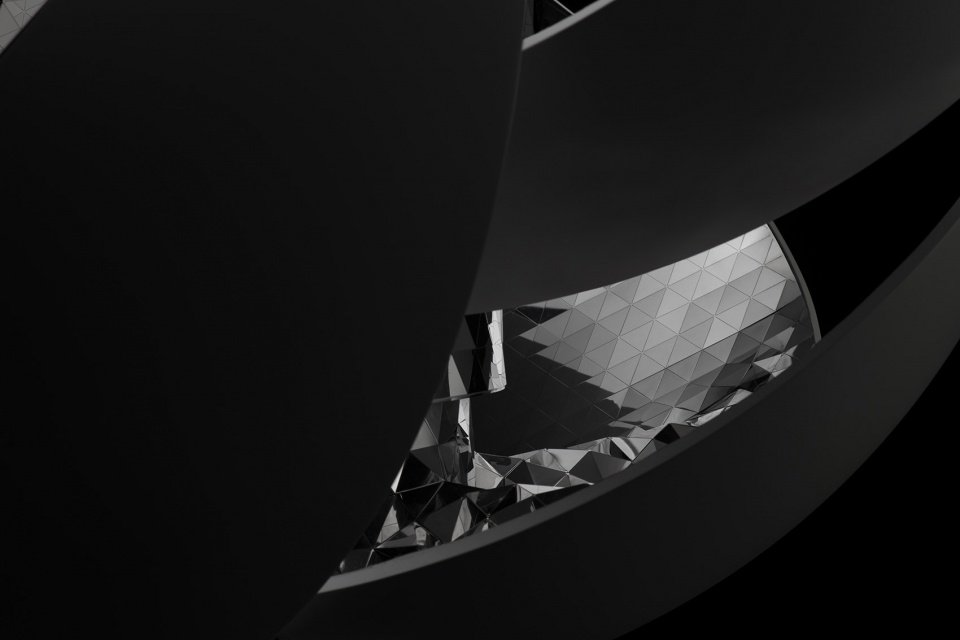

▼球体内部的多边形镜面材质旨在增加光的反射，
The polygonal mirror material inside the sphere is designed to increase light reflection © Hiroshi Iwasaki

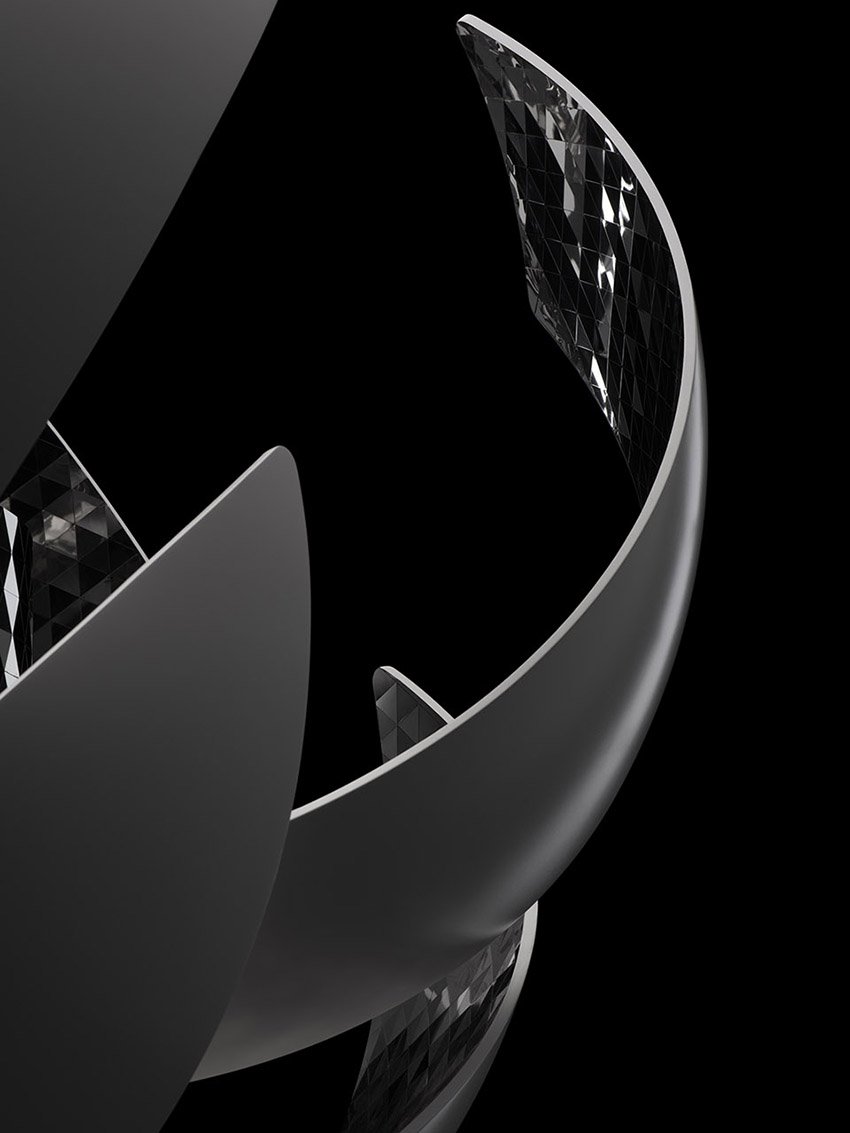

▼圣火台细部，details of the cauldron © Hiroshi Iwasaki

球形的圣火台重2.7吨，改造后直径约3.5米。外面板由10毫米厚的铝板切割而成，每片约重40公斤，采用了日本仅有的几台3500吨压力的专用热压机进行成型并铣削；由于铝在铣削过程中加热会产生变形，所以工作是在超低速度下进行的，同时使用激光持续扫描铝板形状，在需要强度的地方可塑成7毫米厚，在不需要强度的地方则可以减至4毫米，以达到适当减轻重量的目的。圣火台制作的最后一个阶段包括调整、抛光和涂耐热漆，所有这些工序都是由工匠手工完成的。

The cauldron weighs 2.7t, and the diameter after transformation is about 3.5m. The exterior panel, which weighs approximately 40 kg per sheet, was made by cutting out a 10 mm thick aluminum plate; molding it with a special hot press machine capable of applying a pressure of 3500 tons, which only a few exist in Japan; and then milling it. Since distortion occurs when heat is applied during milling, the work was performed at ultra-low speed while consistently scanning the shape using laser, shaping up to 7 mm thickness where strength is required, and down to 4 mm where strength is not required, to accommodate weight reduction. The last phase consisted of adjustments, polishing, and application of heat-resistant paint, all of which were finished by the hands of craftsmen.

▼球形的圣火台重2.7吨，改造后直径约3.5米，The cauldron weighs 2.7t, and the diameter after transformation is about 3.5m © Takumi Ota

圣火台的内部驱动单元要求尽可能紧凑，但高度防水、防火和耐热。球体内表面覆盖了尽可能多的多边形镜面，旨在增强来自会场内灯光以及火焰自身的漫反射。此外，设计团队还对驱动器进行了反复多次的耐热性和风阻测试，并及时组织了调整，以保证在任何条件下都不会出现振动或误差的情况。

The internal drive unit was required to be as compact as possible, yet highly waterproof, fireproof, and heat resistant. By covering the machines with polygonal mirror panels as much as possible, it was intended to create diffused reflection of the lighting from the ceremonies and the flamelight. Tests for heat resistance and wind resistance were repeated, and the apparatus was tuned to prevent any vibration or error even under varying conditions.

▼圣火台不仅代表了太阳本身，还暗喻出太阳所带给人们的活力与能量，
it not only represents the sun itself, but also a metaphor for the vitality and energy that the sun brings to people © Ikki Yamaguchi

▼黑夜中的圣火台宛如一朵绽放的火焰之花，
the cauldron in the night is like a flower of flame © Ikki Yamaguchi

最终，球形圣火台上下穿插的每一片面板之间都能实现高精准度的平滑移动，其中最窄的通过缝隙不到3毫米。可以说，2020东京奥运会圣火台的制作过程。凝聚了日本制造业的精髓。

As a result, a smooth movement with fine accuracy in panels passing each other was realized, operating at less than 3 mm distance at the area of narrowest passing width. The Olympic Cauldron thus created through this journey, crystallizes the essence of Japanese manufacturing.

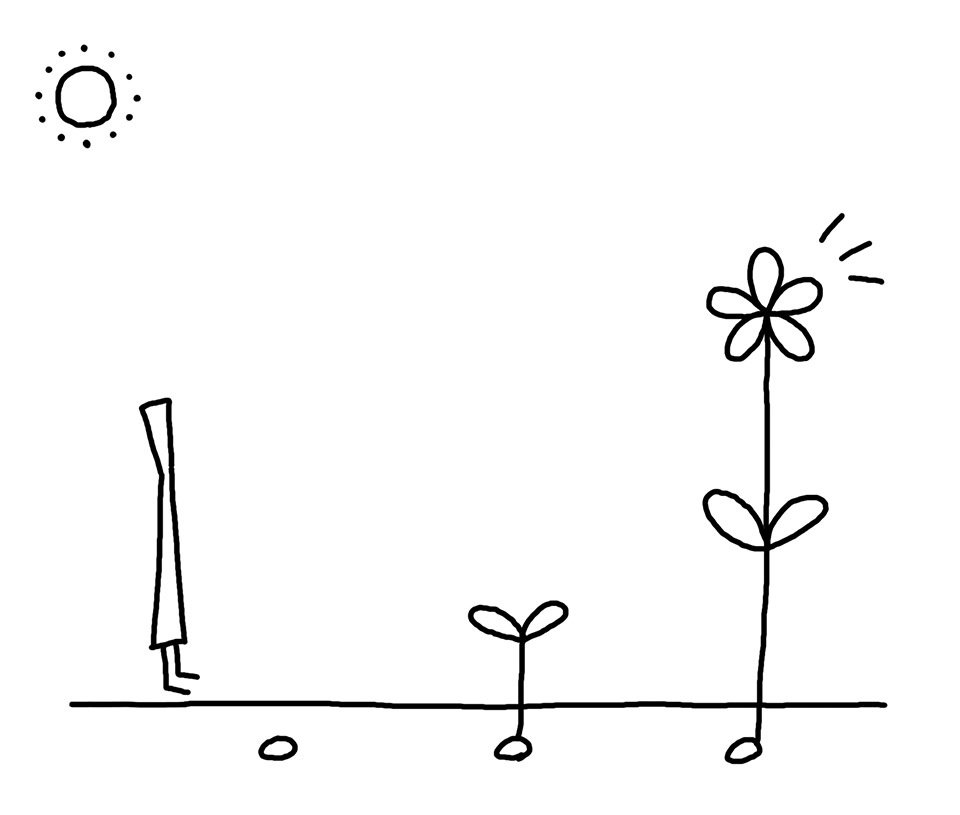

▼设计示意，design concept © nendo

Collaborator : nis, mit, fuk
Photographer : Hiroshi Iwasaki,Takumi Ota, Ikki Yamaguchi
