十分感谢 Paul de Ruiter architects 予gooood分享以下内容。 相关文章更多关于他们：Paul de Ruiter Architects on gooood
Appreciation towards Paul de Ruiter architects for providing the following description:

Langeveld大楼是世界上最具可持续性特点的英亚体育最新资讯帮助中心类英亚体育最新资讯帮助中心之一，被授予了BREEAM杰出证书。 同题参见该正能英亚体育最新资讯帮助中心是由Paul de Ruiter Architects设计。利用风能、光能和地热能为大楼运转提供能量。

The Langeveld building is one of the most sustainable educational buildings in the world with a BREEAM outstanding certificate. This building, designed by Paul de Ruiter Architects, is energy positive and runs on the wind, sun, and earth. 相关文章

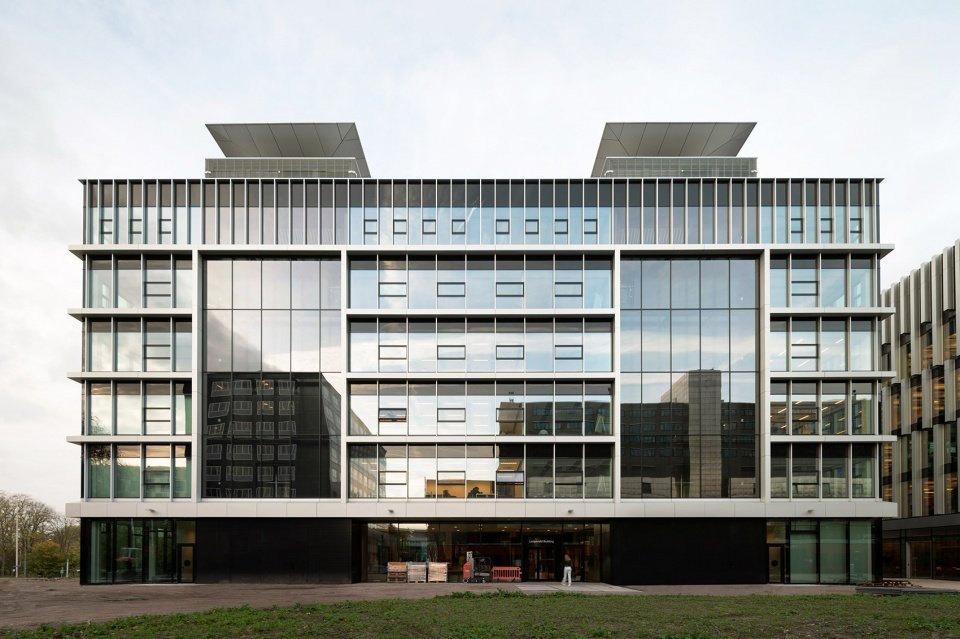

▼英亚体育最新资讯帮助中心全貌，Overall view © Aiste Rakauskaite

大自然赋能
Powered by nature

设计者通过智能且完整的设计策略，为这栋全新的英亚体育最新资讯帮助中心类英亚体育最新资讯帮助中心提供正向的能量。为了实现这一目标，他们采用了全新的、革命性的自然通风原理——依靠风能和太阳能运行。南立面上的两个太阳能烟囱构成了一个垂直的竖井，英亚体育最新资讯帮助中心中部温暖的空气在竖井中进一步升温，并产生上升的气流。在这些竖井的顶部，机翼型的文丘里屋顶使风速提高，在太阳能烟囱上产生了更大的压吸力。这些力将新鲜空气吸入另一个竖井内，在这个充满新鲜空气的竖井顶部，安装有冷水喷淋设施使空气在竖井中下降，从而使新鲜空气在英亚体育最新资讯帮助中心中能够循环流动。这种由自然驱动的空气循环系统能够比传统通风系统减少85%的能源使用，同时提供了更多的新鲜空气。这种方法确保了该多功能英亚体育最新资讯帮助中心能够保持宜人的室内气候。夏天时热量被储存在地下深处以供冬季取暖；冬天时寒气也被储存在地下以供夏季降温。这种对能量的长期储存更进一步降低了能耗。屋顶的太阳能电池板也保证了英亚体育最新资讯帮助中心中能量的正向转化。

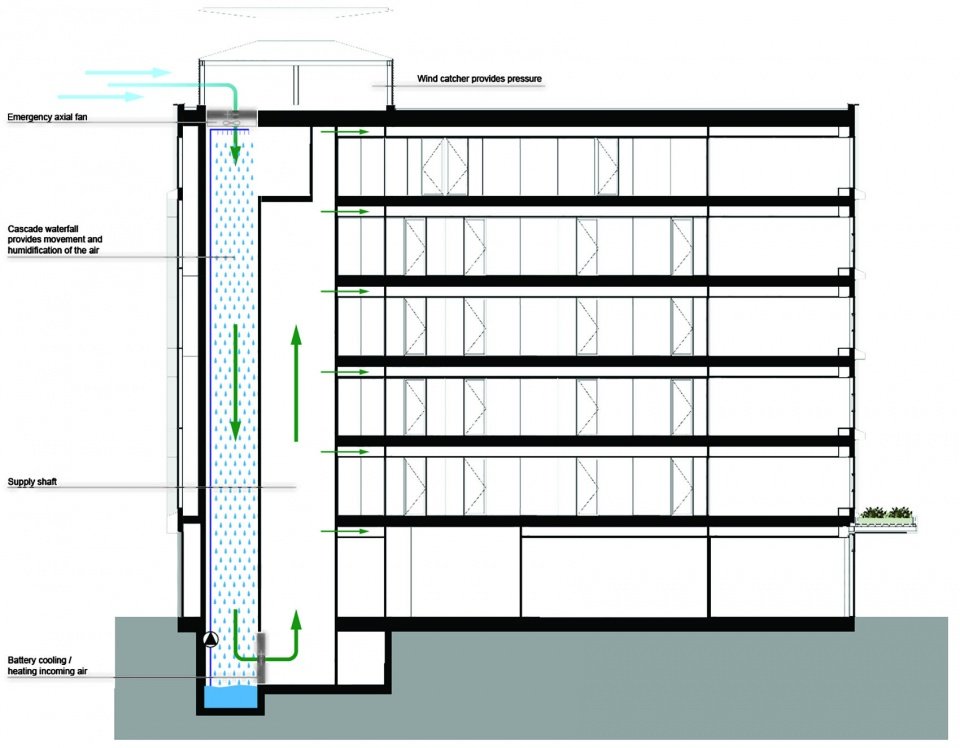

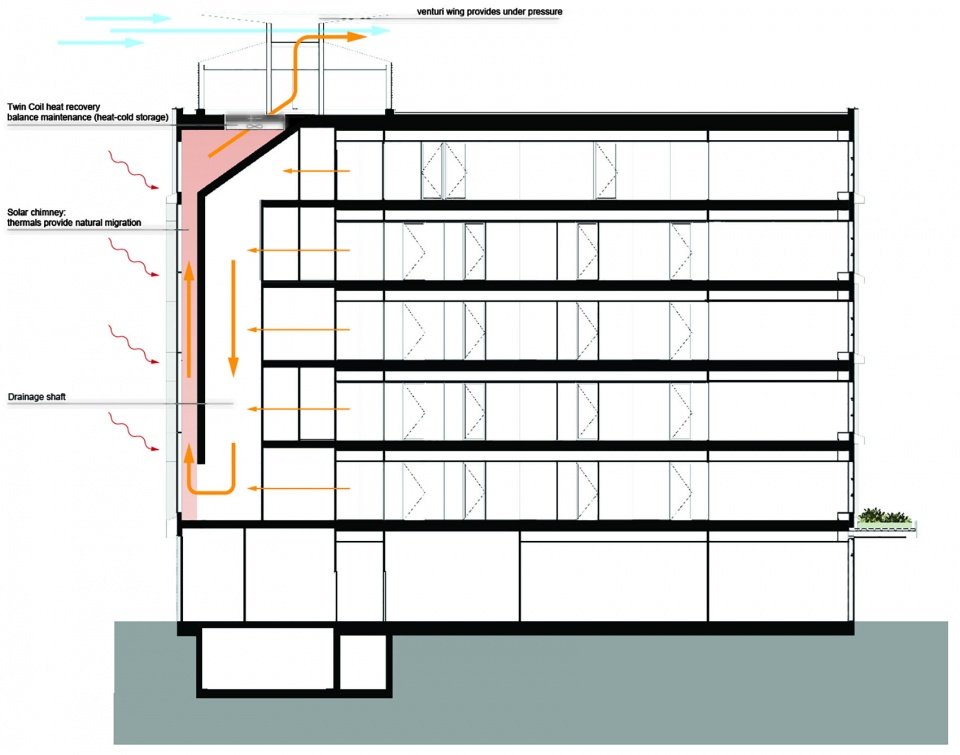

▼进风原理图，incoming air principle diagram © Paul de Ruiter Architects

▼排水原理图，drainage principle diagram © Paul de Ruiter Architects

Through a smart and integral design strategy, the new educational building is energy-positive. To achieve this, a revolutionary new natural ventilation principle has been applied, which runs on wind and solar energy. The two solar chimneys on the south façade create a vertical shaft in which the warm waist air will heat up even further creating an upward draft. On top of these shafts, a venturi roof, aircraft-winged shape, forces the wind to accelerate and therefore creates pressure sucking even harder on the solar chimneys. These forces pull fresh air into another vertical shaft. On top of this fresh air shaft, a cold-water shower forces the air to drop down in the shaft creating a constant fresh flow of air in the building. This naturally driven system uses 85% less energy than a traditional ventilation system while providing much more fresh air than is usual in buildings. This ensures a pleasant indoor climate for the multifunctional building. The heat in de summer gets stored in the deep earth to be used to heat in the winter, and in de winter, the cold gets stored in the earth to cool in summer. This long-term storage even further reduces energy. The solar cells on the roof make the building energy-positive.

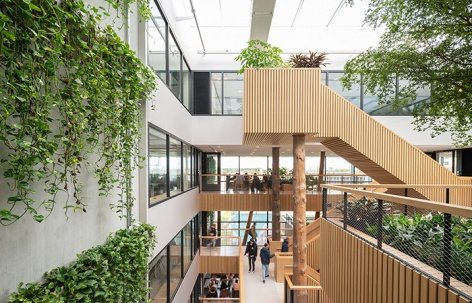

▼将自然引入内部空间，Bringing nature into the interior space © Aiste Rakauskaite

英亚体育最新资讯帮助中心与自然的结合
Architecture meets nature

英亚体育最新资讯帮助中心的透明外立面与周围校园产生了自然的联系，使日光能够深入到英亚体育最新资讯帮助中心内部。大量绿色植物和木材的使用——包括由真实树干支撑的中庭结构，打造了一个温暖而令人愉悦的空间，人们在其中能够享受来自自然的新鲜空气。英亚体育最新资讯帮助中心中的一个特色是中庭中木质的树屋组成的绿色英亚体育最新资讯帮助中心环境。通过亲近自然和生物的设计，将大自然引入室内，这样，创造了一个关怀英亚体育最新资讯帮助中心福祉、有益身心健康的环境。

The building’s transparent facades create a natural connection with the surrounding campus and allow daylight to penetrate deep into the building. Lots of greenery and wooden detailing, including the atrium construction made of real wooden tree trunks, create a warm and pleasant experience and natural fresh air. A characteristic feature is the green study environment and the wooden tree house in the atrium. By using a biophilic design, nature is brought inside. This way the university is creating an environment that contributes to the well-being and health of the students.

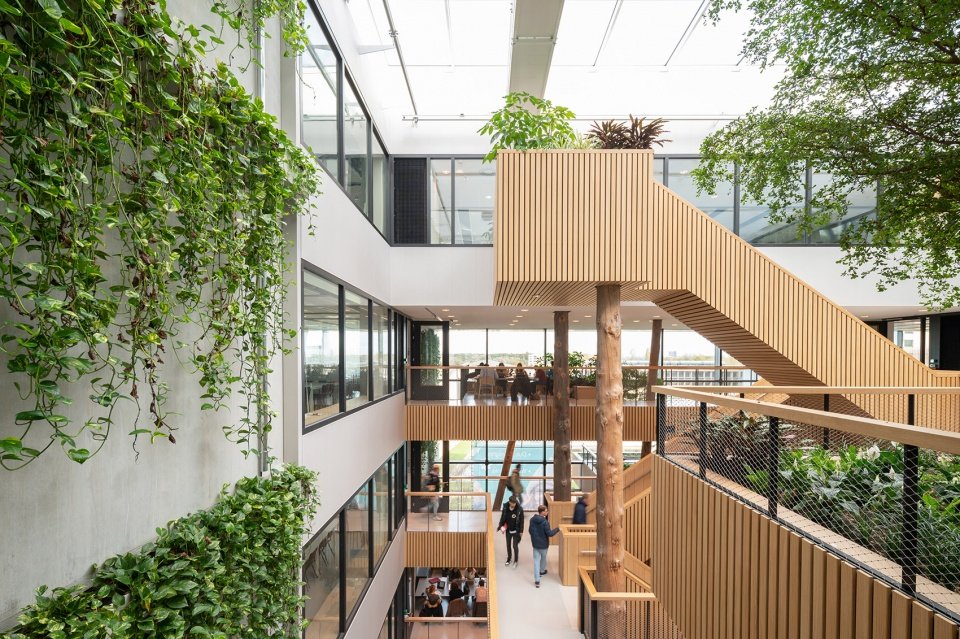

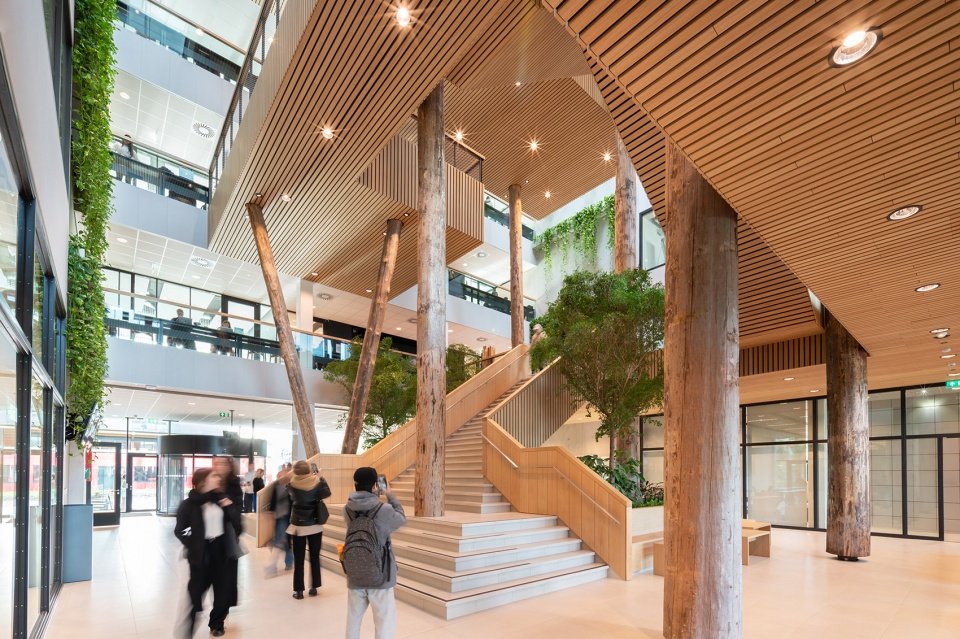

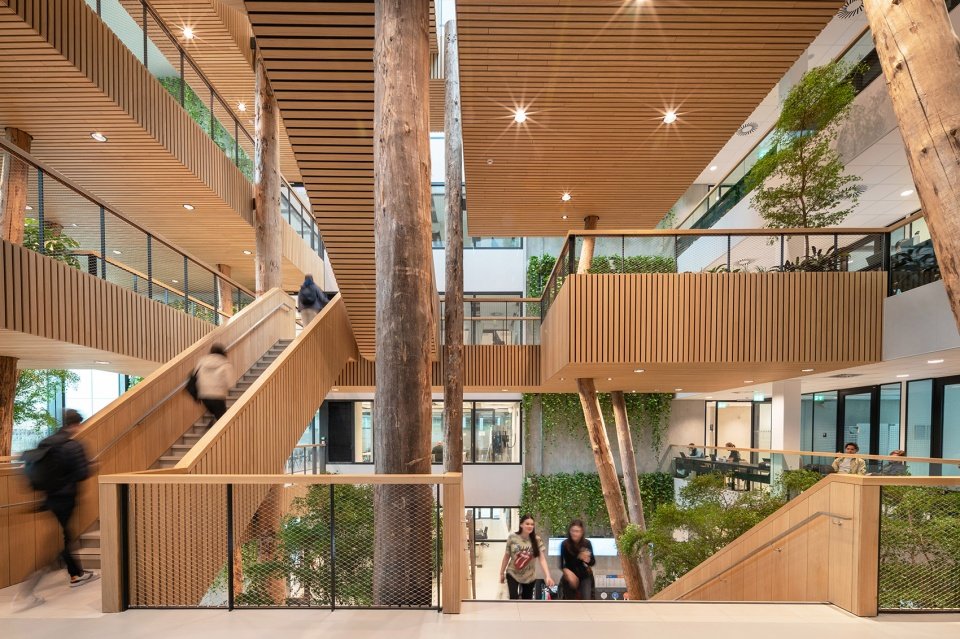

▼由真实树干支撑的中庭结构，The atrium construction made of real wooden tree trunks © Aiste Rakauskaite

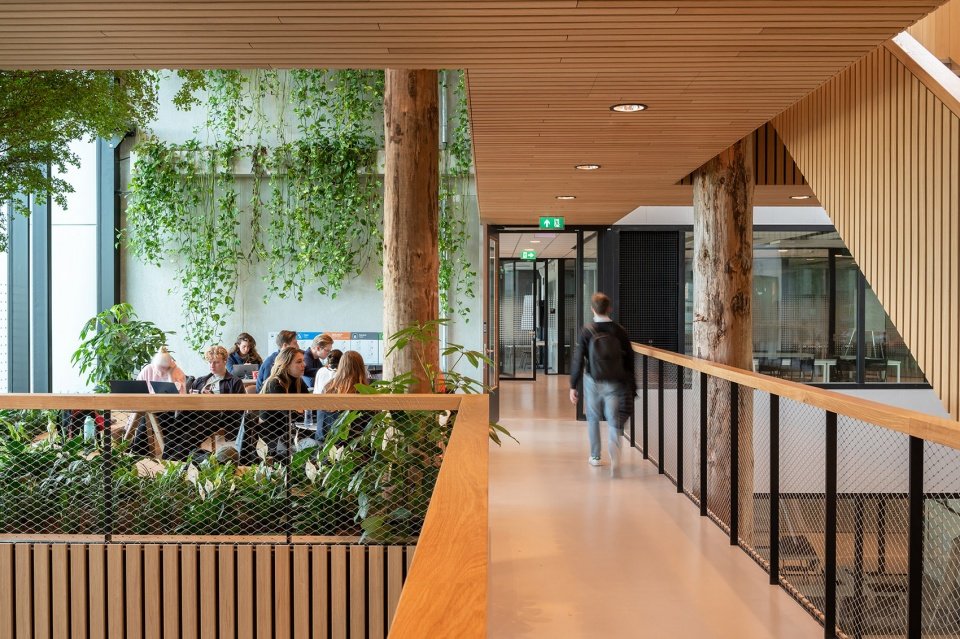

▼大量绿色植物和木材的使用，Lots of greenery and wooden detailing © Aiste Rakauskaite

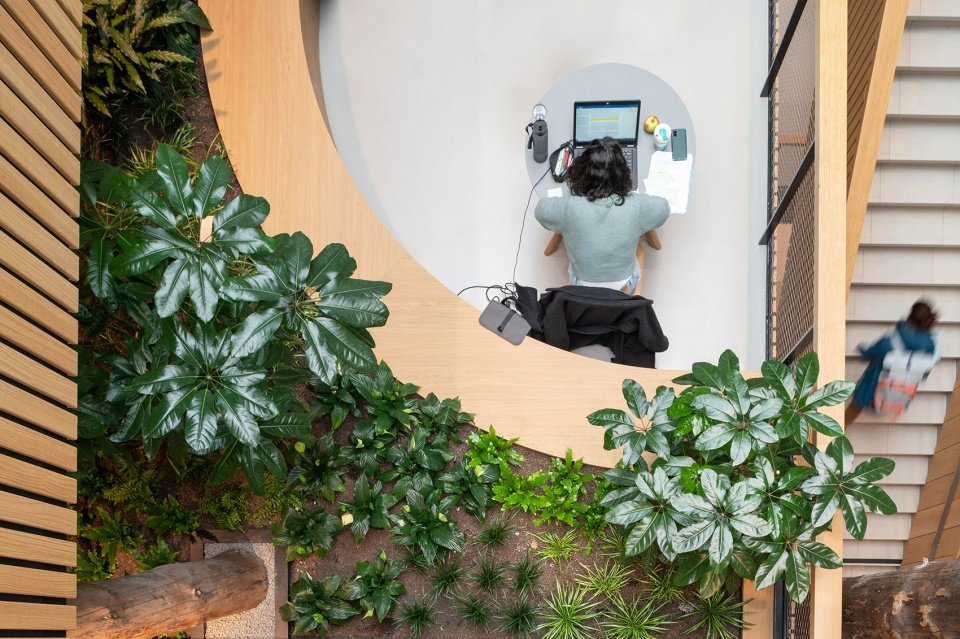

▼木质的树屋组成的绿色英亚体育最新资讯帮助中心环境，The green study environment and the wooden tree house in the atrium © Aiste Rakauskaite

循环的英亚体育最新资讯帮助中心英亚体育最新资讯帮助中心
Circular educational building

这栋全新的大学英亚体育最新资讯帮助中心使用了循环的建造方式。这意味着尽可能多的使用了回收材料。设计团队使用了来自其他英亚体育最新资讯帮助中心物拆除的材料，其中大部分都是生物基的。新教学楼中使用的所有材料都被做了标识，并记录在数字材料库中，这个数字材料库将为未来对潜在材料的再利用提供参考和依据。这项举措也成功了为该英亚体育最新资讯帮助中心赢得了BREEAM杰出认证。根据世界领先的可持续性评估标准，在荷兰只有不到1%的英亚体育最新资讯帮助中心能够获得这一顶级资质。

The new university building is circular in construction. This means that as much as possible recycled materials have been used. Demolition materials from other buildings are reused, and the material used are biobased. All the materials used in the new educational building have been given an identity which is recorded in a digital material passport. This passport will give insights into the future material potential for reuse. This has resulted in a BREEAM- outstanding certification. Only less than 1% of buildings in the Netherlands have this top qualification according to the world’s leading sustainability assessment method.

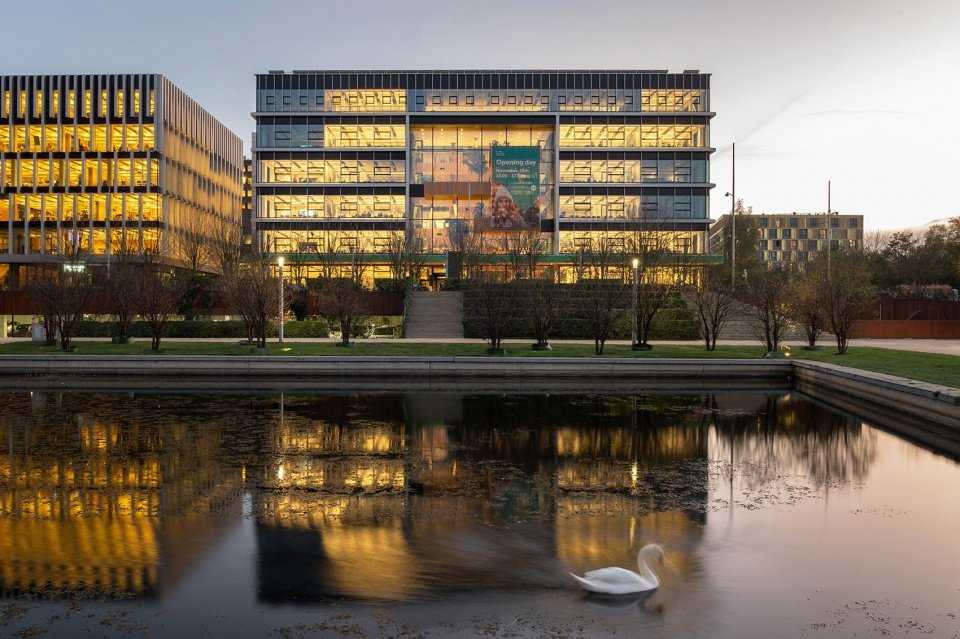

▼夜幕中的教学楼，Night view © Aiste Rakauskaite

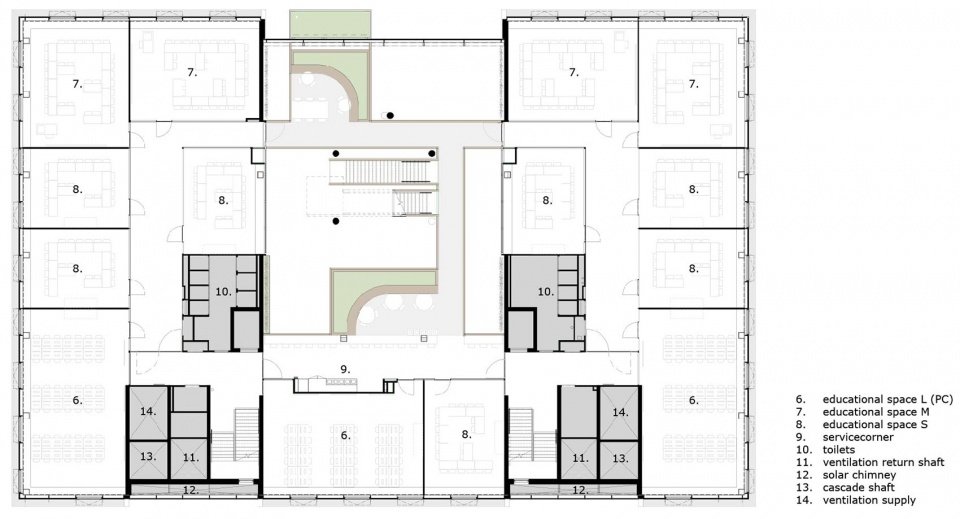

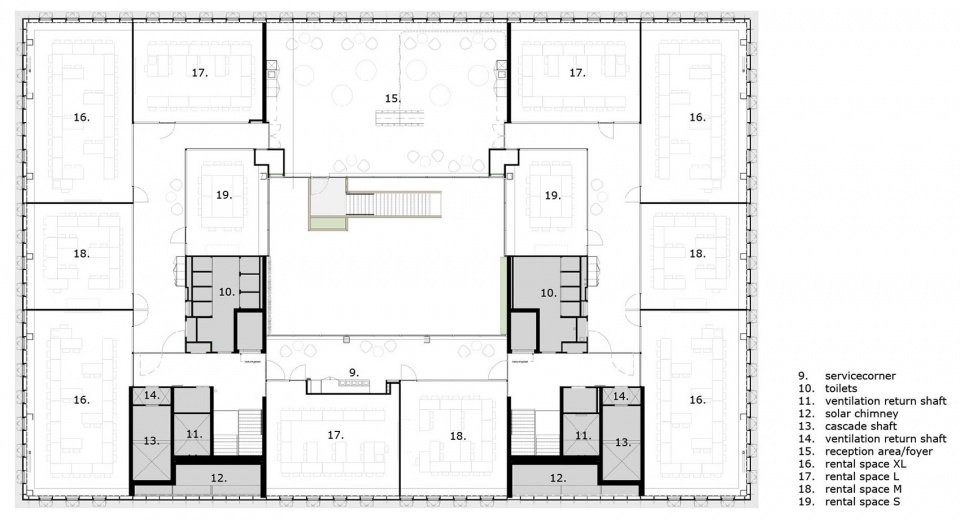

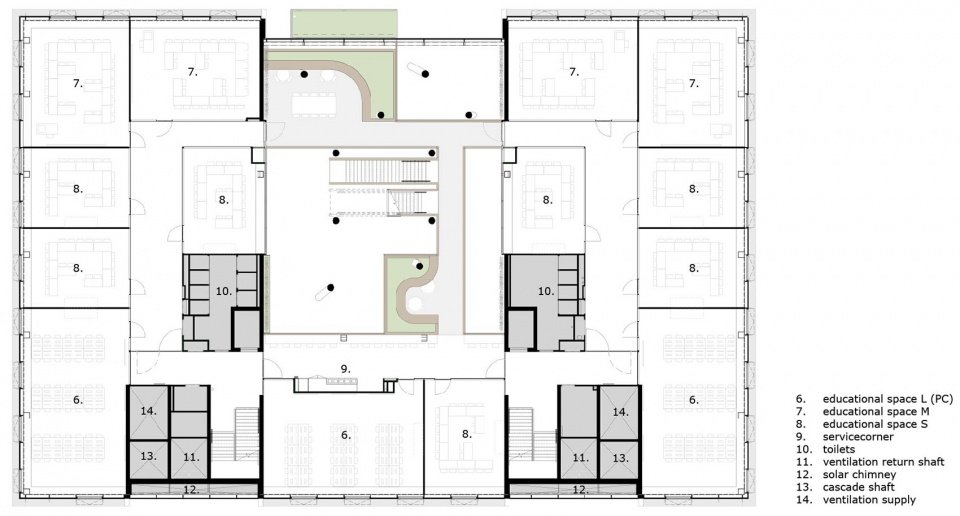

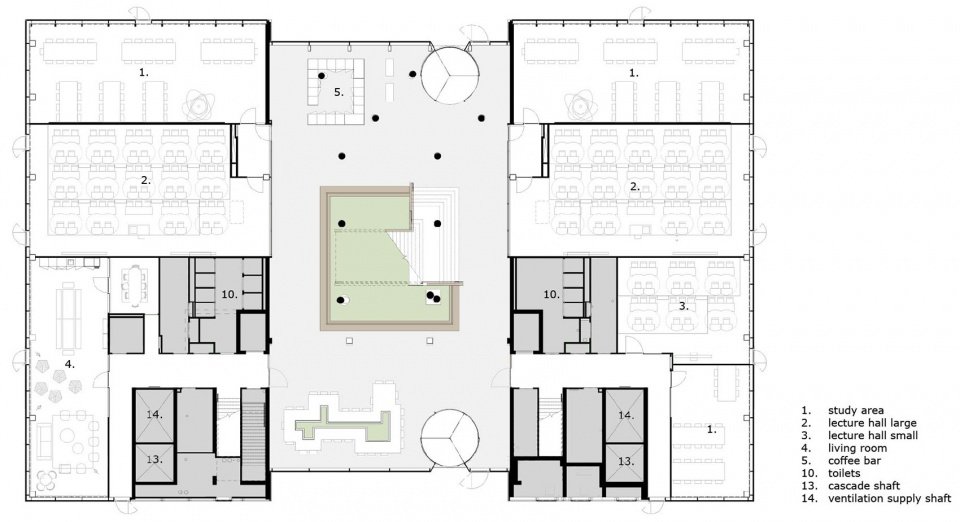

▼首层平面图，ground floor plan © Paul de Ruiter Architects

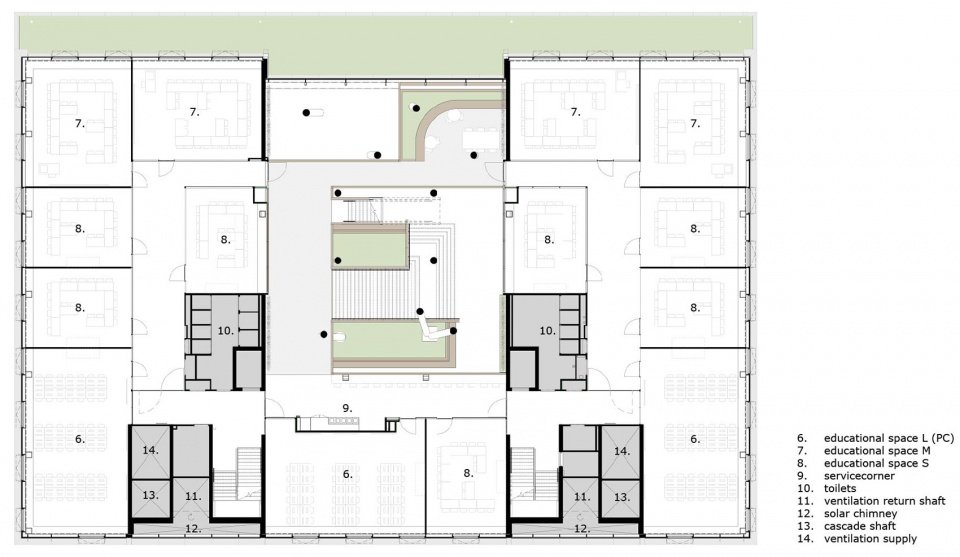

▼二层平面图，first floor plan © Paul de Ruiter Architects

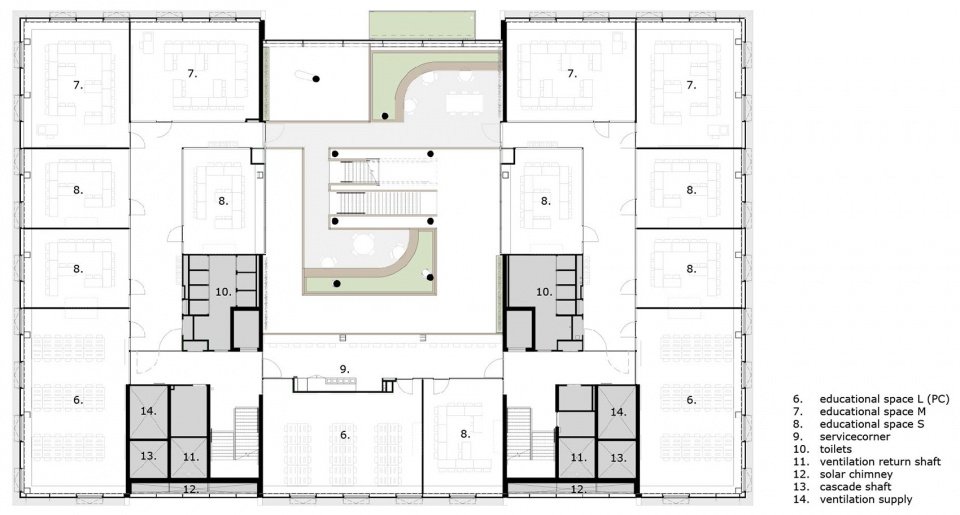

▼三层平面图，second floor plan © Paul de Ruiter Architects

▼四层平面图，third floor plan © Paul de Ruiter Architects

▼五层平面图，forth floor plan © Paul de Ruiter Architects

▼六层平面图，fifth floor plan © Paul de Ruiter Architects

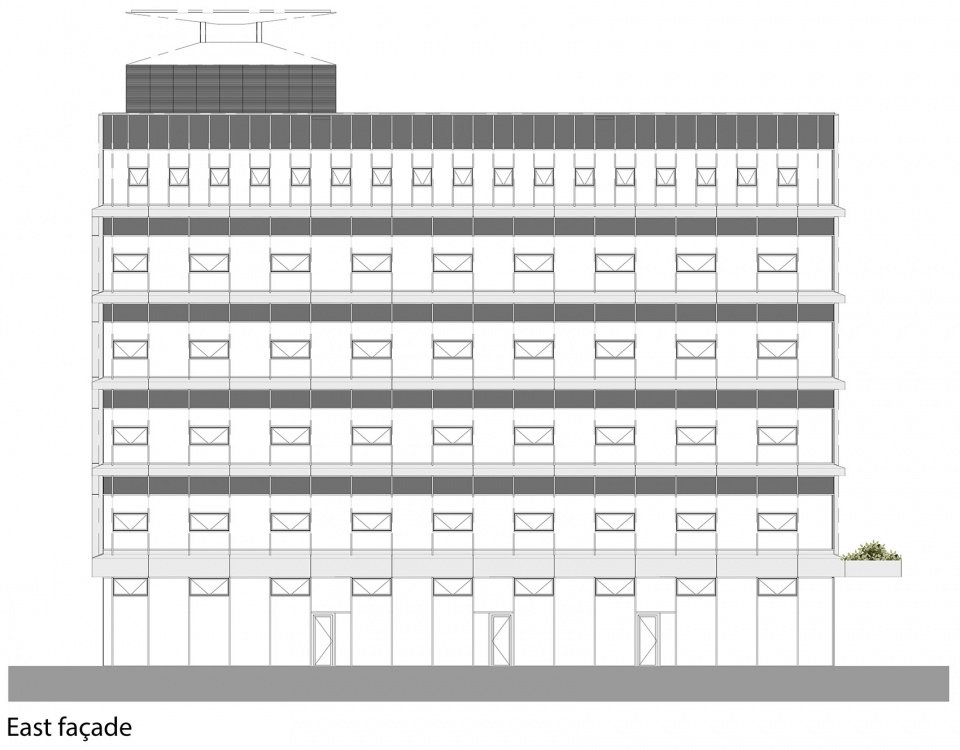

▼东立面，east facade © Paul de Ruiter Architects

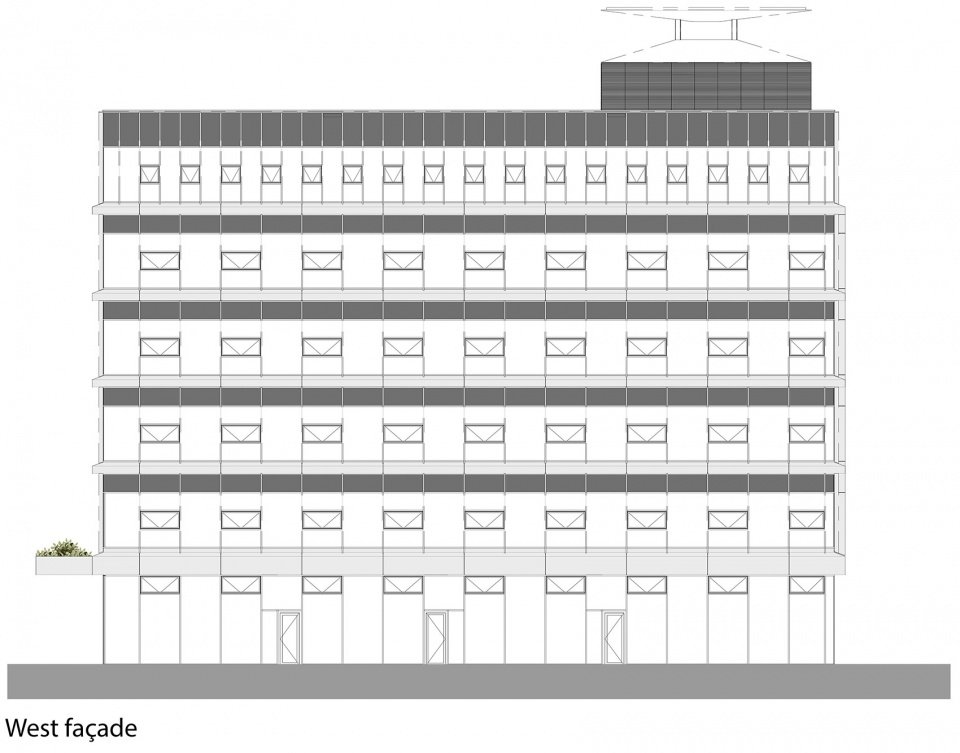

▼西立面，west facade © Paul de Ruiter Architects

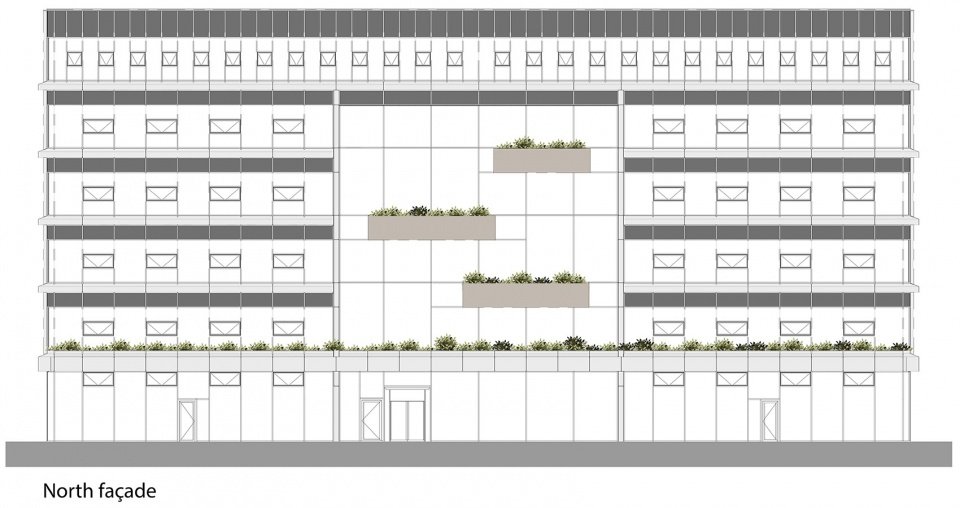

▼北立面，north facade © Paul de Ruiter Architects

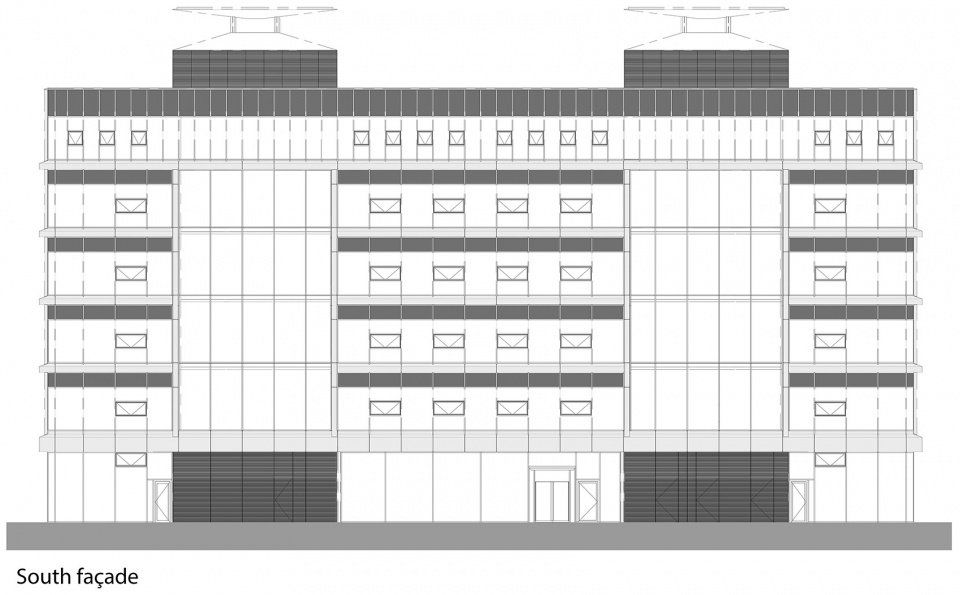

▼南立面，south facade © Paul de Ruiter Architects

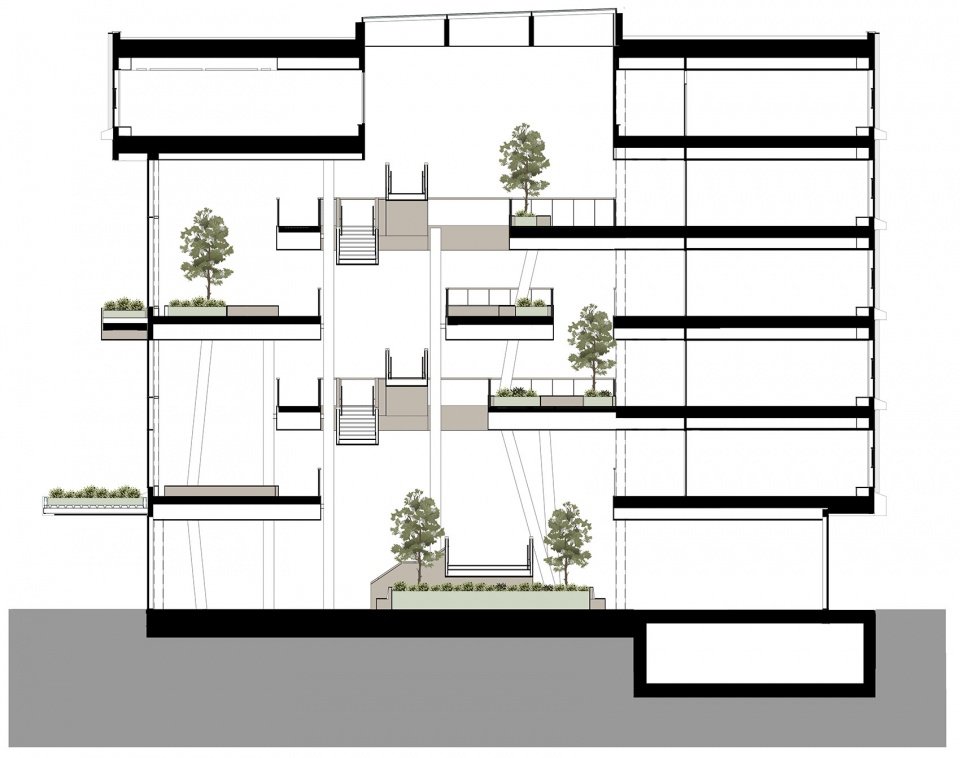

▼剖面1，section 1 © Paul de Ruiter Architects

Address: Campus Woudestein, Kralingse Zoom, Rotterdam
Total floor area: 8.748 m²
Project description: multifunctional educational building
Stary of construction: March 2021
Sustainability: BREEAM Outstanding
Client: Erasmus University Rotterdam
Tenant: Erasmus University Rotterdam
Project architect: Paul de Ruiter
Project team: Marieke Sijm, Matthijs Engele
Contractor: BAM Bouw& Techniek Projecten
Construction consultant: BAM Advies en Engineering
Building services engineering: Halmos Adviseurs
Sustainability consultant: LBP|Sight
Structural engineering: LBP|Sight
Interior and loose furnishing: Marina van Goor
Landscape architect: Buro Harro Landschapsarchitect
Projectmanagement: abcnova
