项目位于一个中空的旧厂房内部。 相关文章其设计目的是在当下工作与居住过度单一化的环境下，将这个城市的废弃空间改造成一个多元有趣的居住空间。MISA工作室业主是Rokid人工智能英亚体育官网玩法说明创始人，设计之前，业主提的要求很简单：一个木作工作坊带临时居住点，能养一条大狗，可以停放乌拉尔（一种三轮摩托车）。这个看似没有要求，给予英亚体育官网玩法说明极大发挥空间的项目，其实在实际操作过程中挑战难度更大。这需要我们对业主的背景、性格甚至生活习惯，都要有更多维度的了解。

The project is a high-level personal studio of an artificial intelligence company, located in a hollow old factory building. Its design is to be in the moment work and living in a single unified environment will be the city’s abandoned space into a multi-dimensional interesting living space.Owners demand is very easy. The design of a wood workshop with a temporary residence. It can support a large dog, and you can park Ural (a motorcycle)

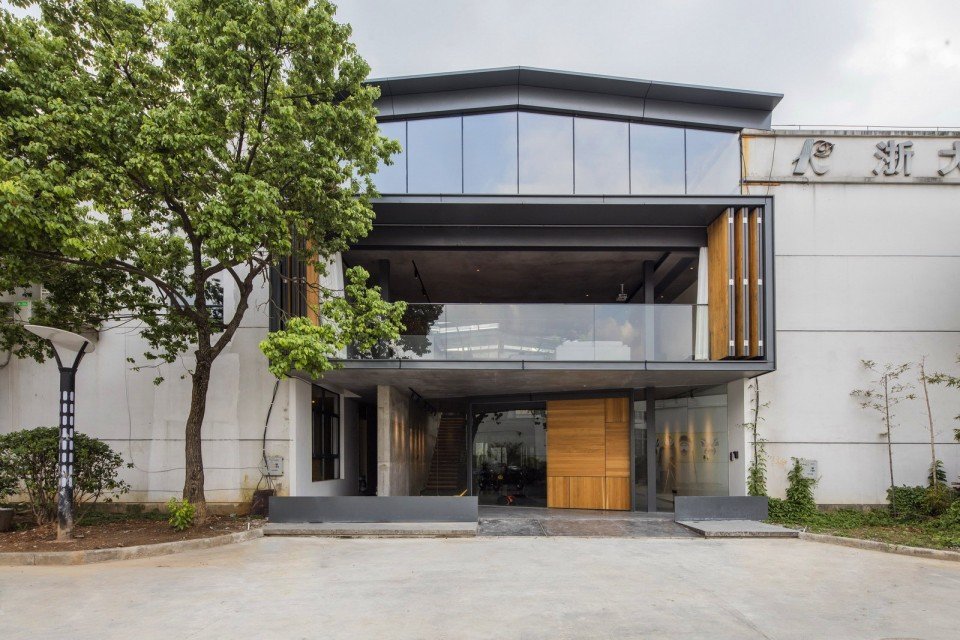

▼英亚体育官网玩法说明外观，External View

原有空间间隔与两幢厂房之间，是一个运货通道，顶面留着旧有的钢结构轻质顶棚。房子原来的结构、空间、用途，不符合现有定位和设计要求，如何在重塑的空间形式中呈现新的居住体验？这对整个设计至关重要。英亚体育官网玩法说明首先在原有适用二层的固定层高中插入一个盒形空间，分割出三层功能空间，并在空间中融入了两个庭院。

The original space between the two plants and the space is a shipping channel, the top left the original lightweight steel roof. The original structure of the house, space, use, does not fit existing design requirements. How to reshape the form of space in a new living experience is critical to the overall design. Designers insert a box-shaped space divided into three functional space in the original application for the second floor of the fixed-level high school , and in the space into the two courtyards.

▼ 盒形空间分割出三层功能空间，Designers insert a box-shaped space divided into three functional space

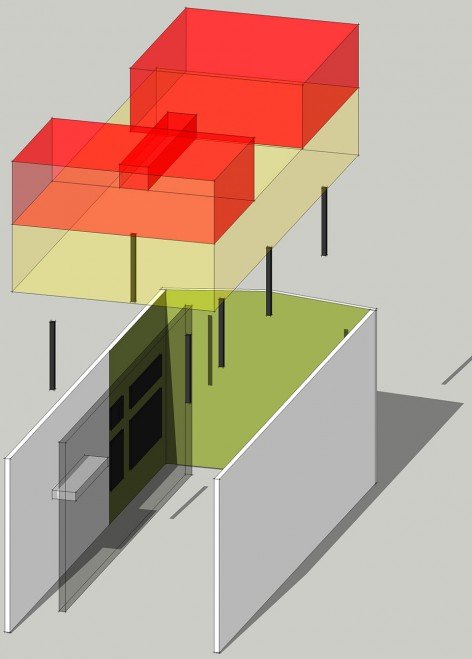

▼轴测图，Axonometric drawing

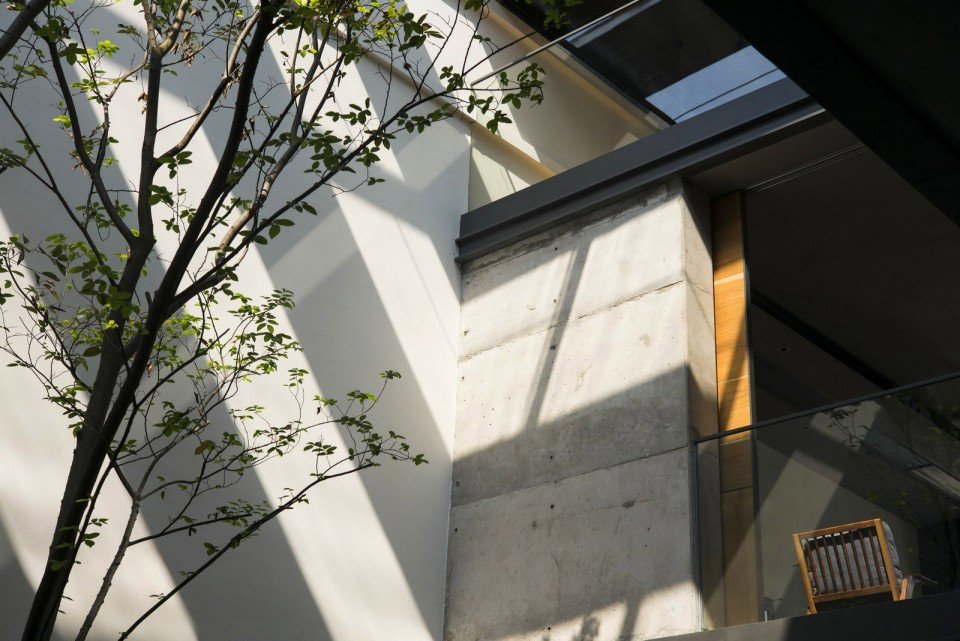

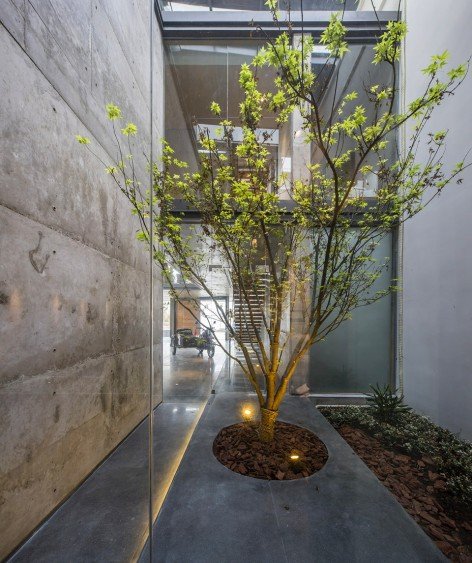

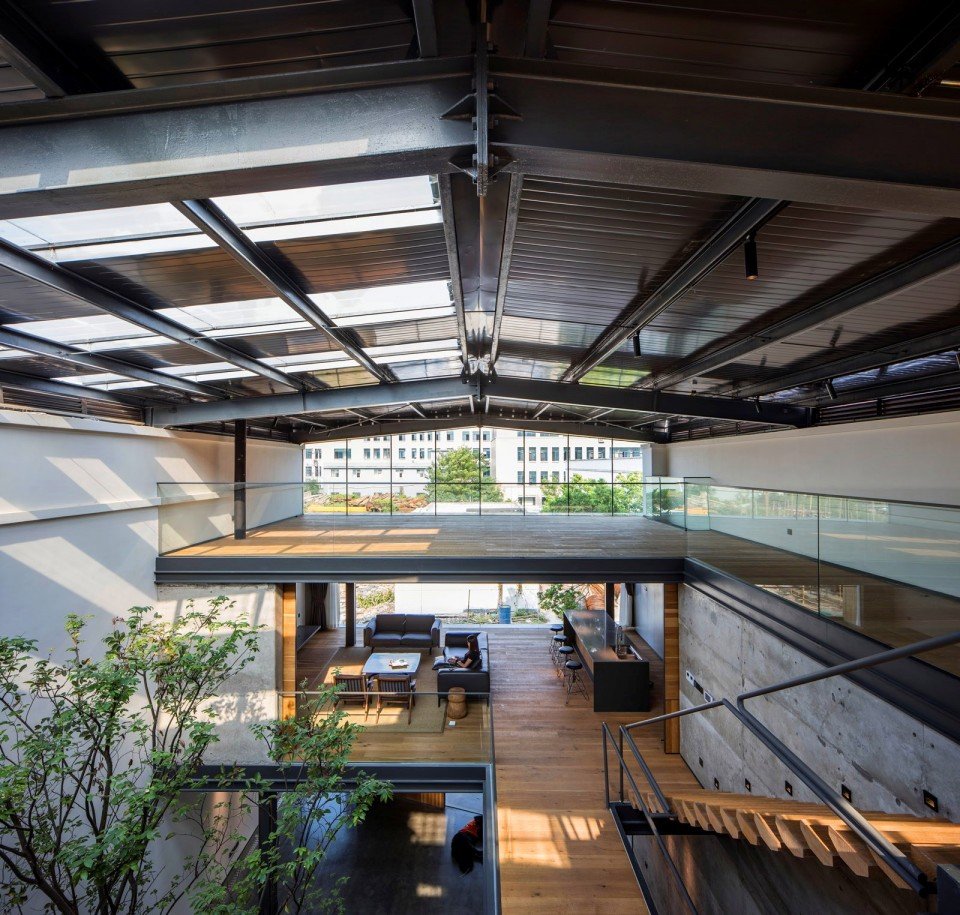

英亚体育官网玩法说明希望创造一种体验感丰富且具有生命力的空间住宅。英亚体育官网玩法说明周边从外部看缺乏良好的环境氛围，但是进入内部，你就会发现，由于有中庭的存在，整个空间感到非常明亮，这个内部庭院占据了房子三分之一的面积。它提供了一种与自然的接触，并揭示出自然的各个方面，是工作生活的中心，也是一个引换正在现代城市日趋消逝的光、风、雨等自然物的一种装置。天光渗入院中，在墙上和院子里投下深深的阴影。

Designers want to create such a rich experience of residential space. There is no good environment around this building from the outside. But into the interior will find it , because there are very bright atrium and another internal courtyard occupied the entire one-third area. It provides a contact with nature, and reveals all aspects of nature, is the center of work and life, but also a device replaces the disappearing light, wind, rain and other natural objects in the modern city . Sky light infiltrates into yard, casting a deep shadow on the wall and yard.

▼ 体验感丰富且具有生命力的空间住宅，Designers want to create such a rich experience of residential space

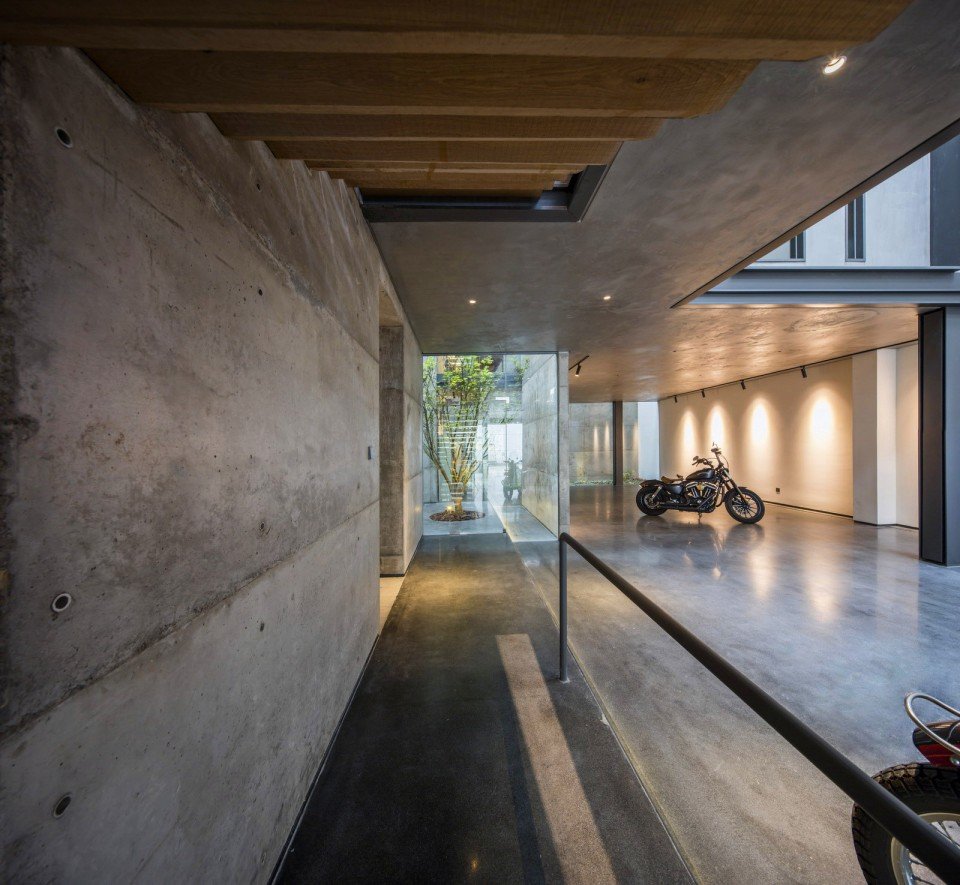

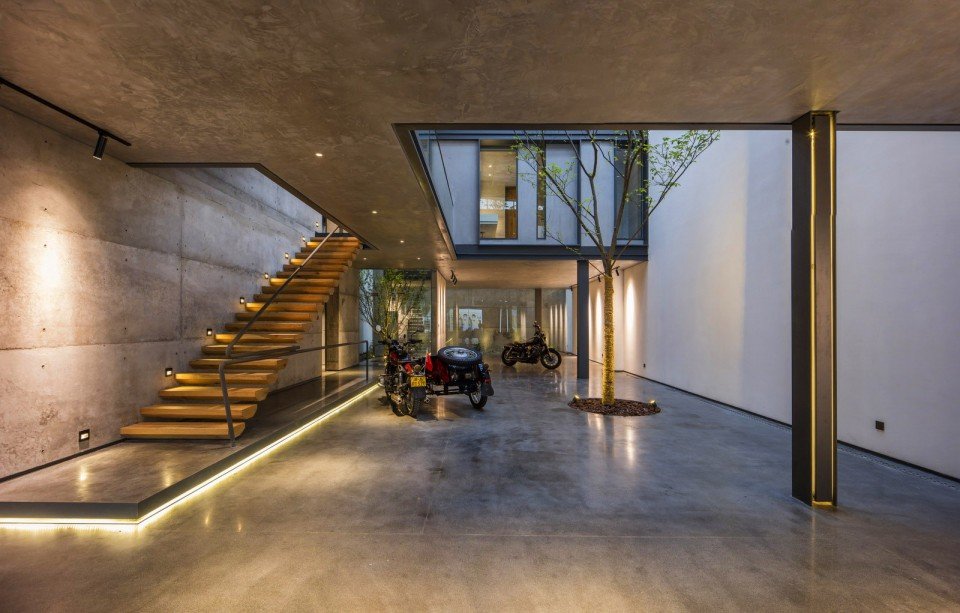

室内空间室外化，自然通过光庭被引入住宅内部，新的生活形式也由此承担了严峻的一面。“在这种情况下，英亚体育官网玩法说明认为与自然接触比生活便利更为重要。”一楼主要功能为木工作坊，整个室内不设任何分割空间，英亚体育官网玩法说明的结构柱体和清水混凝土直接构成空间最主要的视觉元素。通过一扇巨大的自动移门，乌拉尔可以直接开入内部空间。这个设计给木制工作区提供了一个可变灵活的工作空间。

Indoor space outdoor, natural through the Light Court was introduced into the interior, the new form of life has also assumed a serious side. “In this case, the design that contact with the natural life is more important than convenience.” The main function of the first floor for the wood workshop, the entire space without any partition space, the structure of the column and the concrete directly constitute the main visual elements of space. Through a huge automatic sliding door, Ural can be directly into the internal space, and for the wooden work area provides a flexible workspace.

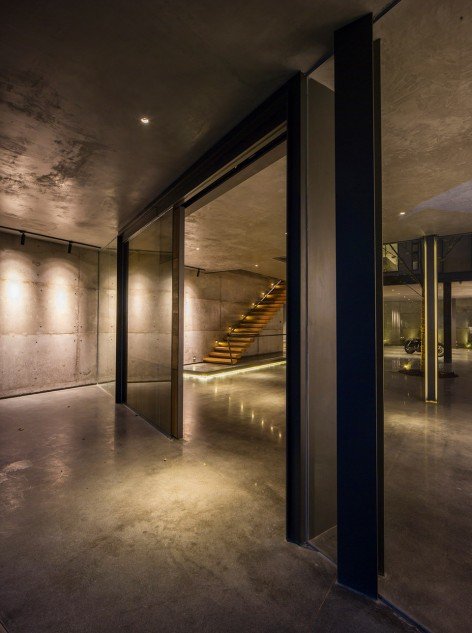

▼一层空间， the first floor

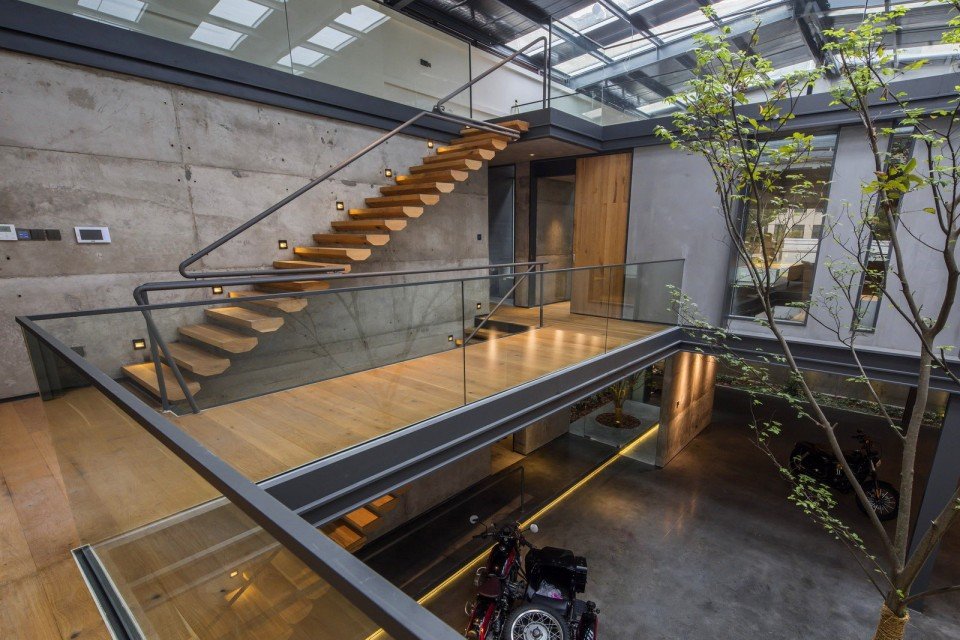

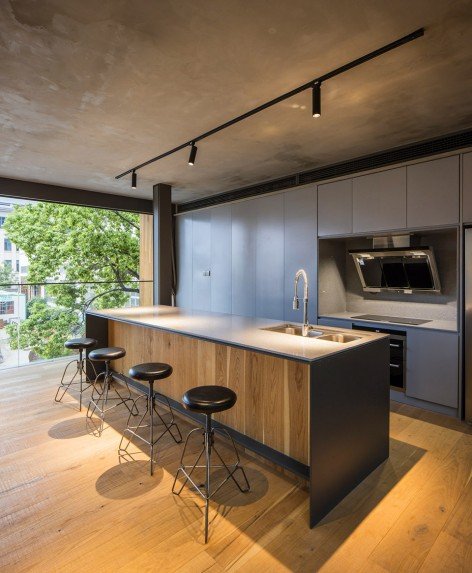

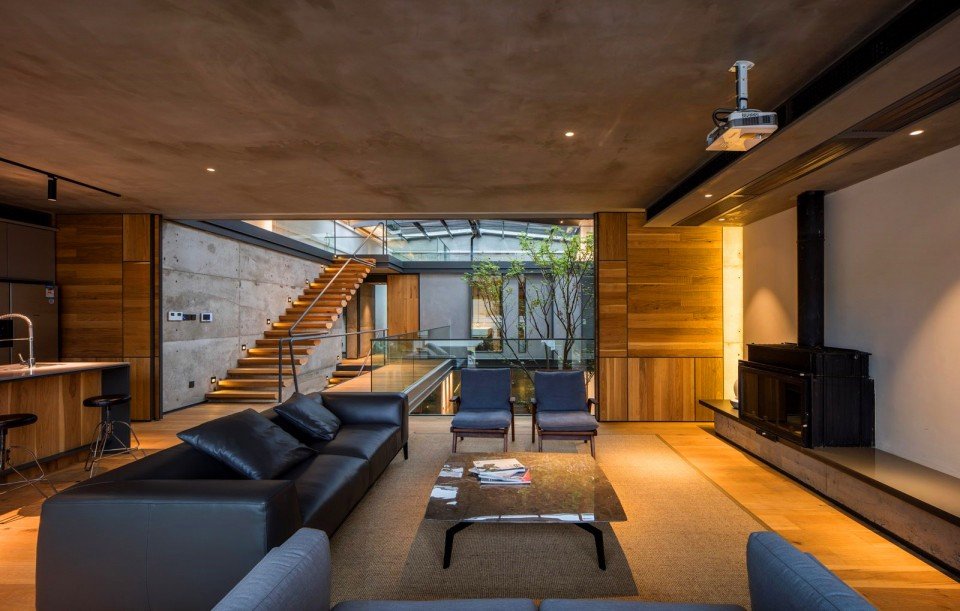

二楼是会客厅和开放式厨房以及起居室，起居室、会客室和开放式厨房不同的功能区在这里有机组合，一楼楼梯和二楼开场式走道将两个功能空间连接了起来，会客区的对外隔断可移动打开。连通了室内中庭和室外视线景观。

The second floor is the reception room and open kitchen and living room.Living room, reception room and open kitchen different functional areas here are
organic combination .The first floor staircase and the second floor opening walkway will be connected to the two functional space. The external area of the reception area can be moved open, connecting the indoor atrium and outdoor view of the landscape.

▼ 二层空间， the second floor

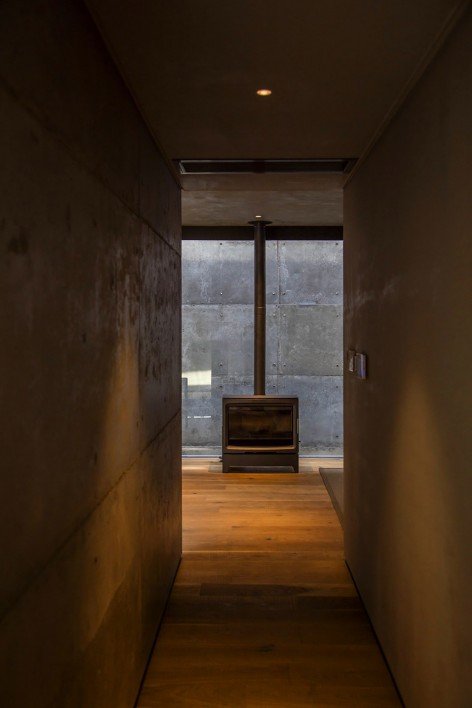

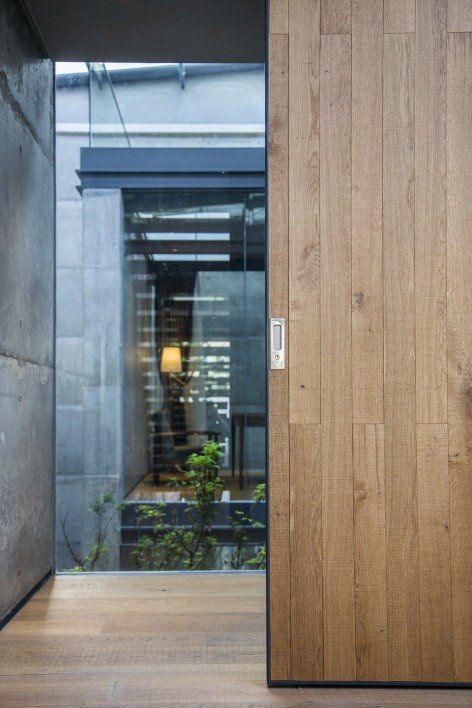

卧室移门打开后，通过一个内庭院，进入最私密的生活空间，在小空间里拥有更多丰富的空间体验。

Bedroom door opened, through an inner courtyard, into the most intimate living space, in a small space with more rich empty experience.

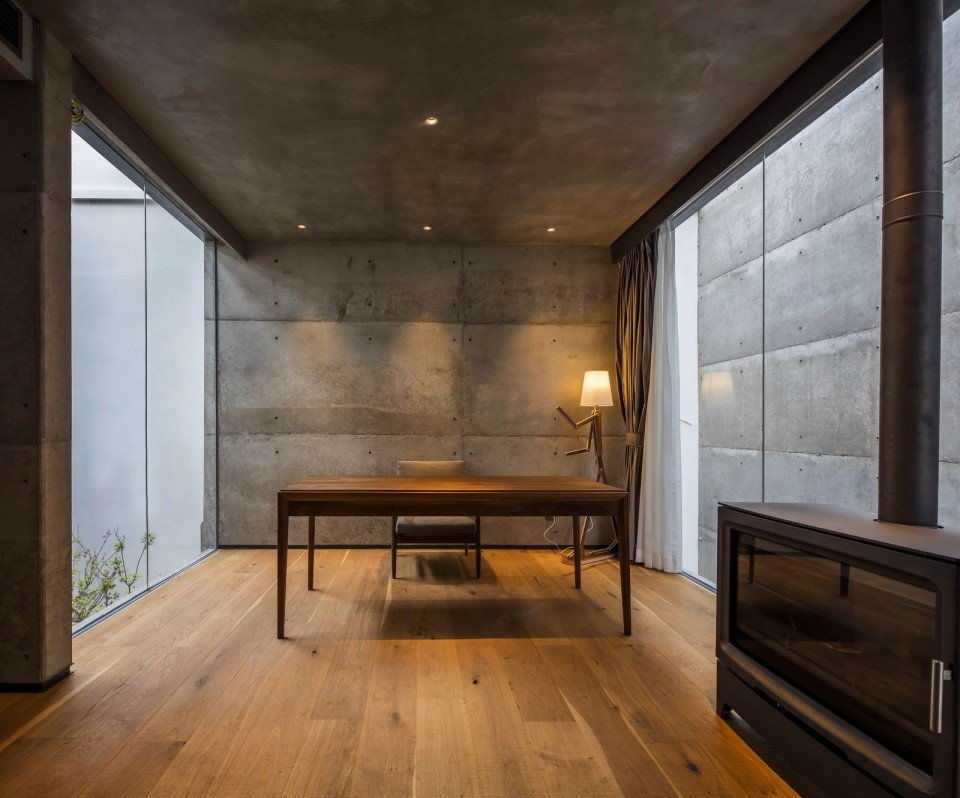

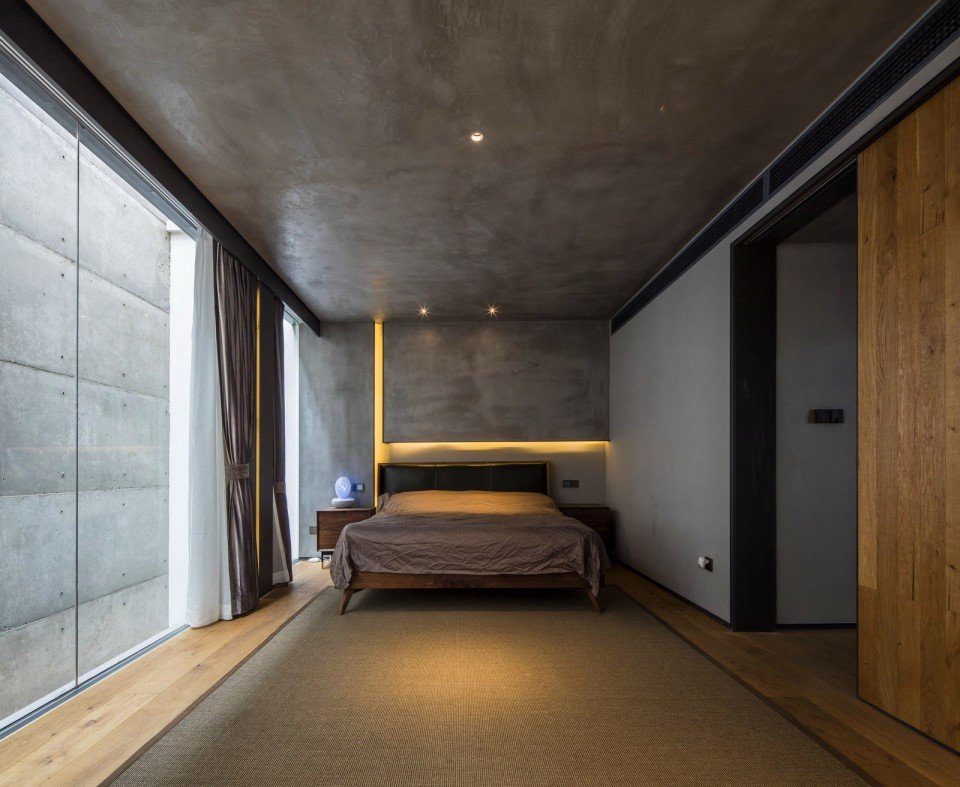

▼卧室，Bedroom

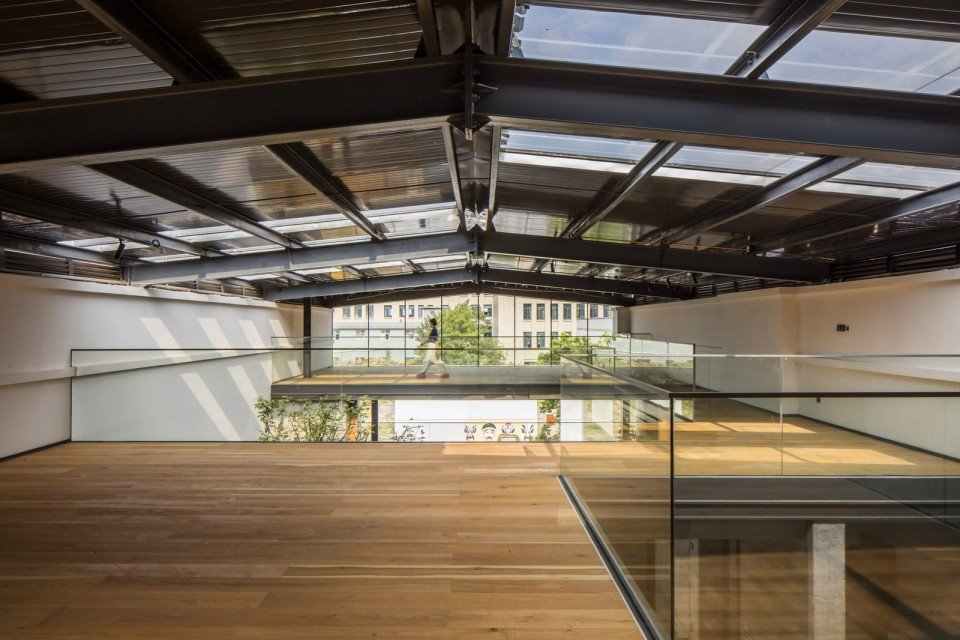

三楼留出多余空间内容，提供更多的活动使用可能性。光线从被重新设计铺设过的透光板渗入室内空间，呈现出丰富的光影。

Leave extra space on the third floor to provide more possibilities for use of the light, from the redesigned planking into the interior space, showing a rich light and shadow.

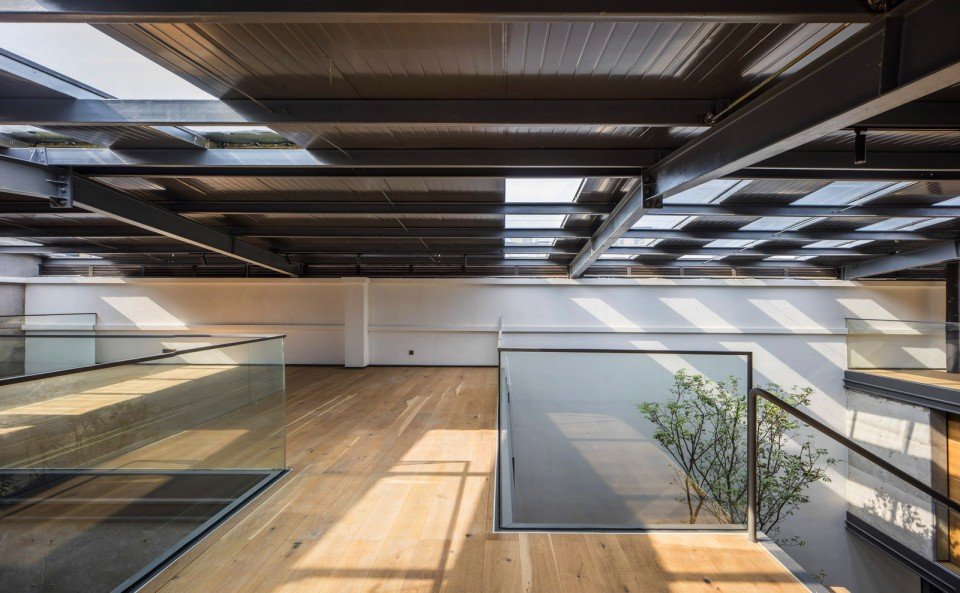

▼三层空间， the third floor

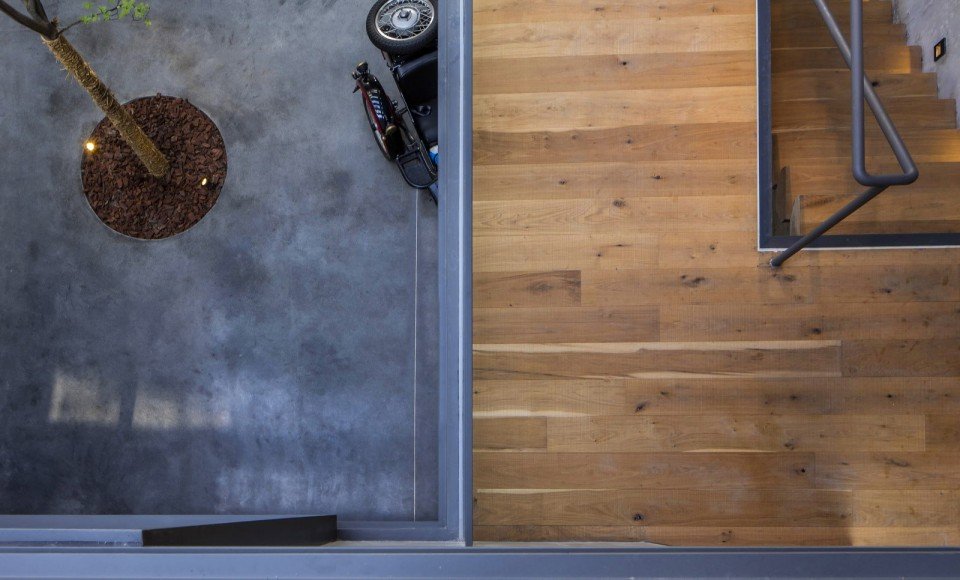

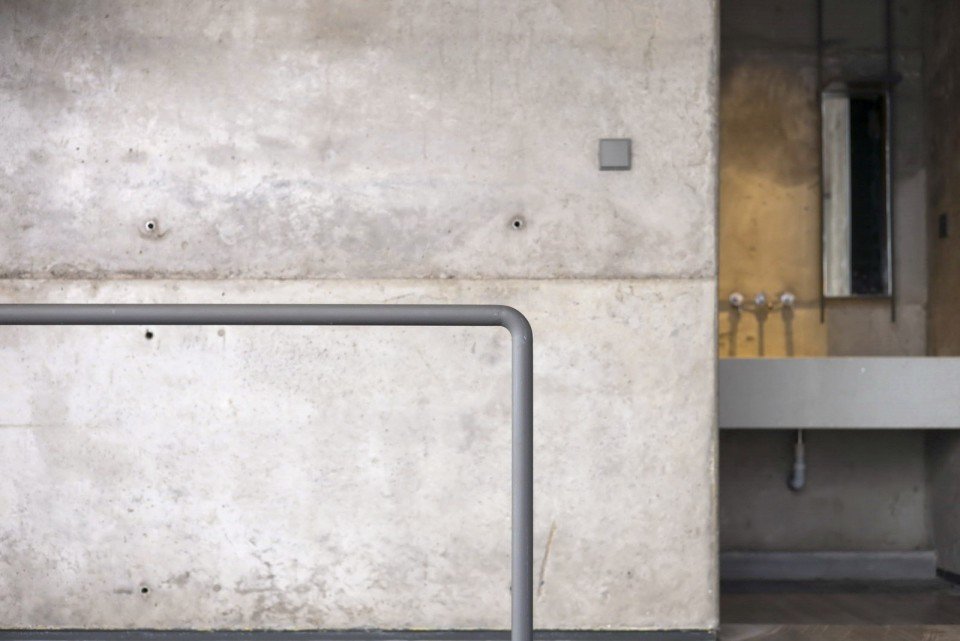

▼英亚体育官网玩法说明细节，Details

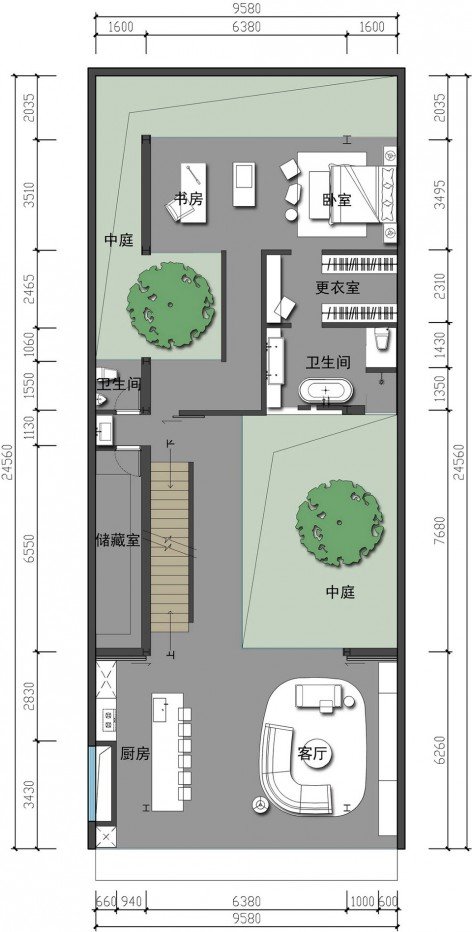

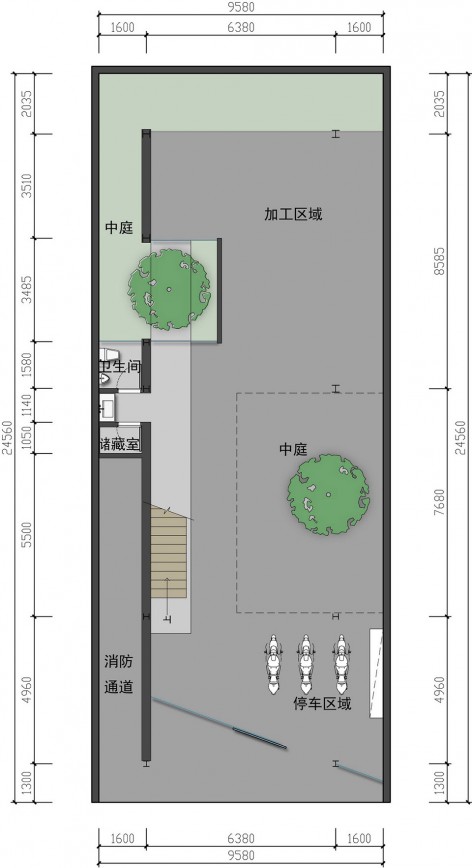

▼平面图，Floor Plan

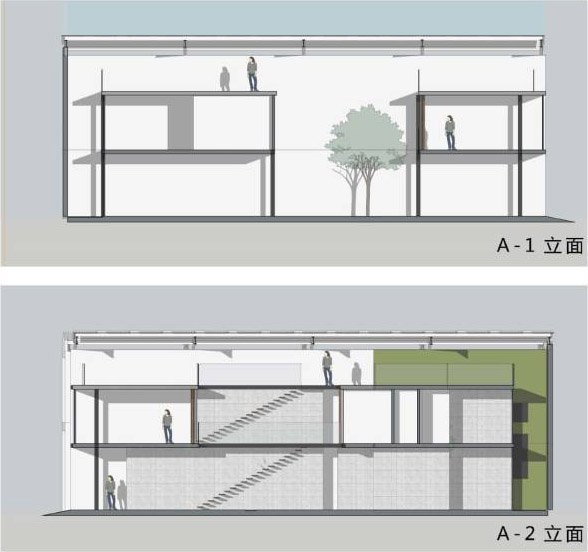

▼立面图，Elevation

项目资料
项目名称：MISA工作室
地点：浙江 杭州
项目类型：厂房改造
英亚体育官网玩法说明面积：600平方米
设计时间：2016.2-2016.4
竣工时间：2016.8
业主：MISA（Rokid创始人）
设计单位：
设计团队：胡之乐（设计总监）、郑洁
施工团队：黄耀青（施工总监）
摄影师：申强

Project Data
Project Name： MISA Studio
locations：Hangzhou, Zhejiang
Use of the Building：Factory Renovation
Gross Area：600M²
Design Period：2016.2-2016.4
Completed：2016.8
Client：MISA
Designer：
Design Team：Hu Zhile(Design Director), Zheng Jie
Construct Team: Huang Yangqing( Construction Directro)
Photographer：Shen Qiang
