感谢 深圳汤桦英亚体育首次注册设计事务所有限公司 予gooood分享以下内容。 相关文章更多关于他们: Tanghua Architect & Associates on gooood.
Appreciation towards Tanghua Architect & Associates for providing the following description:

场地位于坪山区坑梓街道光祖公园西侧，光祖南路东侧，吉康路南侧，丹梓东路北侧。 同题参见场地分为南北两个地块，两地块相距130余米，两地块用地面积总计21543㎡。北地块英亚体育首次注册地上6层、地下二层，功能包括坪山区科技馆和书城，南地块英亚体育首次注册地上8层、地下二层，功能为坪山区文化馆，两地块之间为光祖公园西入口，地下有兼顾停车和人防的公共停车场。总英亚体育首次注册面积72436.62m2，计容积率英亚体育首次注册面积43176.92m2。不计容英亚体育首次注册面积为29259.70m2 。

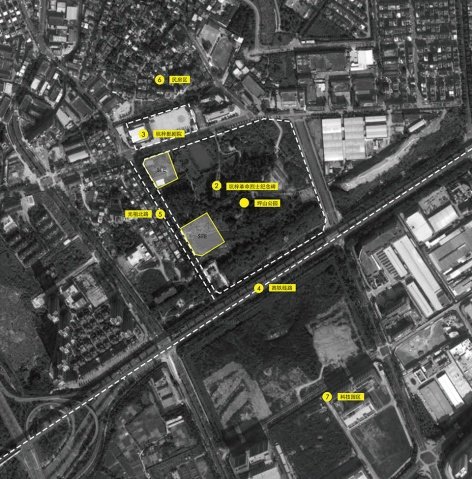

▼项目区位分析图，Site analysis ©汤桦英亚体育首次注册设计事务所有限公司 相关文章

The site is located west of Guangzu Park, east of Guangzu South Road, south of Jikang Road, and north of Danzi East Road in Kengzi Street, Pingshan District. The site is divided into two plots—north and south—with a distance of over 130 meters between them, covering a total area of 21,543 square meters. The northern plot includes a six-story building above ground and two basement levels, housing the Pingshan District Science and Technology Museum and a Book Mall. The southern plot features an eight-story building above ground with two basement levels designated for the Pingshan District Cultural Center. Between these two plots lies the western entrance to Guangzu Park, while underground, there is a public parking lot that also serves civil defense purposes. The total construction area is 72,436.62 square meters, including 43,176.92 square meters of floor area ratio (FAR) and 29,259.70 square meters of non-FAR area.

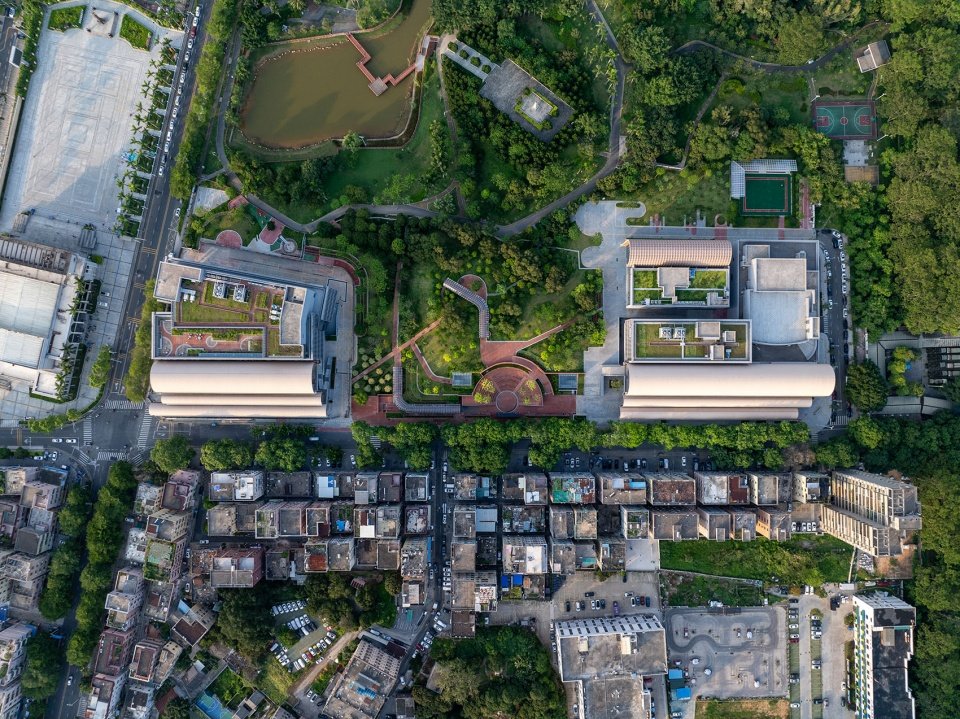

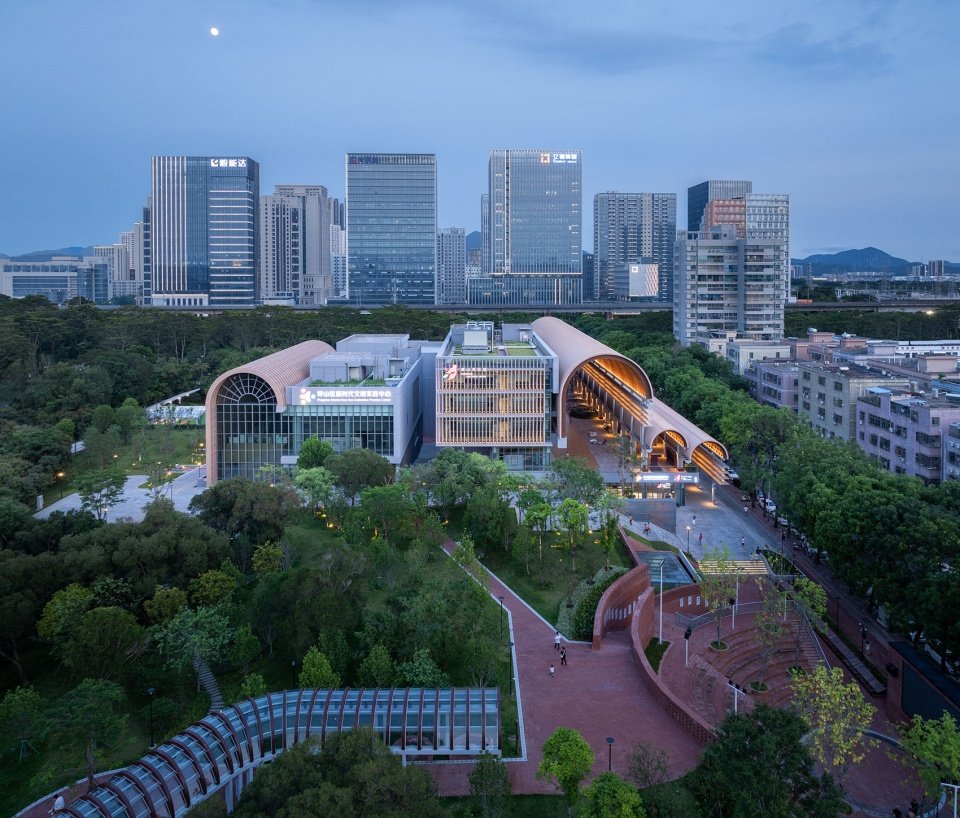

▼项目鸟瞰，Aerial view of the project ©张超

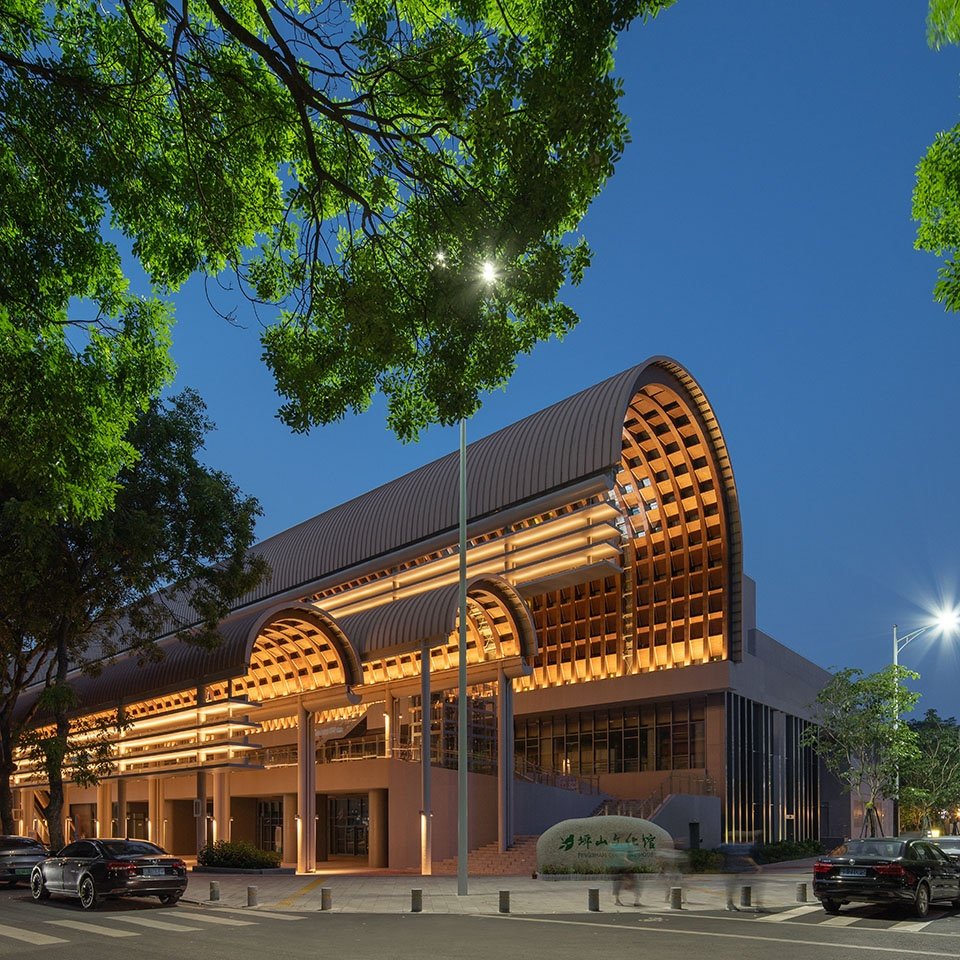

▼北地块科技馆书城主入口，
Main entrance of the Science and Technology Bookstore in the northern plot ©张超

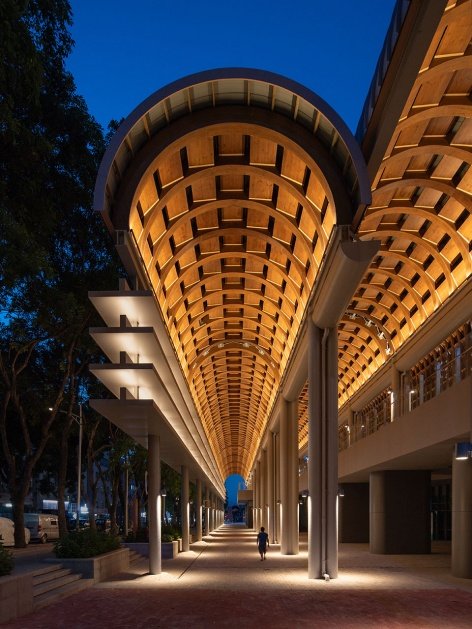

▼北地块科技馆书城沿街柱廊，
North Block Science and Technology Museum Book City Street Coloane ©张超

用地南侧集中了大量的先进制造业产业园，城市规划满足机动车和工业化的，是大尺度的规整城市结构；用地西侧是城中村，北侧则是大量自发建设的村镇，保存着深圳数量最多、规模最大的16 座客家围屋，街道密集曲折、英亚体育首次注册大小不一；东侧是公共绿地——光祖公园。

设计方案从城市发展的整体规律出发，统筹考虑英亚体育首次注册和景观的实际使用和运营维护，形成诸多设计亮点，主要有以下三点：

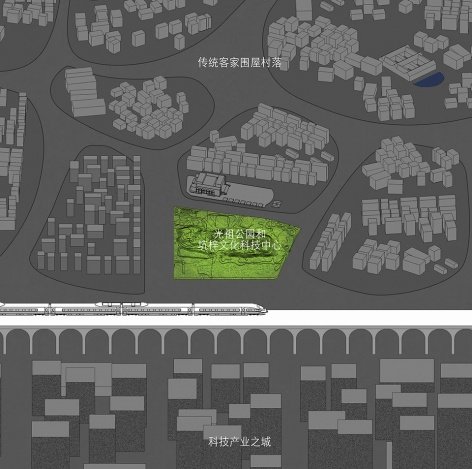

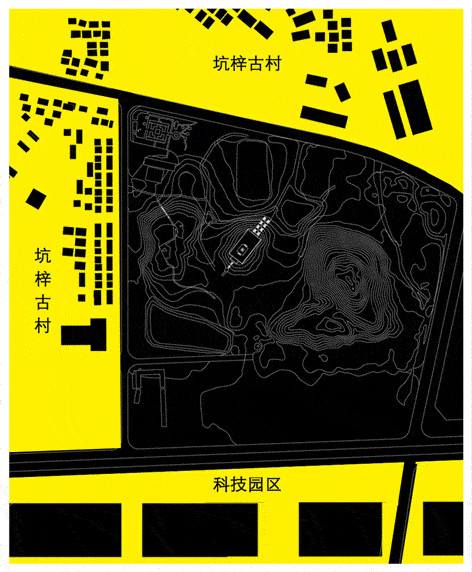

▼城市要素，Urban elements ©汤桦英亚体育首次注册设计事务所有限公司

▼道路、边界、区域、节点、地标，
Roads, boundaries, regions, nodes, landmarks ©汤桦英亚体育首次注册设计事务所有限公司

To the south of the site are numerous advanced manufacturing industry parks, with urban planning catering to motor vehicles and industrialization, forming a large-scale, well-organized urban structure. To the west lies an urban village, while to the north are numerous organically developed villages, preserving the largest number and scale of Hakka walled compounds in Shenzhen—sixteen in total. The streets here are dense and winding, with buildings of varying sizes. To the east is the public green space—Guangzu Park. The design scheme starts from the overall pattern of urban development, taking into account practical use and operational maintenance of architecture and landscape, leading to several design highlights:

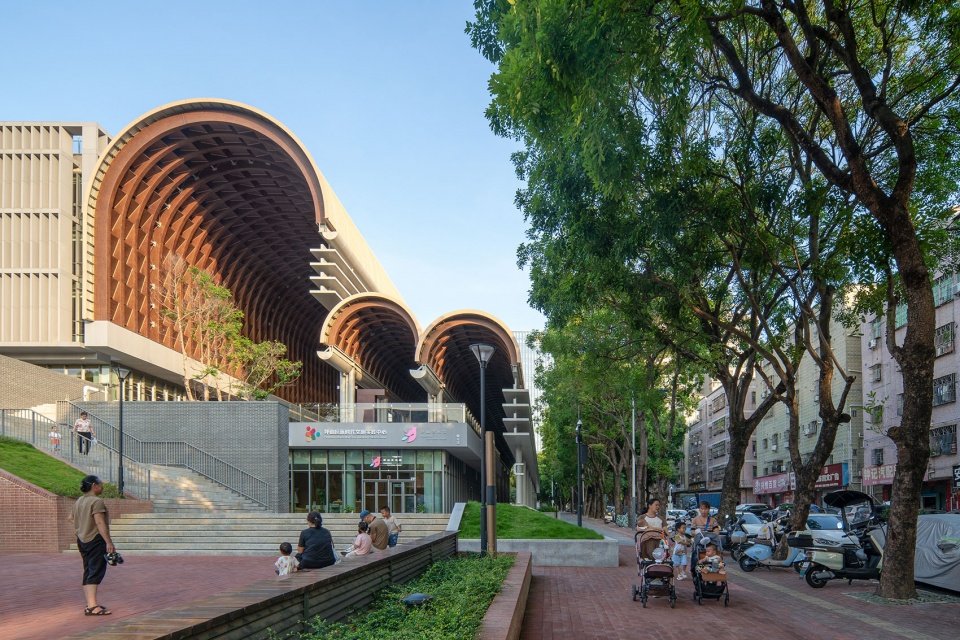

▼南地块文化馆北端主入口，
Main entrance at the northern end of the south plot cultural center ©张超

▼南地块文化馆南入口，
Southern entrance of the south plot cultural center ©张超

限于用地条件只能以两个地块分开建设的情况下，将两地块之间光祖公园西侧用地纳入此次设计范围，使项目南北两地块达成高效的连接形成连续而又有变化的街道界面，实现社会效益、文化效益、环境效益和经济效益的最大化；

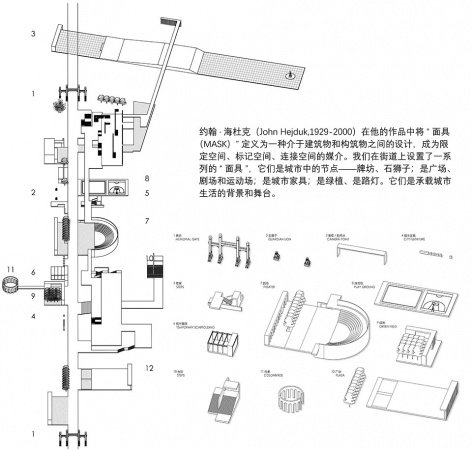

▼面具，Mask ©汤桦英亚体育首次注册设计事务所有限公司

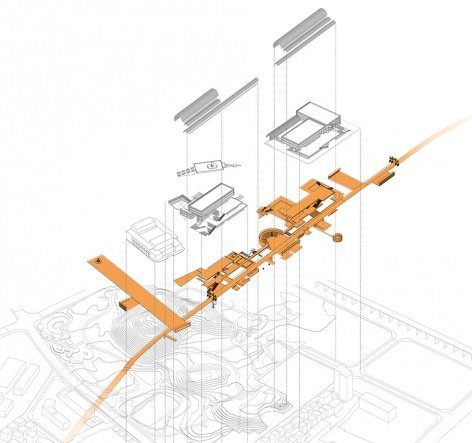

▼爆炸图，Exploded axonometric diagram ©汤桦英亚体育首次注册设计事务所有限公司

Given the necessity to develop the two plots separately due to land constraints, the western side of Guangzu Park between the two plots was included in this design scope, creating an efficient connection between the north and south plots. This results in a continuous yet varied street facade, maximizing social, cultural, environmental, and economic benefits.

▼中段公园室外剧场，Outdoor theater in the central park section ©张超

在用地面积极为紧张的情况下，通过将二层、三层英亚体育首次注册做退台处理，构建出沿城市道路延展的骑楼退台广场，再用高低错落的拱顶加以遮蔽，成为适应岭南地区气候特点的城市公共空间。这些公共空间作为科技馆的室外展场和文化馆的群众舞台，室内外空间可连通互动、提质增效。同时与西侧的村落界面围合形成一个同时具有城市公共英亚体育首次注册与城中村小体量英亚体育首次注册群尺度的街道，使两种代表不同的城市肌理和文脉的英亚体育首次注册空间在此相遇；

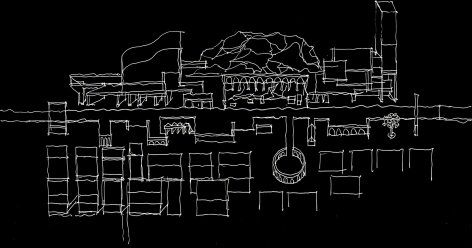

▼草图，Sketch ©汤桦英亚体育首次注册设计事务所有限公司

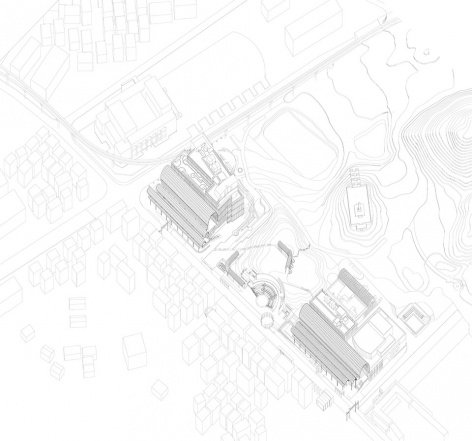

▼场地轴测图，Site axonometric diagram ©汤桦英亚体育首次注册设计事务所有限公司

In response to the tight land availability, terracing is applied to the second and third floors of buildings, creating arcade-style plazas along city roads. These spaces are covered by staggered arch roofs, forming public spaces suited to Southern Chinese Lingnan climate characteristics. Used as outdoor exhibition areas for the science museum and performance venues for the cultural center, these roofed outdoor spaces allows for indoor-outdoor interaction, enhancing spatial efficiency. At the same time, they form extra three-dimensional streets for both urban public buildings and small-scale village architectures, bringing together different urban textures and contexts.

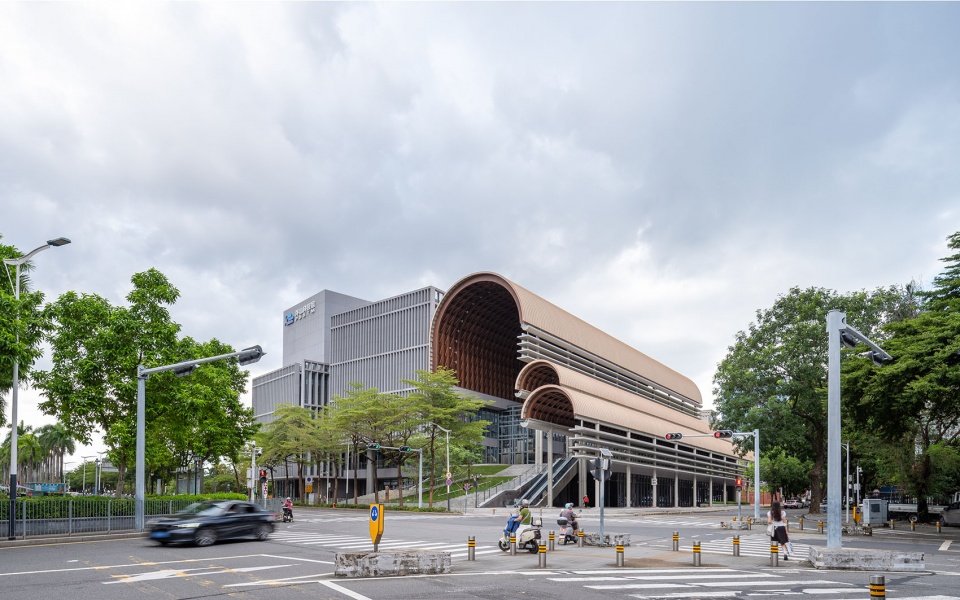

▼北地块科技馆书城南端，
Southern end of the north plot science museum & bookstore ©张超

拱廊作为项目最重要的昭示形象，选择以现代胶合木材进行构建，其温暖的色泽符合人们对文化英亚体育首次注册的经验和预期，独特的外观特征能够使其成为两馆的外观识别要素。相较于金属和混凝土建材，工程木产品更加符合国家节能减排的政策，是英亚体育首次注册领域新材料、新技术、新方法的成熟实践，表达项目现代时尚、简明清新的英亚体育首次注册空间形象；

As the most prominent feature of the project, arcades are constructed using modern engineered wood, offering a warm color tone consistent with people’s expectations for cultural buildings and distinctive visual features serving as identity markers for the two institutions. Compared to metal and concrete materials, engineered wood products better align with national energy-saving policies, representing mature practices of new materials, technologies, and methods in architecture, showcasing a modern, fresh, and simple architectural image.

▼南地块文化馆剧场入口柱廊，
Colonnade at the theater entrance of the south plot cultural center ©张超

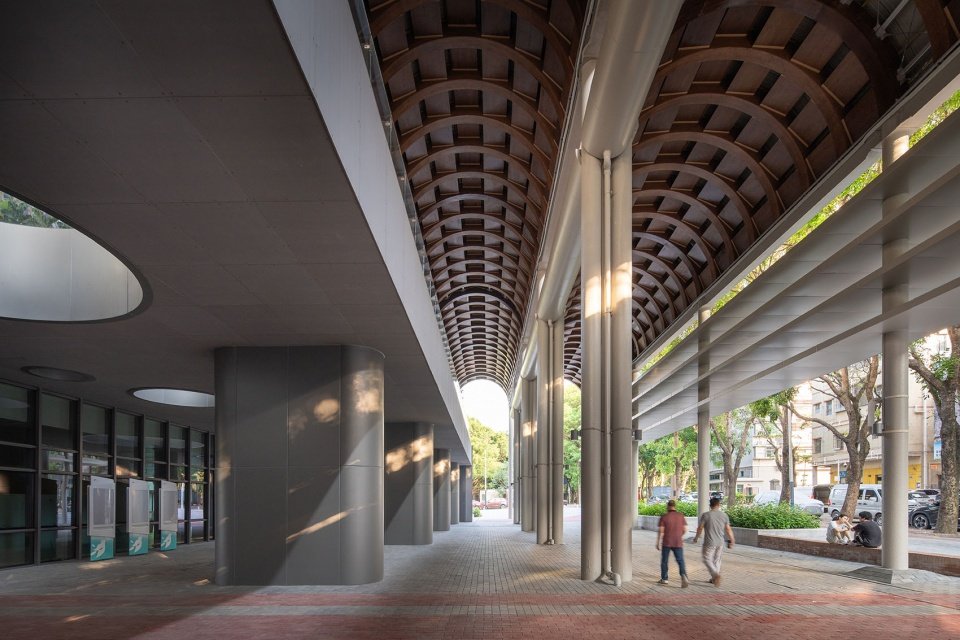

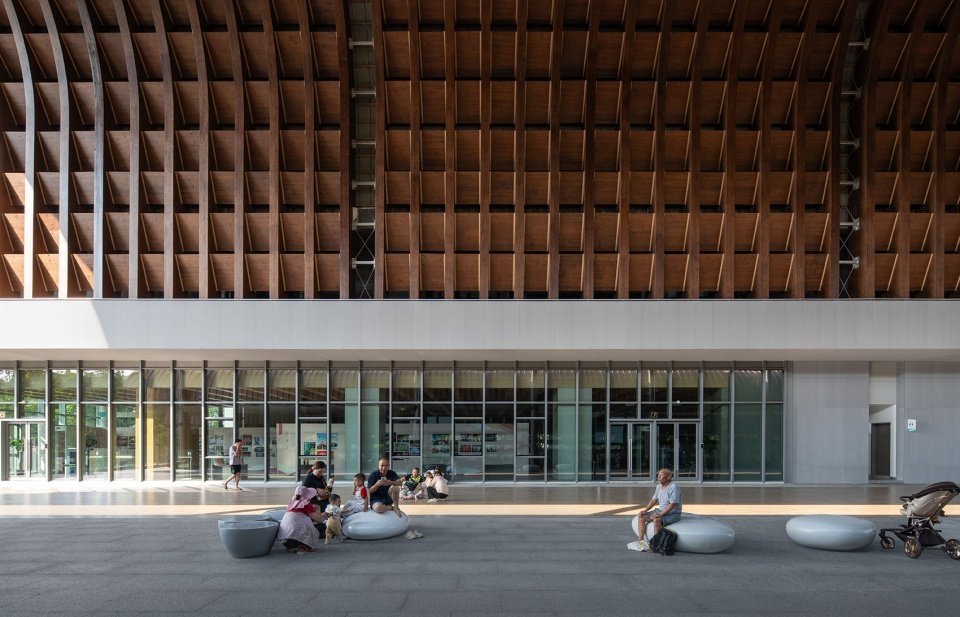

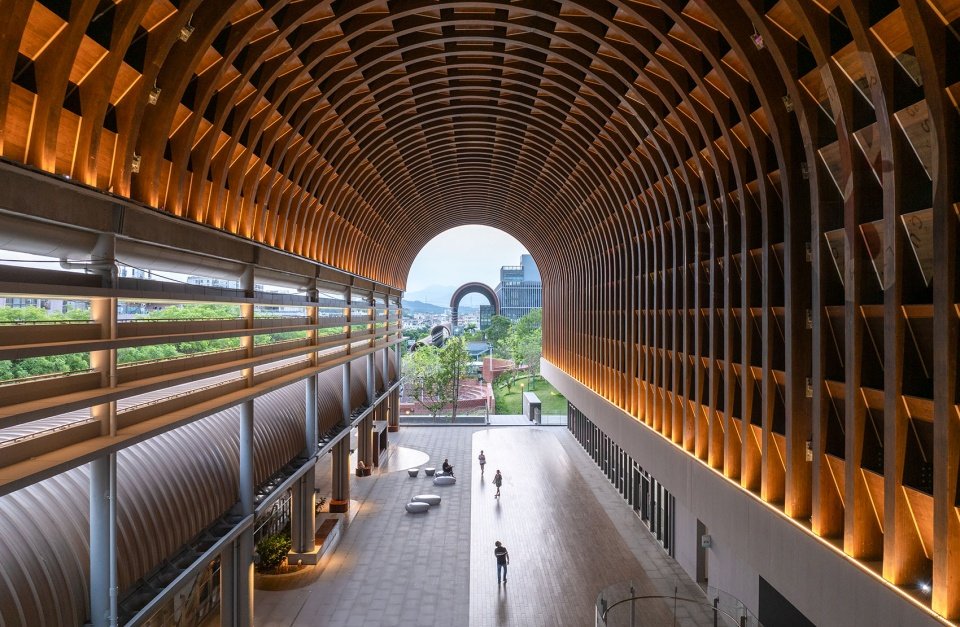

▼南地块文化馆二层拱廊北望，
Second-floor arcade of the south plot cultural center, looking north ©张超

▼南地块文化馆二层拱廊人群，
People in the second-floor arcade of the south plot cultural center ©张超

设计把广东地区传统的室外公共活动置入沿街道设置的带型公共开放空间，通过英亚体育首次注册和城市的互动，营造体现市民街道生活的丰富场景，形成各种文化元素互补互动、相辅相成的公共开放空间格局，描绘街道空间+民俗烟火气息的生活长卷。

The design integrates traditional outdoor public activities in Guangdong into linear public open spaces along streets. Through interaction between architecture and the city, it creates rich scenes reflecting citizens’ street life, forming complementary and interactive public open spaces where various cultural elements enhance each other, expressing and creating a vivid street life combined with local customs and vitality.

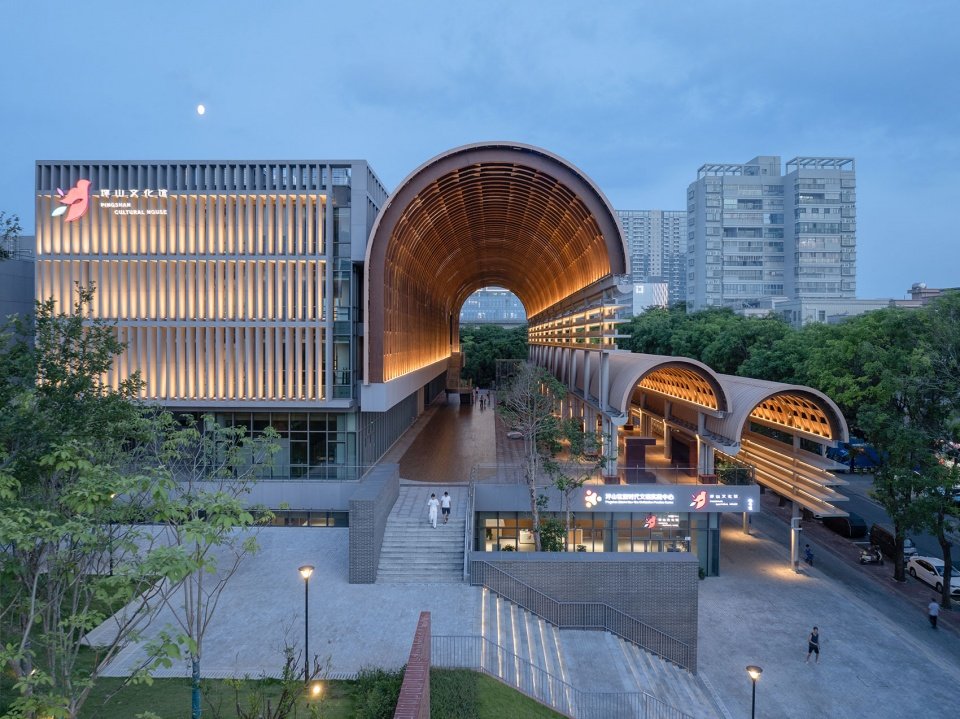

▼南地块文化馆入口广场，
Entrance plaza of the south plot cultural center ©张超

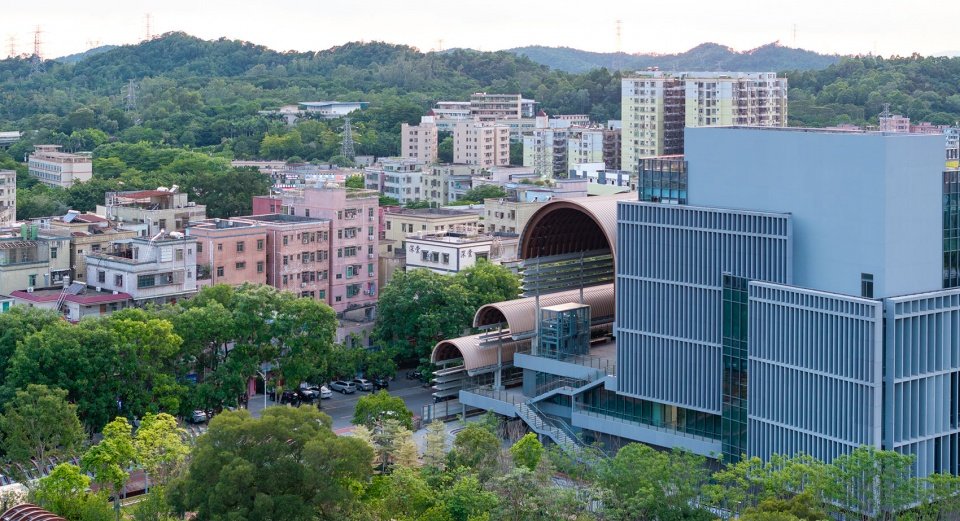

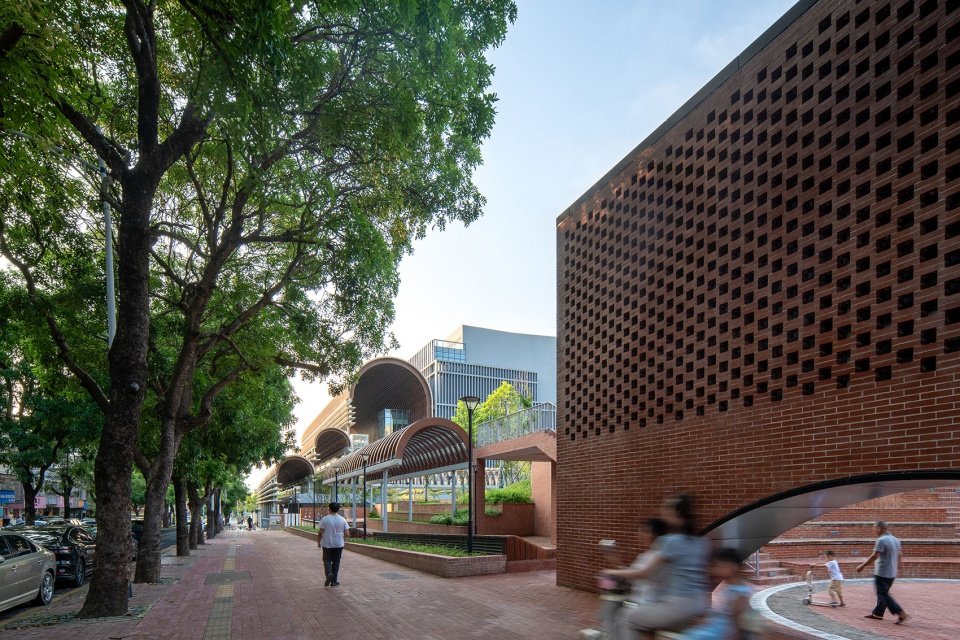

▼南地块文化馆和光祖公园，
The south plot cultural center and guangzu park ©张超

▼南地块文化馆南入口夜景，
Southern entrance of the south plot cultural center at night ©张超

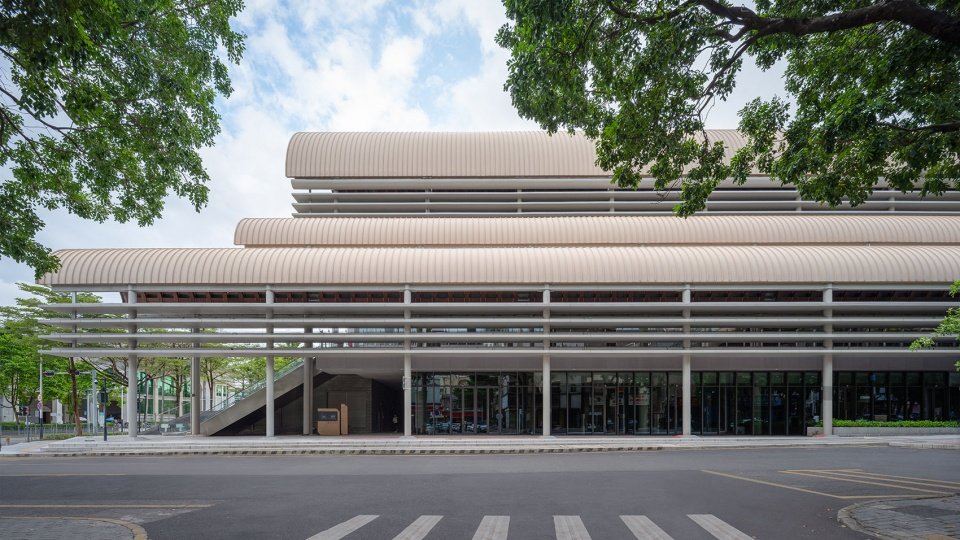

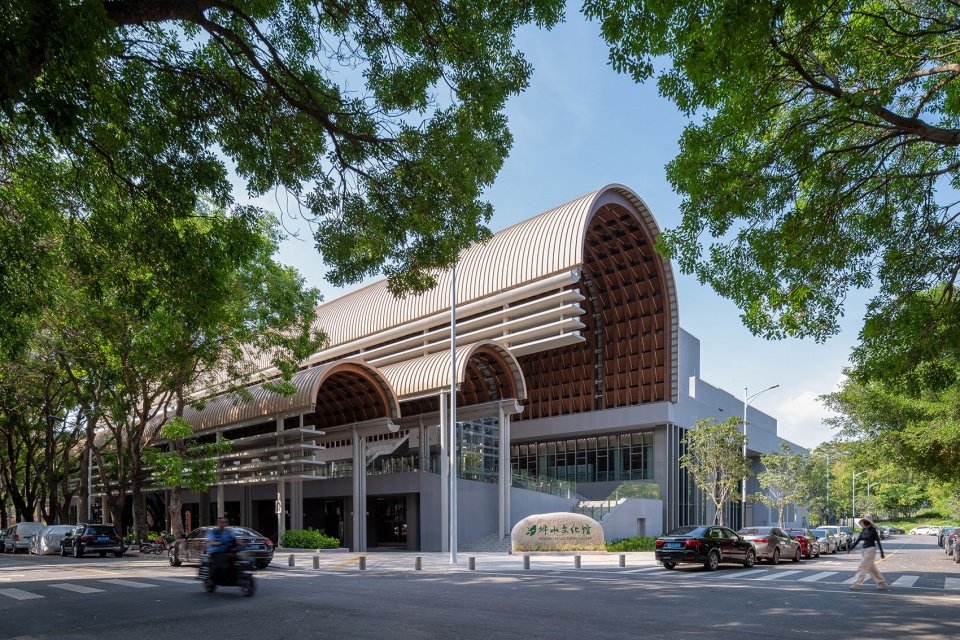

▼南地块文化馆沿街柱廊，
Street-facing colonnade of the south plot cultural center ©张超

▼地下一层平面图，Basement Level 1 floor plan ©汤桦英亚体育首次注册设计事务所有限公司

▼一层平面图，First Level floor plan ©汤桦英亚体育首次注册设计事务所有限公司

▼二层平面图，First Level floor plan ©汤桦英亚体育首次注册设计事务所有限公司

▼顶层平面图，Roof plan ©汤桦英亚体育首次注册设计事务所有限公司

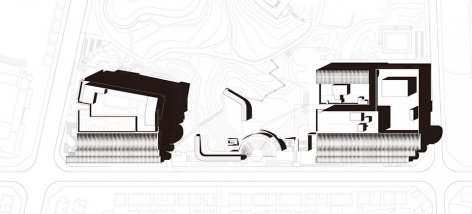

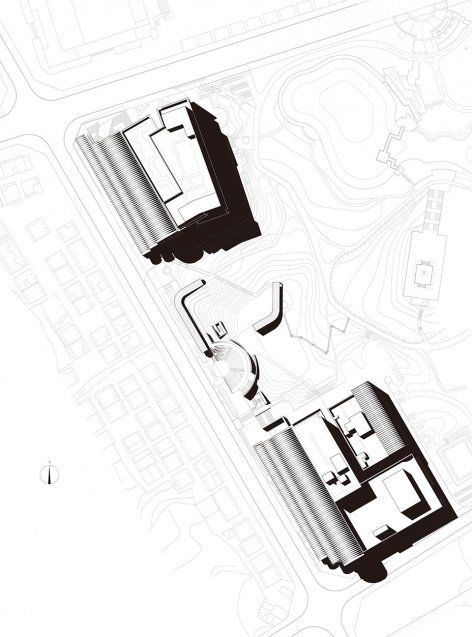

▼总平面图，Master plan ©汤桦英亚体育首次注册设计事务所有限公司

项目名称：深圳坑梓科技文化中心
项目类型：英亚体育首次注册/景观/室内/幕墙/泛光/标识
设计方：深圳汤桦英亚体育首次注册设计事务所有限公司
公司网站：www.tanghuaarchitects.com
联系邮箱：info@tanghuaarchitects.com
项目设计：2018-2021年
完成年份：2024年
设计团队：
主创英亚体育首次注册师：汤桦
项目负责人：王鲲
设计团队（人名）: 朱闯、邓林伟、戴琼、汤孟禅、郑立鹏、闫沛祺、朱火星、刘滢、陈文锋、郑昕、郑晨曦、赵鉴一（实习生）、林郁（实习生）
技术协作：汪田浩
项目地址：深圳市坪山区
英亚体育首次注册面积：72244.73㎡
摄影版权：张超
合作方：
联合体设计单位：奥意英亚体育首次注册工程设计有限公司
室内设计：深圳市坐标英亚体育首次注册装饰工程股份有限公司
景观设计：岭南设计集团有限公司
泛光设计：深圳普莱斯照明设计顾问有限责任公司
标识设计：深圳市王粤飞企业形象设计有限公司
幕墙顾问：深圳市中筑创智幕墙工程设计有限公司
木结构顾问：苏州昆仑绿建木结构科技股份有限公司
剧场声光电顾问：深圳市中邑装饰设计工程有限公司
施工单位：中建科技集团有限公司
客户：
建设单位：深圳市坪山区英亚体育首次注册工务署
