非常感谢 gmp 予gooood分享以下内容。 相关文章更多关于他们请至：gmp on gooood.
Appreciations towards gmp for providing the following description:

gmp 冯·格康，玛格及合伙人英亚体育官网正规渠道师事务作为临港新城的规划者，在过去数年间在临港重装备工业区设计建 造了多座外观富有表现力的产业英亚体育官网正规渠道。 同题参见gmp通过自己的作品证明了中国未来的产业英亚体育官网正规渠道在功能主导成本集约的 大趋势下，可以发展出新的思路。临港智造园三期项目是上海临港华平经济发展有限英亚体育官网正规渠道和上海临远资产管理有限英亚体育官网正规渠道共同委托gmp完成的第三个厂房外立面设计项目。临港新城位于上海最东南角，行政归属浦东新区。规划人口45万。临港新城产业区将缓解上海都会空间扩张过程对工业空间的巨大需求。

Once again, the architects von Gerkan, Marg and Partners (gmp) have designed characteristic facades for several production halls in the newly-founded city of Lingang near Shanghai. In doing so, the practice has demonstrated that, in future, industrial buildings in China will not be reduced to purely cost-optimized and utilitarian buildings. The facade design is already the third contract of this kind at the new industrial locations, commissioned by Shanghai Lingang Huaping Economic Development and Shanghai Linyuan Asset Management. To the south of Shanghai in the Pudong district, a new city for about half a million inhabitants is currently being created. As an industrial locations, the intention is that Lingang New City provides the space so badly needed by the continually growing industry in the metropolitan region of Shanghai. 相关文章

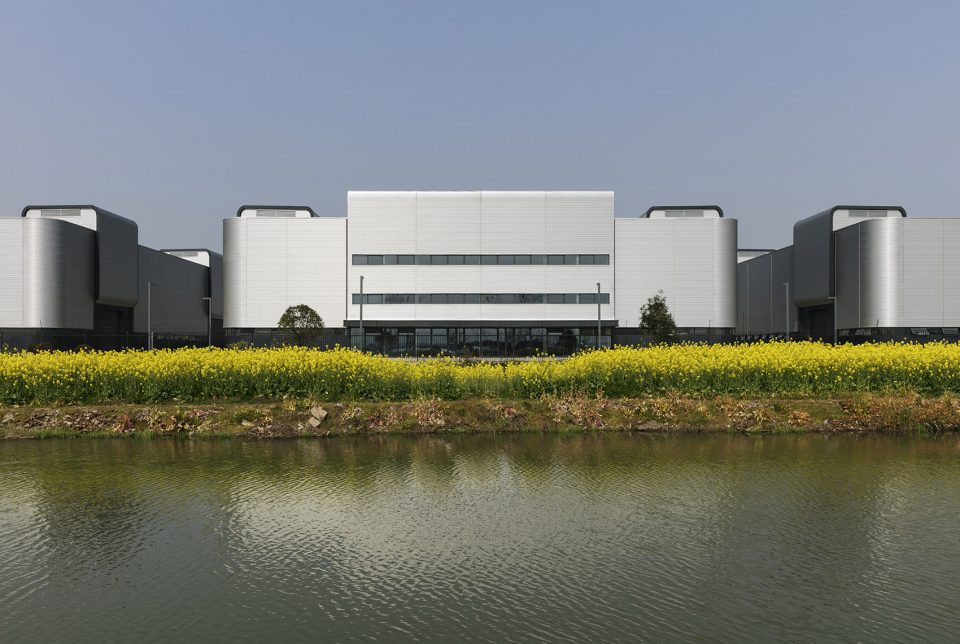

▼远望华平地块，view upon the “Huaping“ area

在深蓝条纹一期标准厂房和光仪电科技园“条码”标准厂房建设完工后，上海临港华平经济发展有限英亚体育官网正规渠道和上海临远资产管理有限英亚体育官网正规渠道又委托gmp于另外两块用地上进行大型生产厂房设计。设计目标同样是赋予用途未定的英亚体育官网正规渠道以富有识别性的英亚体育官网正规渠道体量以及外立面，为未来的使用者打造独一无二的“地标”英亚体育官网正规渠道。

Following a commission by Shanghai Lingang Huaping Economic Development and Shanghai Linyuan Asset Management, and having completed the halls of the Lingang Industrial Park with characteristic blue facade stripes, and the “barcode halls” – the black striped pattern of which was inspired by a barcode label – gmp has now completed two further developments with large production halls in Lingang. The brief was to develop a building envelope and facade design with recognition value capable of creating a succinct identity that can be recognized by the as yet unknown future users of the buildings.

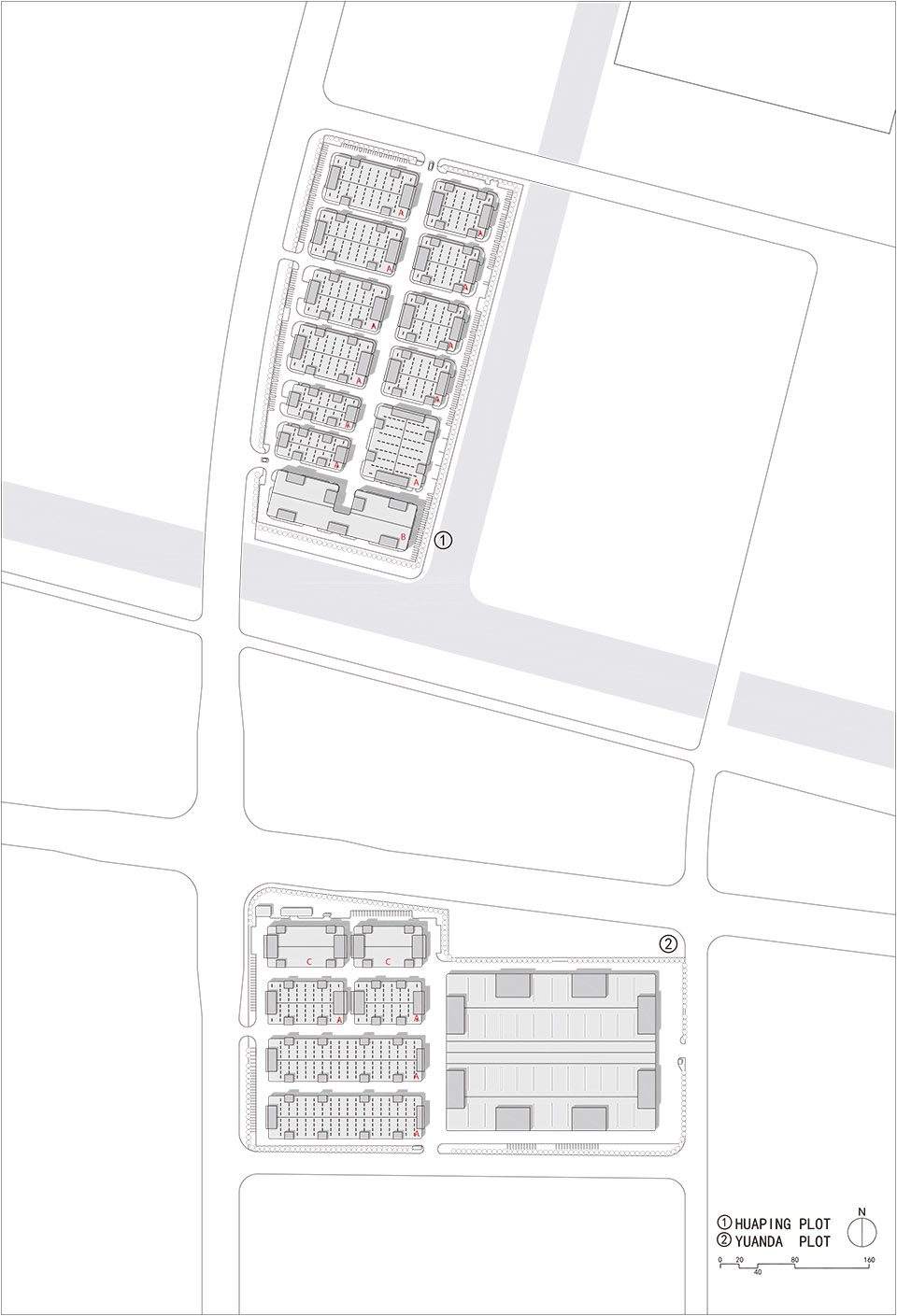

▼总平面图，masterplan with area 1 and 2

北侧的华平地块设有众多的单层厂房英亚体育官网正规渠道，这些英亚体育官网正规渠道的基座沿中轴线对齐排列，中轴线端部是一座五层英亚体育官网正规渠道，该英亚体育官网正规渠道的外立面同样采用了相同的波纹钢板，水平向窗带贯穿其间，和谐融入厂房英亚体育官网正规渠道群的整体形象。南侧的地块也采用正交网格布局，地块上的单层和多层厂房呈组团式布置。流动的金属外立面和独特的圆角设计令其从周边环境中脱颖而出。

Next to the single-story hall buildings with different footprint areas, a five-story building to one side at the end of a central axis bounds the “Huaping“ site to the north and, with its fenestration bands integrated into the metal facade, forms a perfect match with the overall ensemble. The site situated further to the south is also based on an orthogonal grid; however, here the single-story and multi-story buildings are laid out in clusters. With their wrapped metal facades and conspicuous round- ed corners, the production halls stand out distinctly from their surroundings.

▼华平地块轴线，axis in the center of the “Huaping“ area

弧线的英亚体育官网正规渠道转角刻画了新建厂房的整体形象，同时令外部道路交通引导更加通畅。外立面采用银灰色小波纹钢板，延续了弧线的设计概念。入口通道和卸货区域从立面上突出抬起，波纹钢板随弧形造型延伸到屋顶。考虑到临港靠海的风雨天气因素，抬起的下部向外自然延伸形成雨棚，同时满足了立面统一和实际需求。

The trademark of the new production halls is the rounded building corners, as they benefit traffic manage- ment on the outside. Upon the clients’ request, the windowless facade of this project, including the rounded corners, were not finished in render but constructed in silver-gray corrugated aluminum sheeting. Entrances and delivery zones have been emphasized in the facade design; in these areas, the horizontally structured corrugated cladding has been arranged with a vertical upward offset so that the sheeting on the first floor starts above the doors and gates, and forms canopies for the delivery areas.

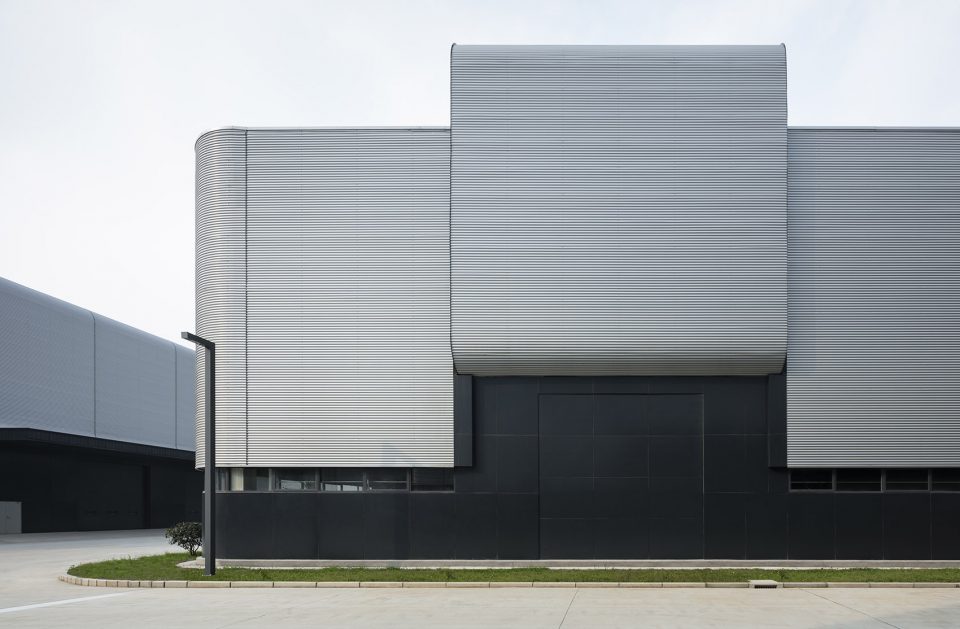

▼卸货区，delivery zone

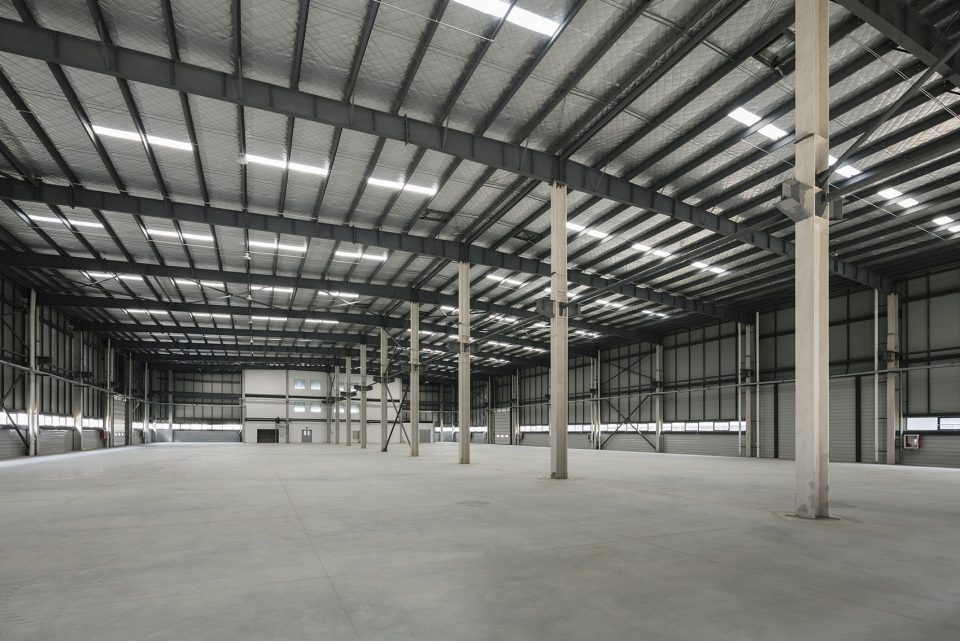

▼产业大厅，production hall

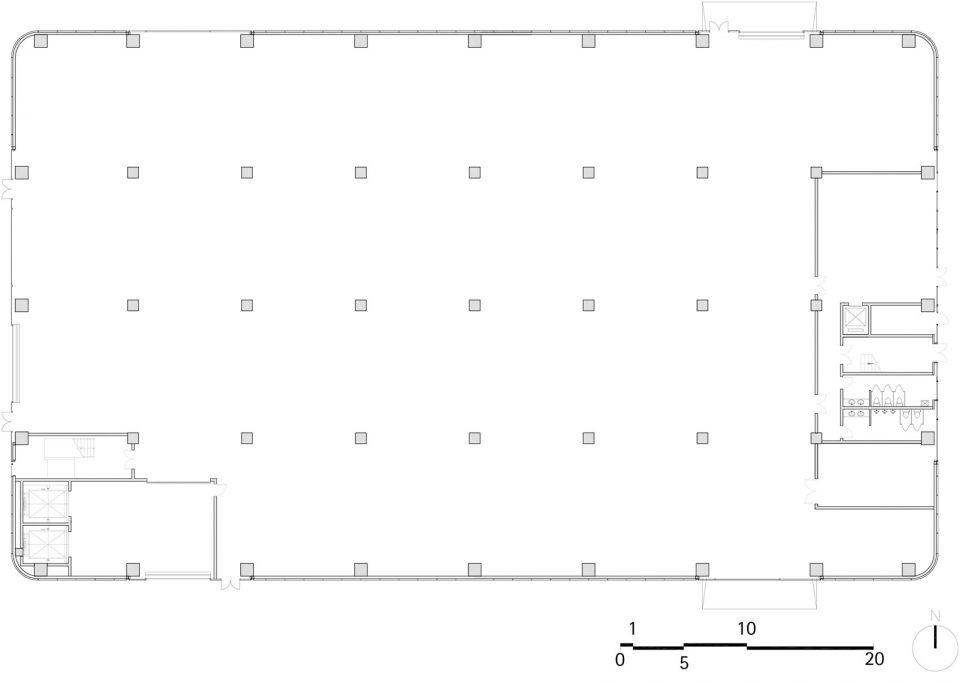

▼A型厂房首层平面，first floor type A

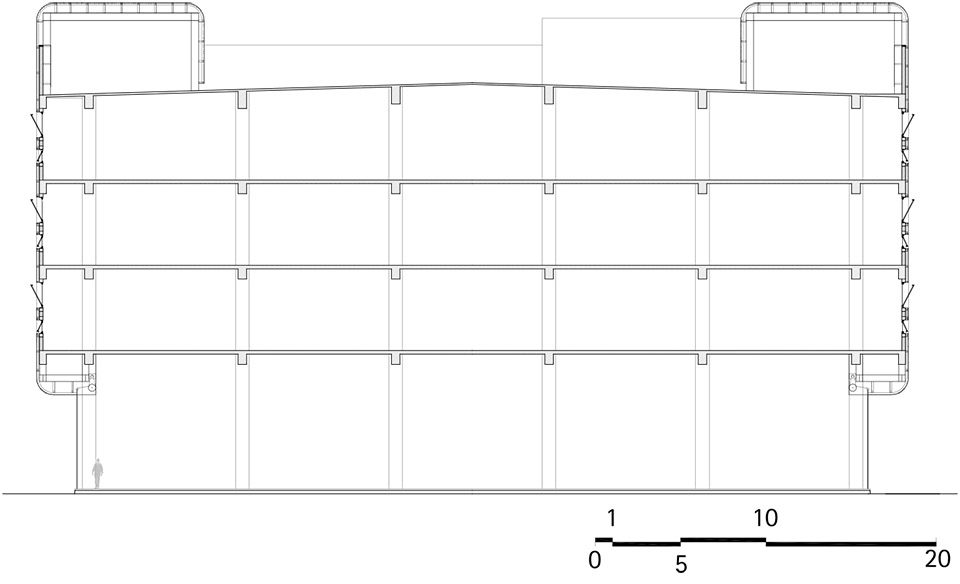

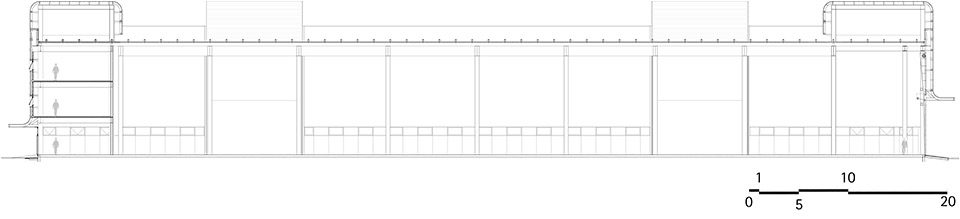

▼A型厂房纵剖面，cross section type A

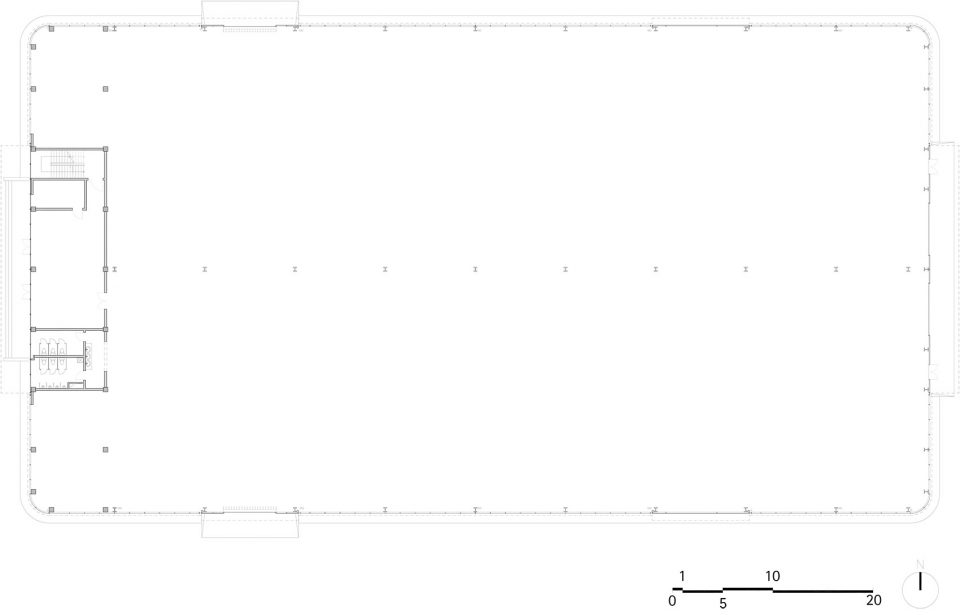

▼B型厂房首层平面，first floor, type B

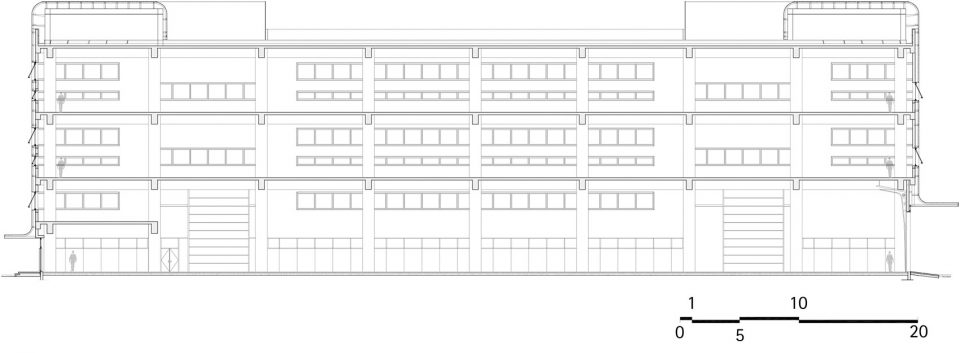

▼B型厂房纵剖面，cross section, type B

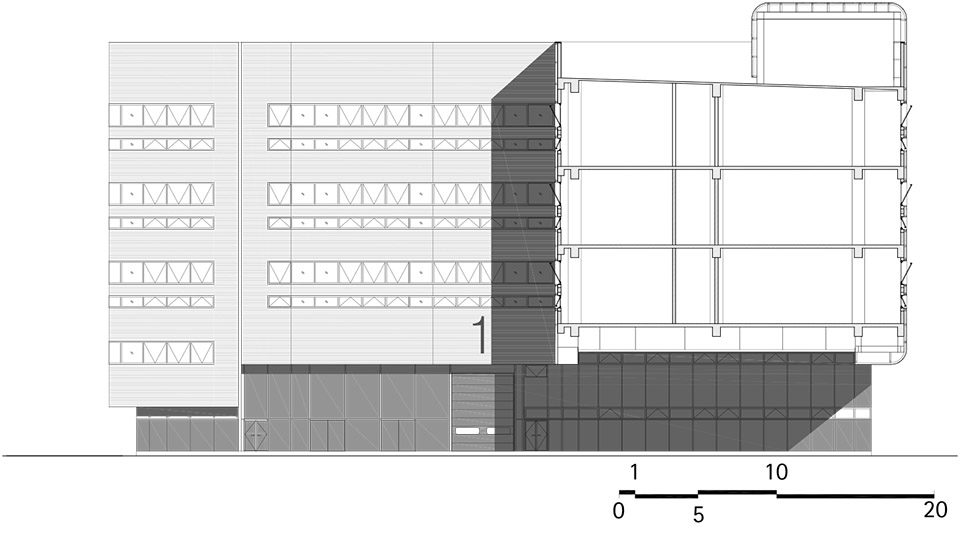

▼B型厂房立面和剖面，section and aspect, type B

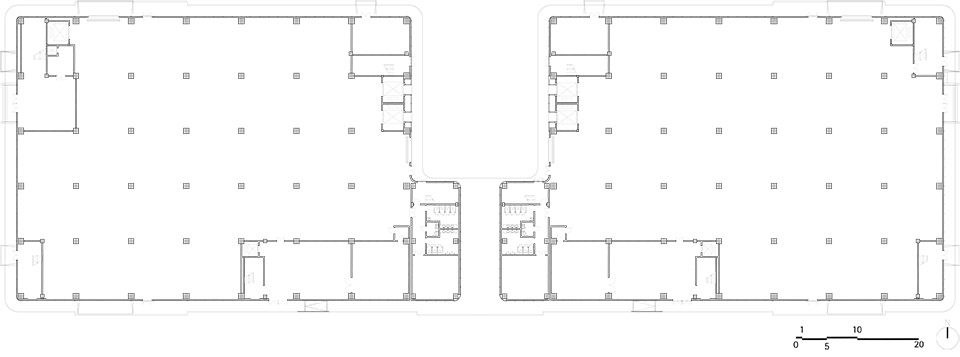

▼C型厂房首层平面，first floor, type C

▼C型厂房横向剖面，longitudinal section, type C
