融合天然材料、智能科技与被动式设计策略，Ga.o之家呈现了越南城市生活的绿色愿景。 相关文章

Blending natural materials, smart technologies, and passive design strategies, Ga.o House showcases a green vision for urban living in Vietnam.

▼项目概览，overall of the project © To Huu Dung



项目简介
Introduction

坐落于阳光充沛、雨量丰富的热带地区，Ga.o之家是一个融合住宅与办公功能的混合型英亚体育官网玩法说明。设计团队的目标不仅是满足日常使用需求，更在于探索更具前瞻性的策略：优先使用天然与再生材料、优化能源效率、利用可再生资源（太阳能、风能、水资源），并尽可能降低英亚体育官网玩法说明全生命周期的碳排放。该项目体现了对越南可持续城市发展趋势的积极回应。

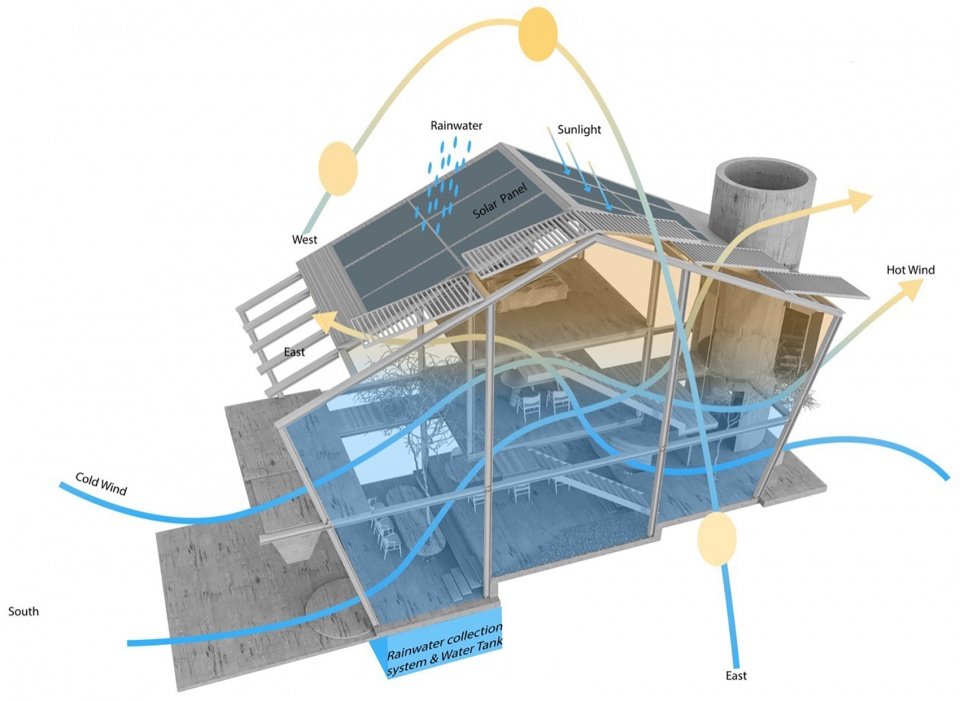

▼分析图，analysis diagram ©85 Design

Located in a tropical region with abundant sunlight and rainfall, Ga.o House is a hybrid project that merges residential and office functions within a single structure. Beyond fulfilling basic usage needs, the design team set more ambitious goals: prioritizing the use of natural and recycled materials, optimizing energy efficiency, harnessing renewable resources (solar, wind, water), and minimizing carbon emissions throughout the building’s lifecycle. The project embodies an effort to align with Vietnam’s growing commitment to sustainable urban development.

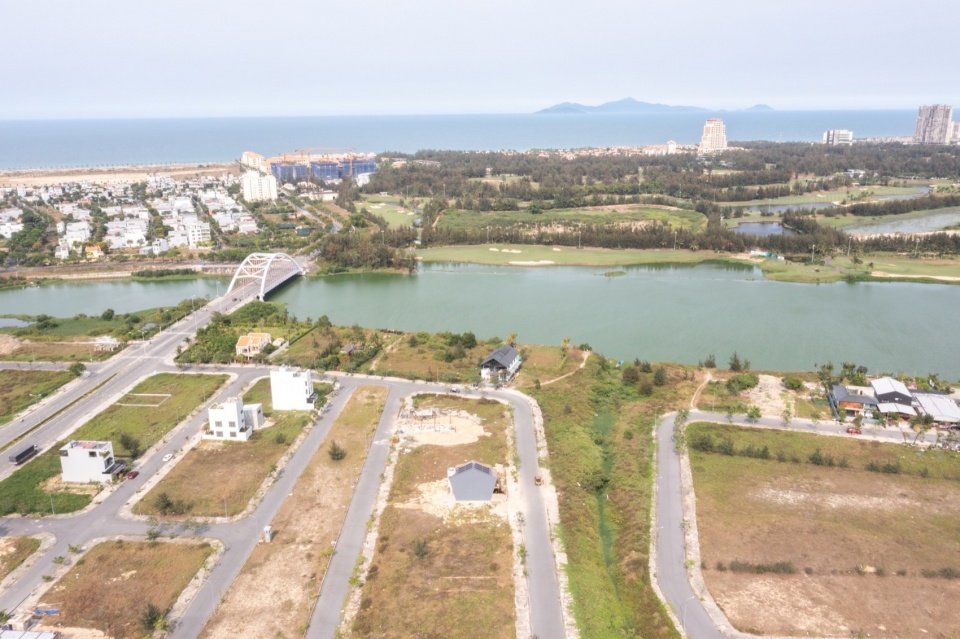

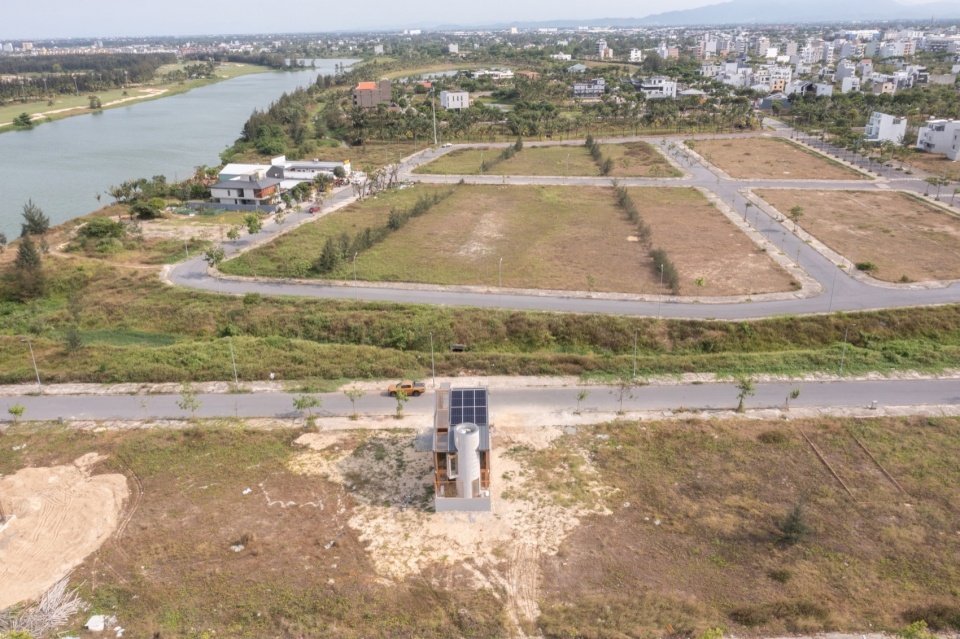

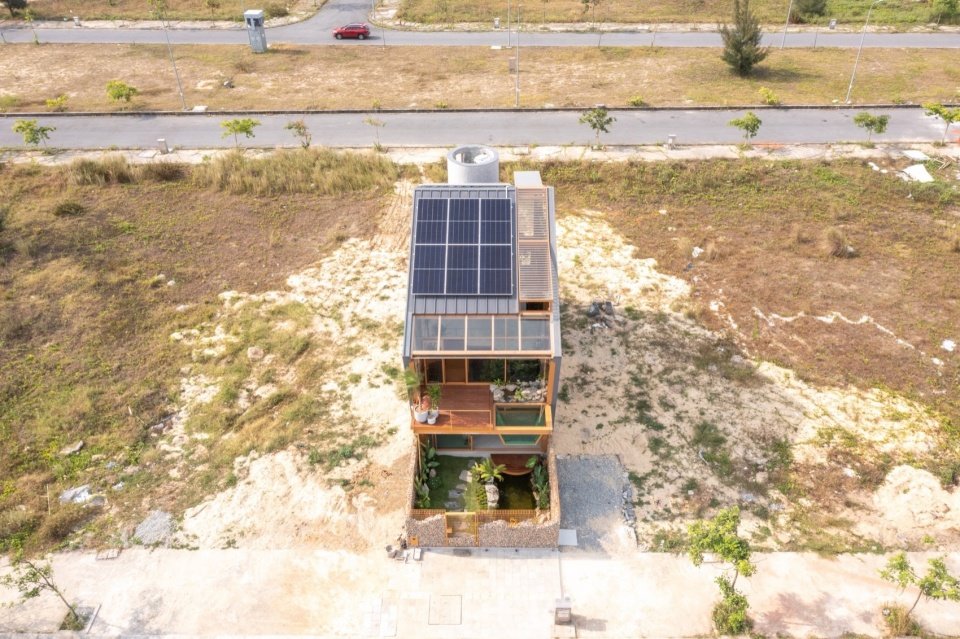

▼场地鸟瞰，aerial view of the site © To Huu Dung

▼南立面，south elevation © To Huu Dung

▼北立面，north elevation © To Huu Dung

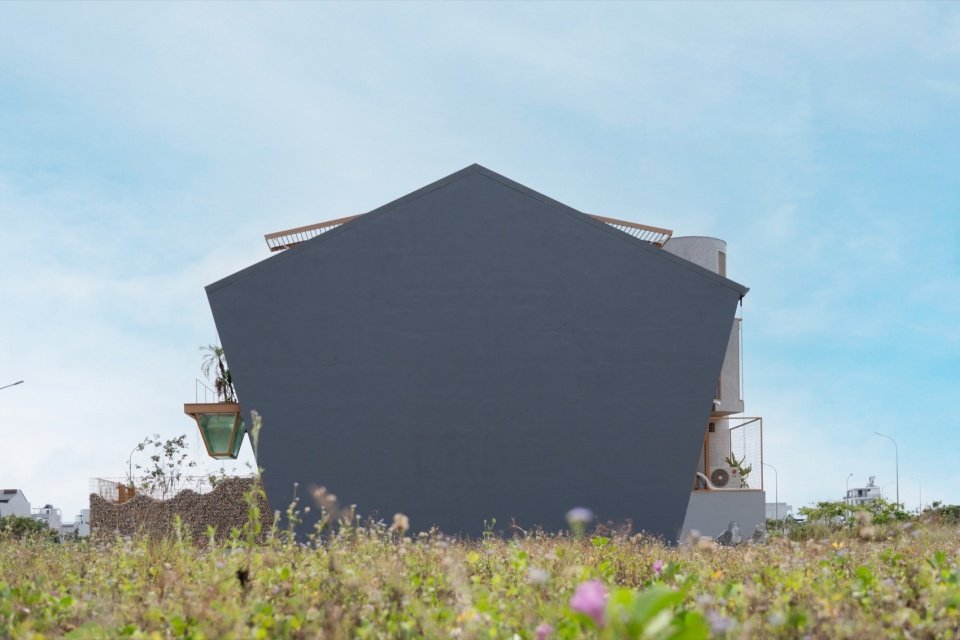

▼东立面，east elevating © To Huu Dung



设计策略
Design Solutions

为实现这些目标，英亚体育官网玩法说明采用了预制钢结构，这是一种灵活、低废的建造方式，便于施工，也利于未来回收利用。英亚体育官网玩法说明布局保持高度可变性，以适应功能变化。英亚体育官网玩法说明面积被有效压缩，以释放更多开放空间，实现自然通风与采光，显著降低能源消耗。

To realize these objectives, the project employs a prefabricated steel frame — a flexible, low-waste solution that simplifies both construction and future recycling. The functional layout is deliberately adaptable, allowing spaces to evolve with changing needs. Built area is minimized to maximize open spaces, facilitating natural ventilation and daylight penetration, significantly reducing the building’s energy demand.

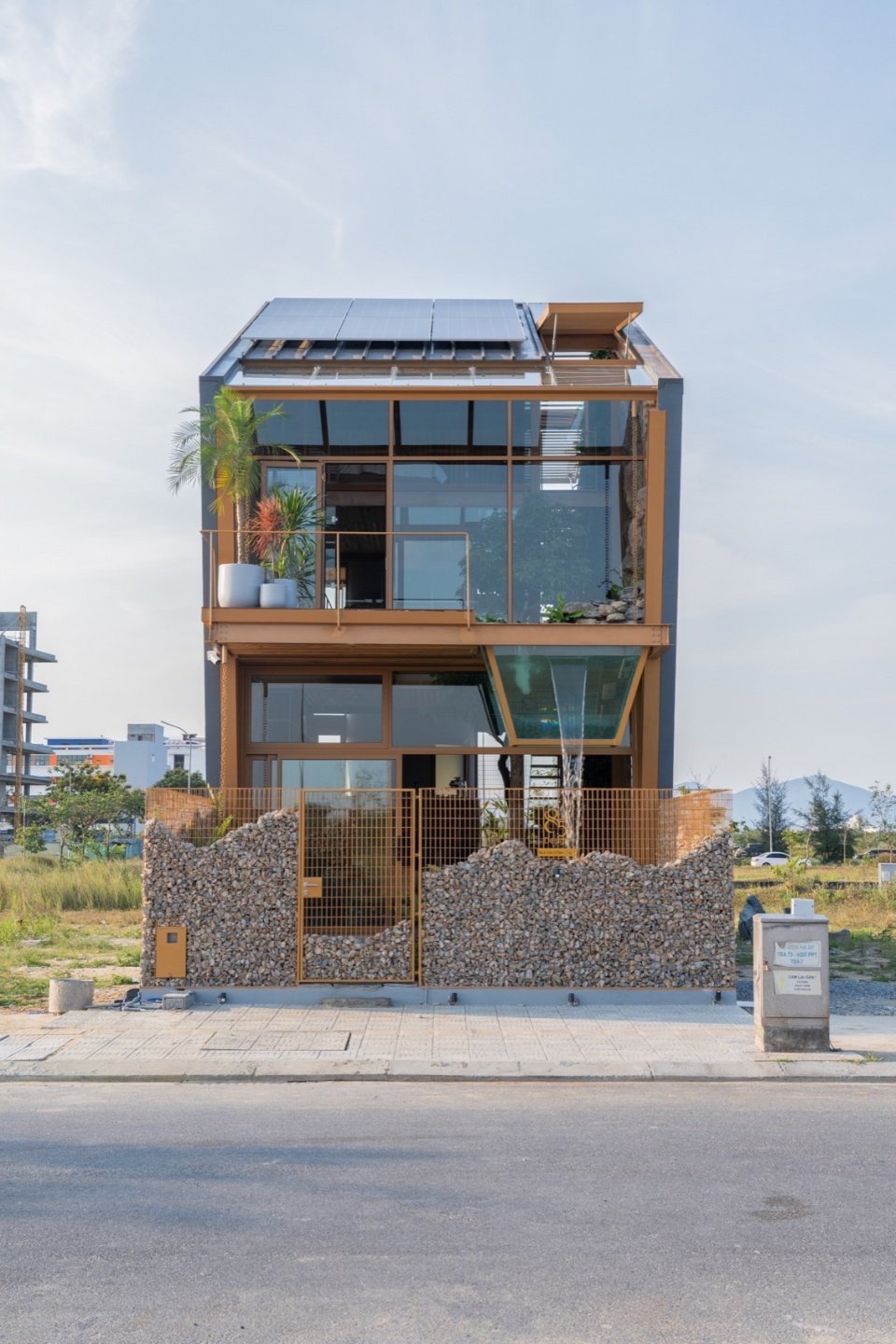

▼入口立面，entrance facade © To Huu Dung

▼前庭融合绿植、水体与高差设计，front garden blends greenery, water, and multi-leveled flooring © To Huu Dung

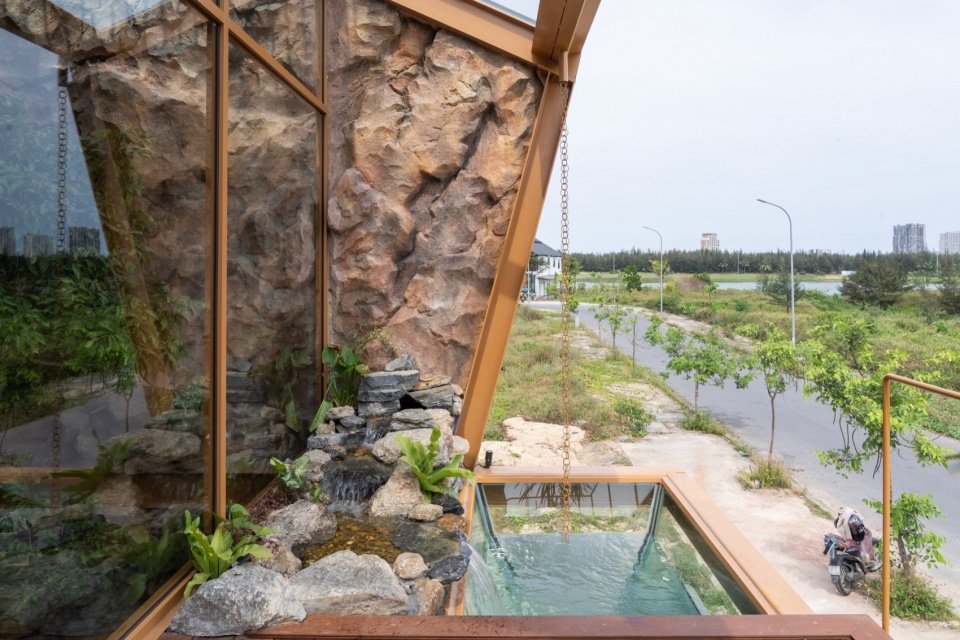

▼水池，the water feature © To Huu Dung

屋顶配备太阳能系统，每年可产生约11,000千瓦时电力，结合智能管理技术提升使用效率。雨水和灌溉用水通过收集系统回收再利用，减少水资源浪费。

A rooftop solar system generates approximately 11,000 kWh of electricity annually, managed by smart technology for efficient consumption. Rainwater and irrigation water are collected and reused, minimizing resource wastage.

▼屋顶配备太阳能系统，rooftop solar system © To Huu Dung



空间组织
Spatial Organization

英亚体育官网玩法说明共两层加一阁楼。另外首层设有办公区及小型吧台，满足员工的饮食需求。前庭融合绿植、水体与高差设计，营造多层次的景观体验，引导使用者亲近自然。庭院中种植的大树精心布局，既引入阳光，又保有自然的私密感。地基施工中挖出的天然石材被重新利用为台阶和室内构件，丰富了空间的触感与材料层次。

Ga.o House comprises two floors and an attic. The ground floor features an office area and a small bar catering to employee dining and beverage needs. A front garden blends greenery, water, and multi-leveled flooring to create layered vistas, inviting users to engage with the landscape. Mature trees are strategically planted to welcome sunlight while preserving a sense of intimacy with nature. Large stones, salvaged from the foundation work, are thoughtfully repurposed into steps and interior accents, enriching the space’s tactile and material experience.

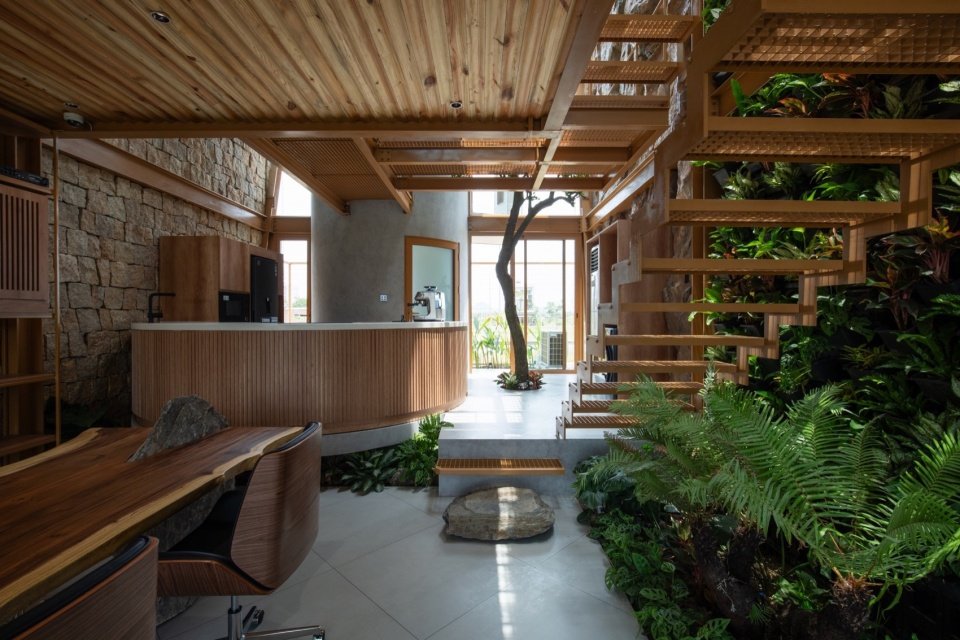

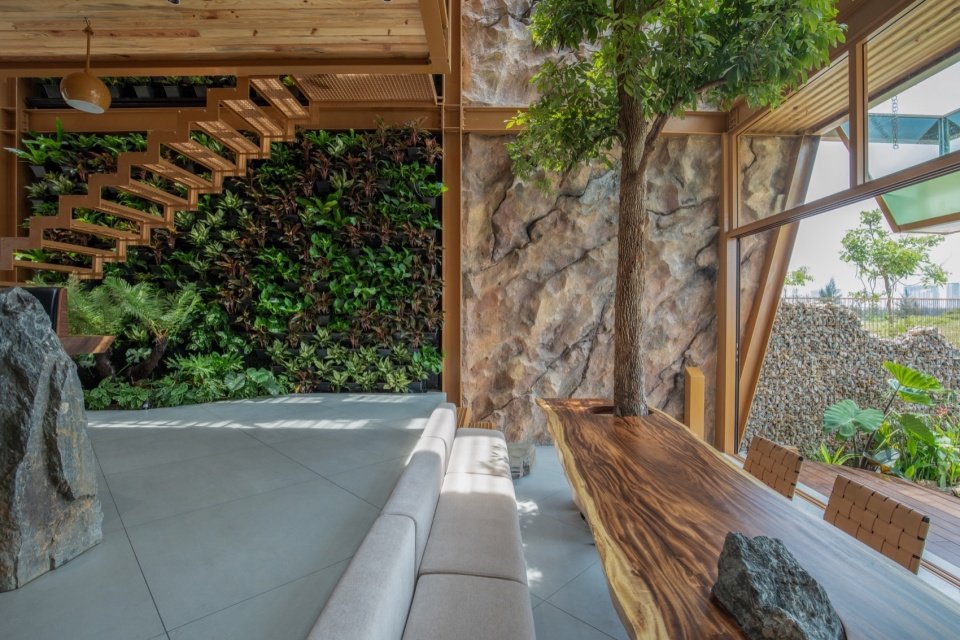

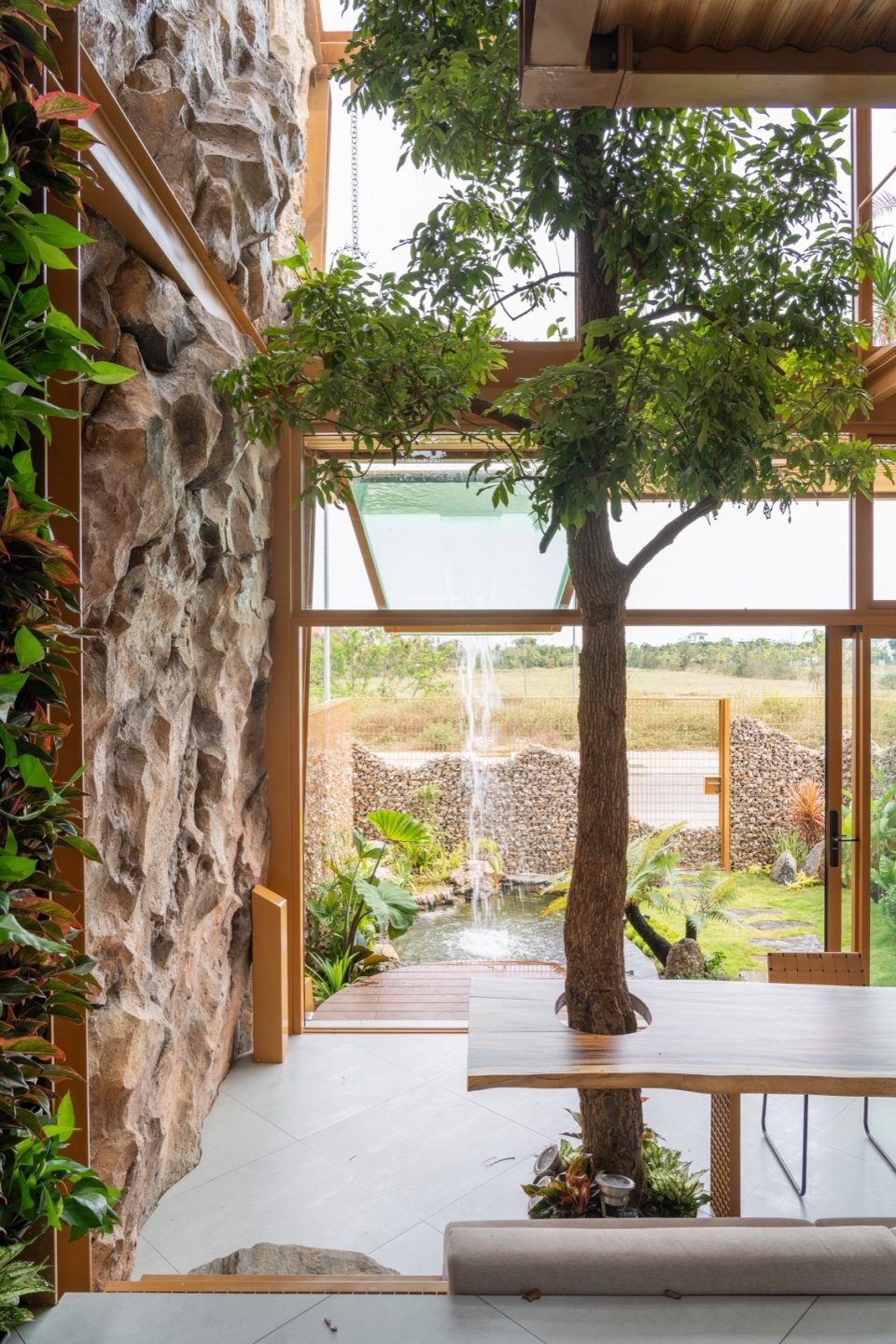

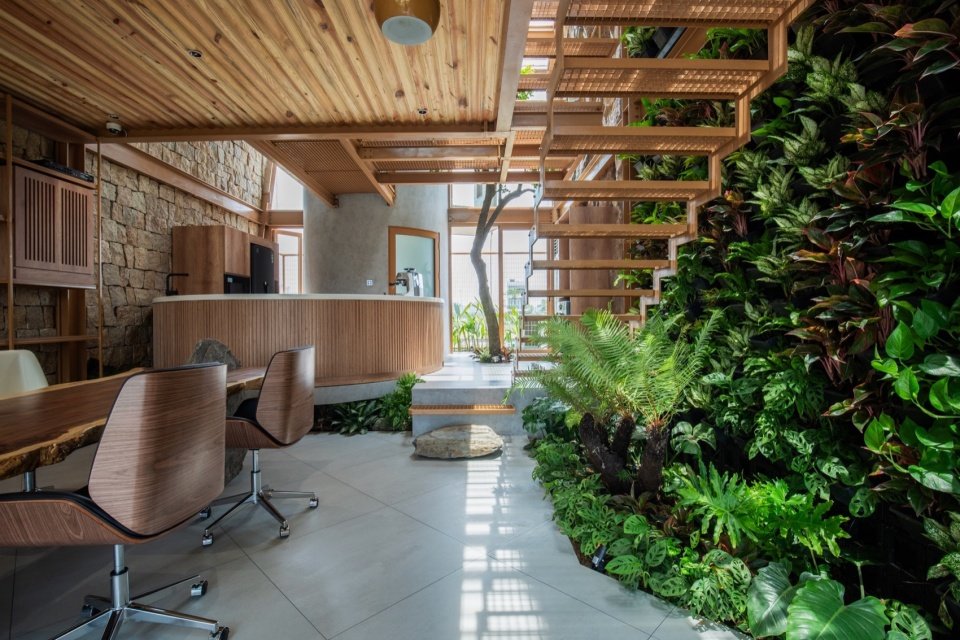

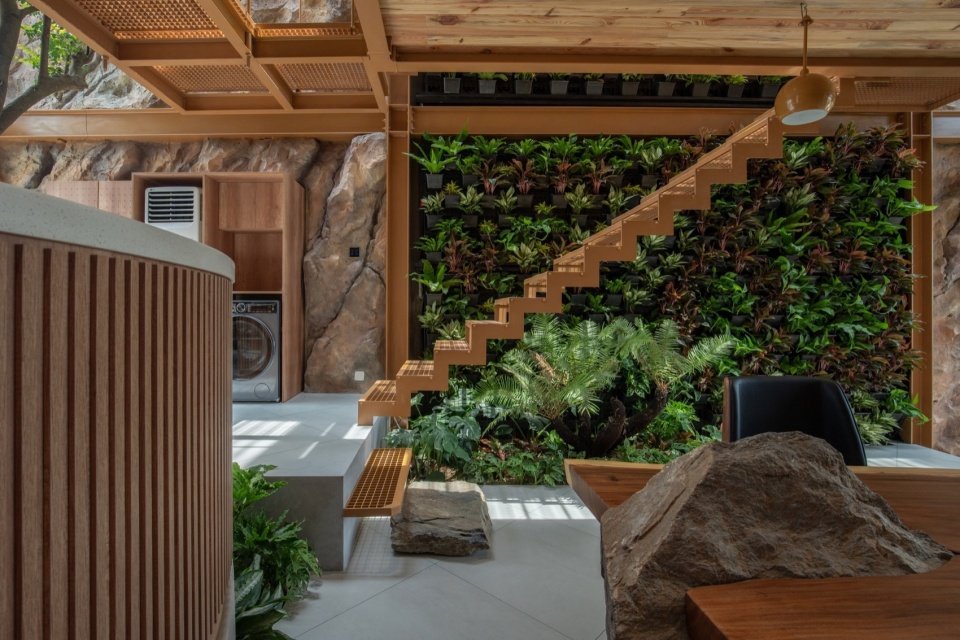

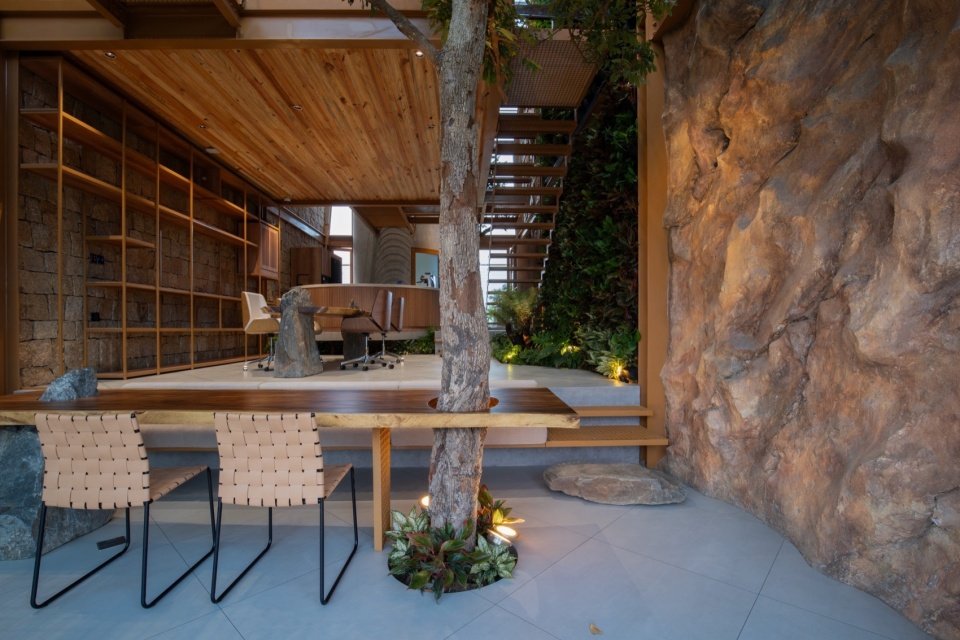

▼底层空间，ground floor space © To Huu Dung

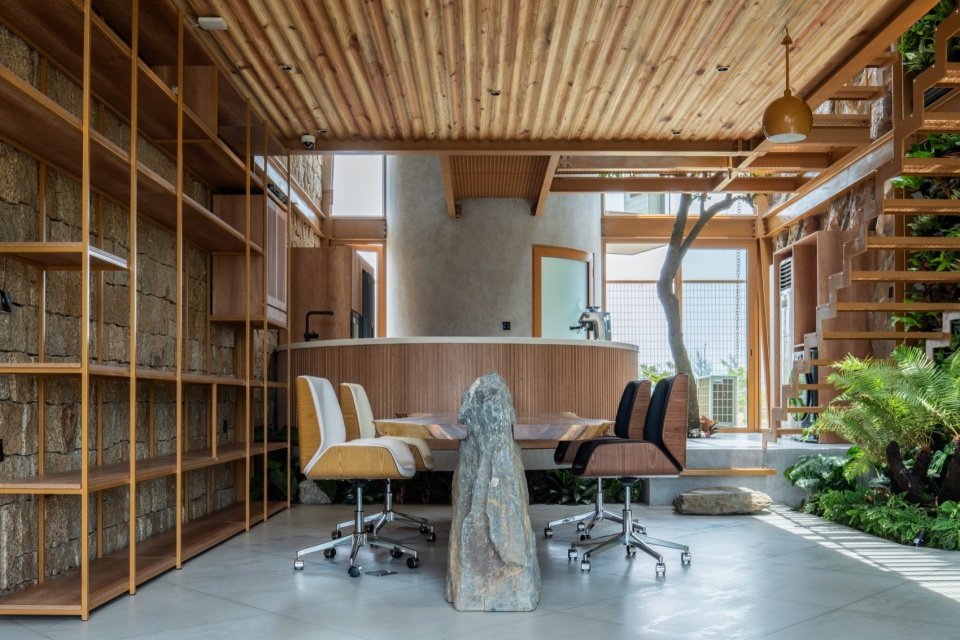

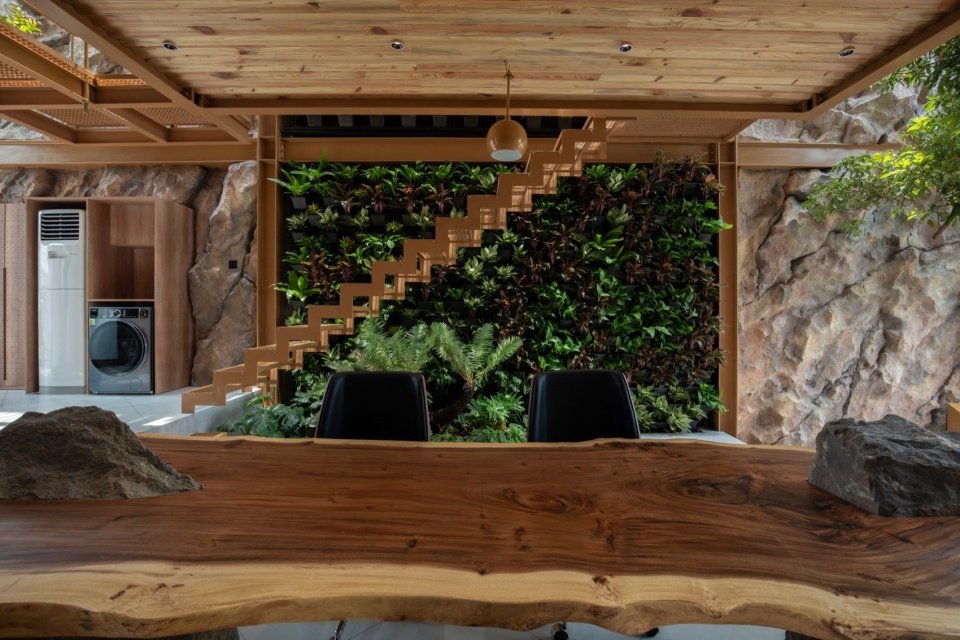

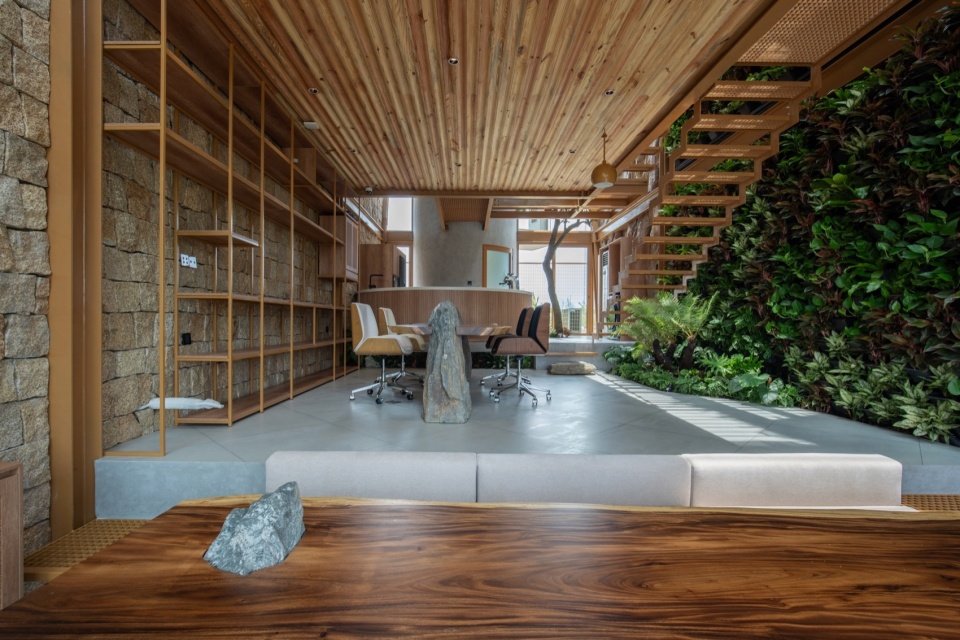

▼办公区，office area © To Huu Dung

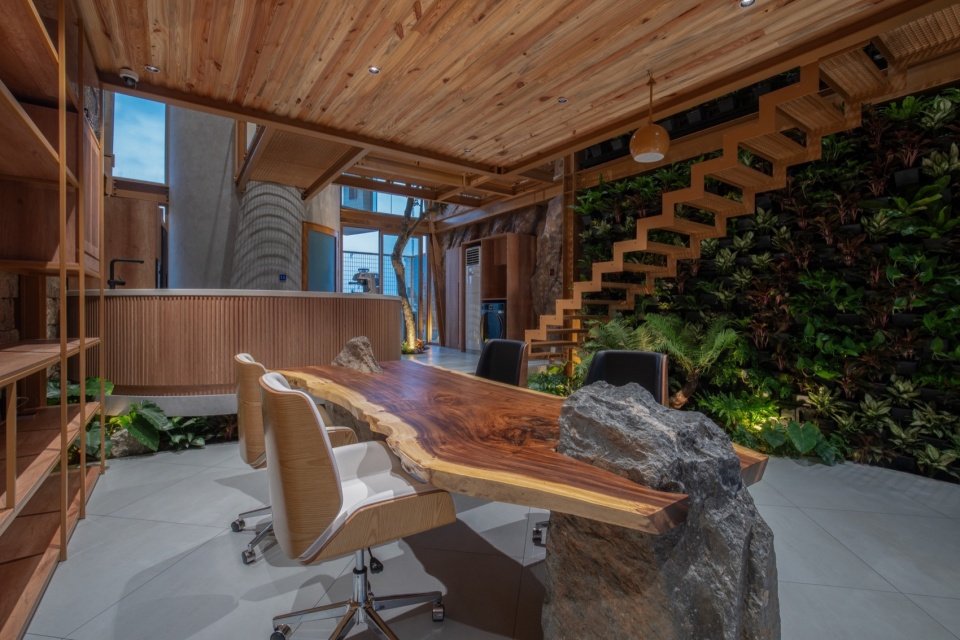

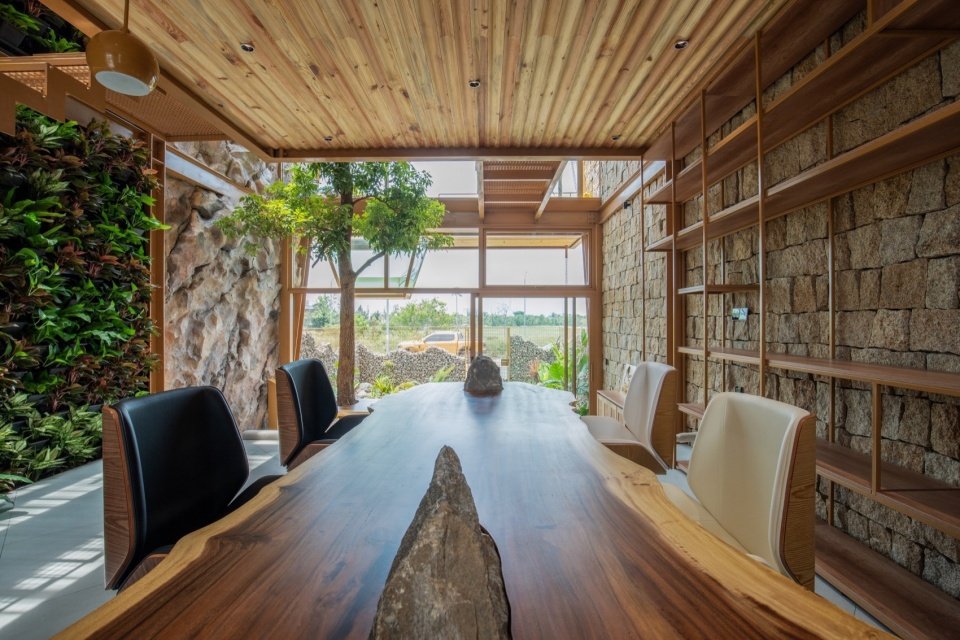

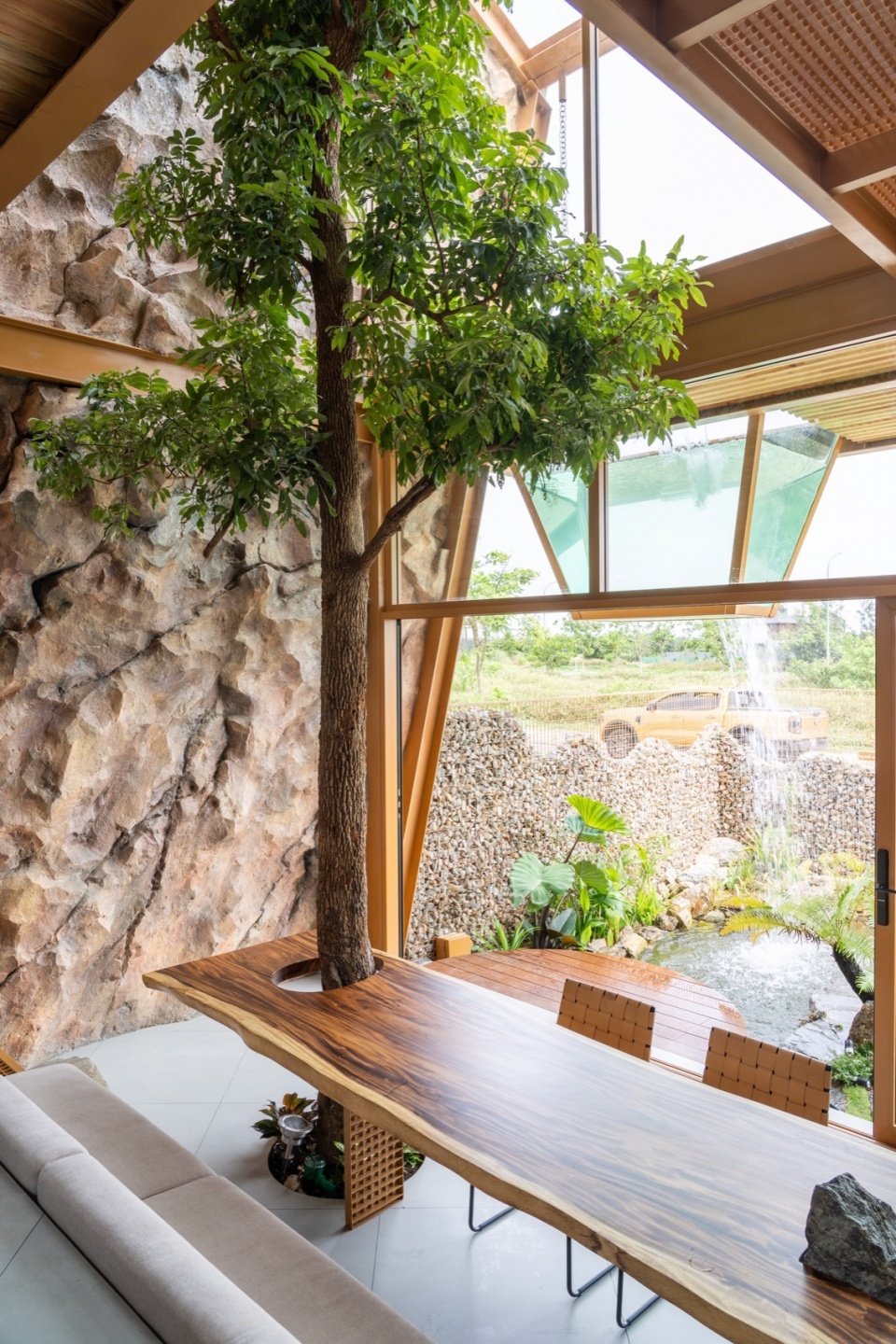

▼办公桌，office table © To Huu Dung

▼茶室空间，tea room area © To Huu Dung

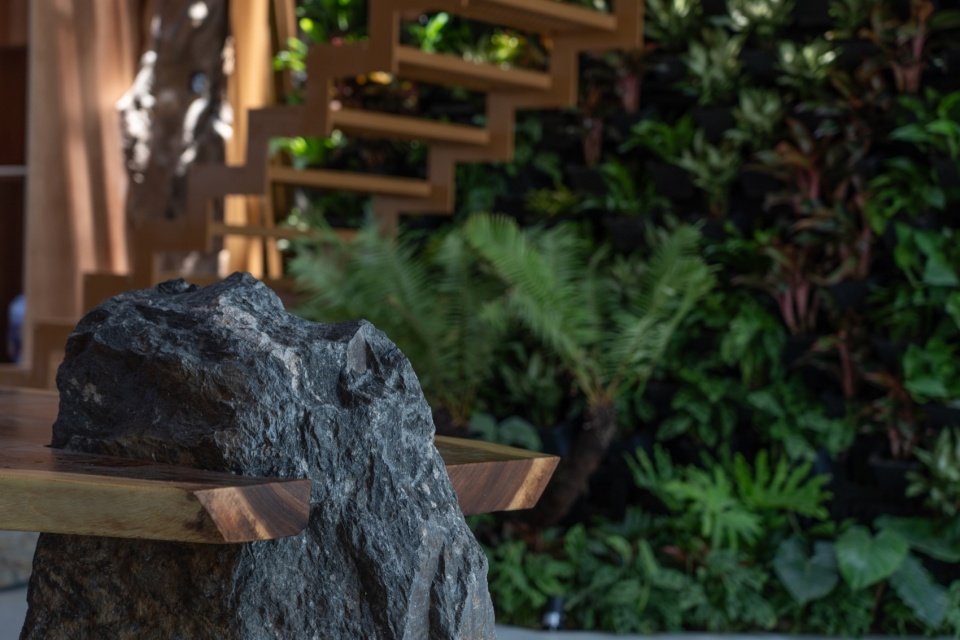

▼细部，details © To Huu Dung

▼室内设计结合了绿植，the interior design combines green plants © To Huu Dung

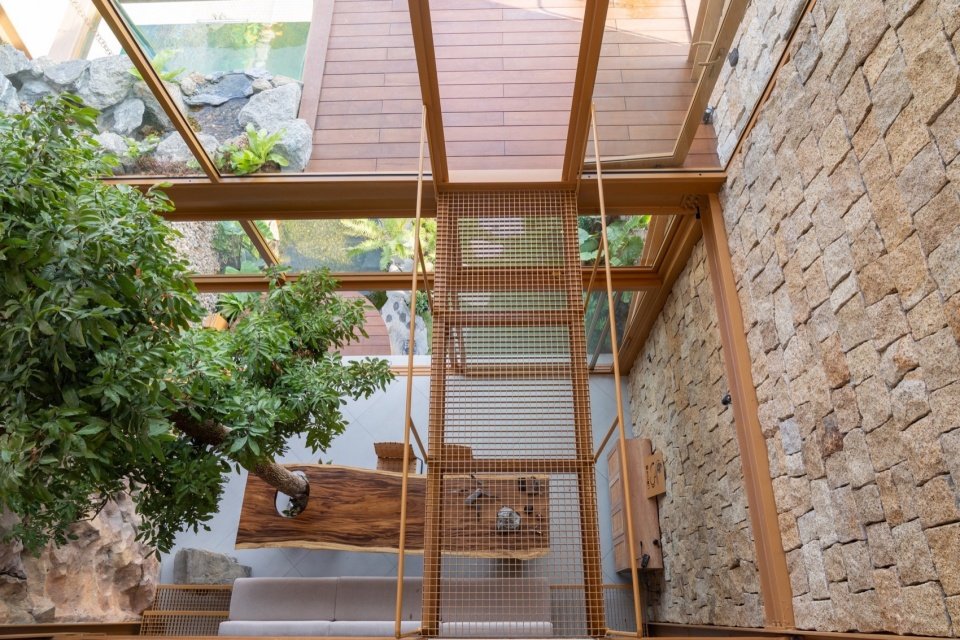

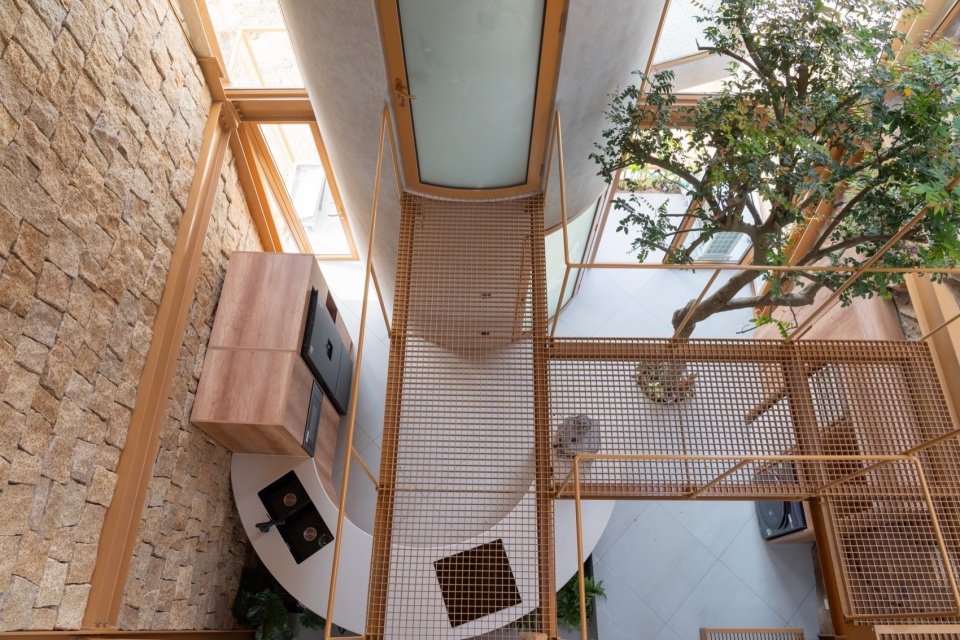

▼俯视顶层空间，overlooking the ground floor space © To Huu Dung

二层设有可转换的私人办公空间，隐藏式折叠床巧妙收纳在书桌背后，实现办公与居住的灵活转换。中部挑空结构有助于空气对流及日光渗透。宽敞的前阳台设置瀑布与大型玻璃鱼缸，鱼池与屋顶水景之间形成循环水流，不仅调节微气候，也营造出静谧的声景。

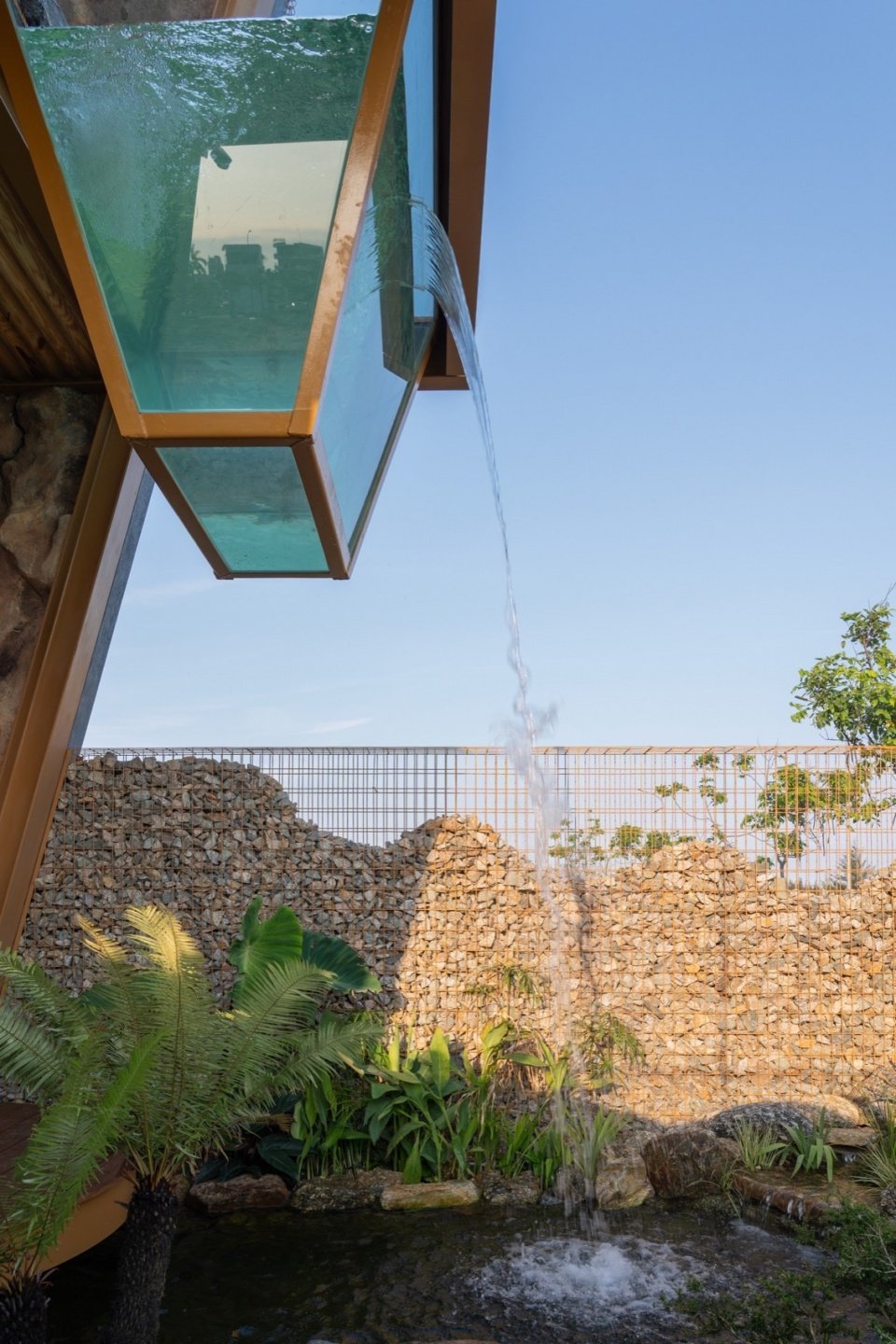

The first floor includes a private office that can seamlessly convert into a bedroom via a concealed foldable bed behind the work desk. A substantial double-height void facilitates natural air circulation and invites daylight deep into the interior. The spacious front balcony incorporates a cascading waterfall and a large glass fish tank, where water circulation between the garden pond and the rooftop feature helps regulate the microclimate and introduces a gentle, soothing soundscape throughout the building.

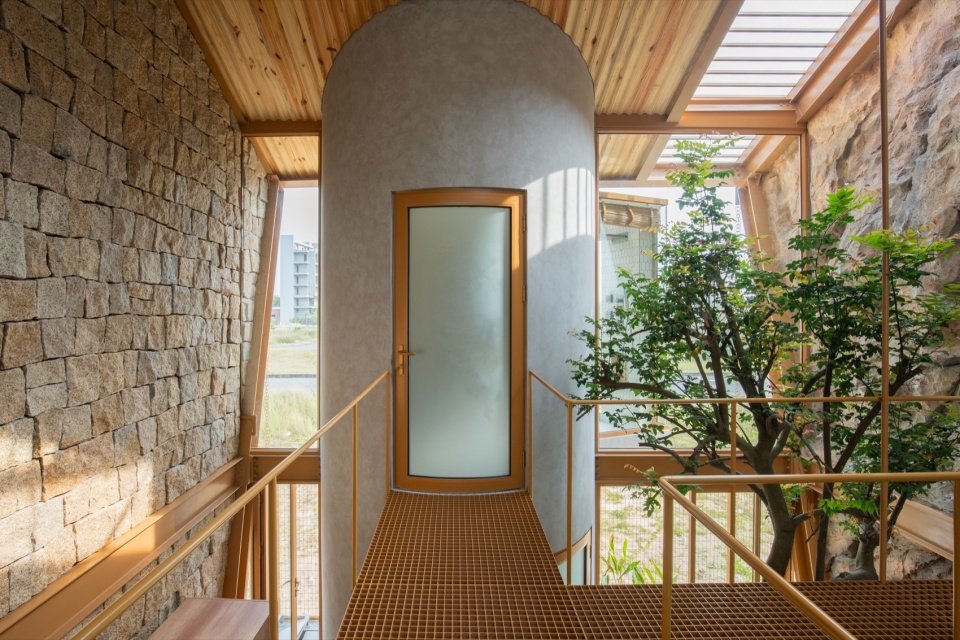

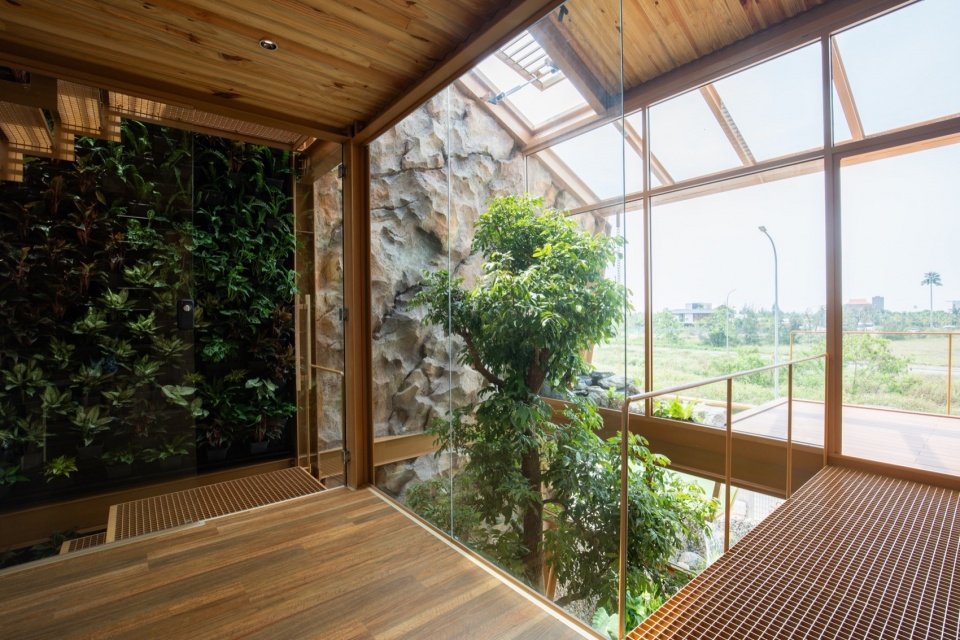

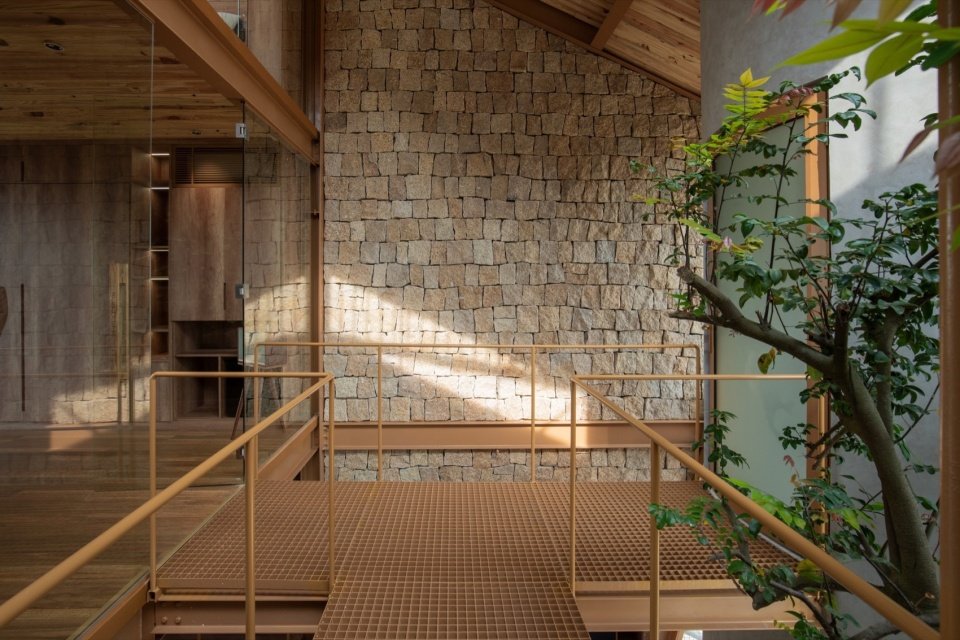

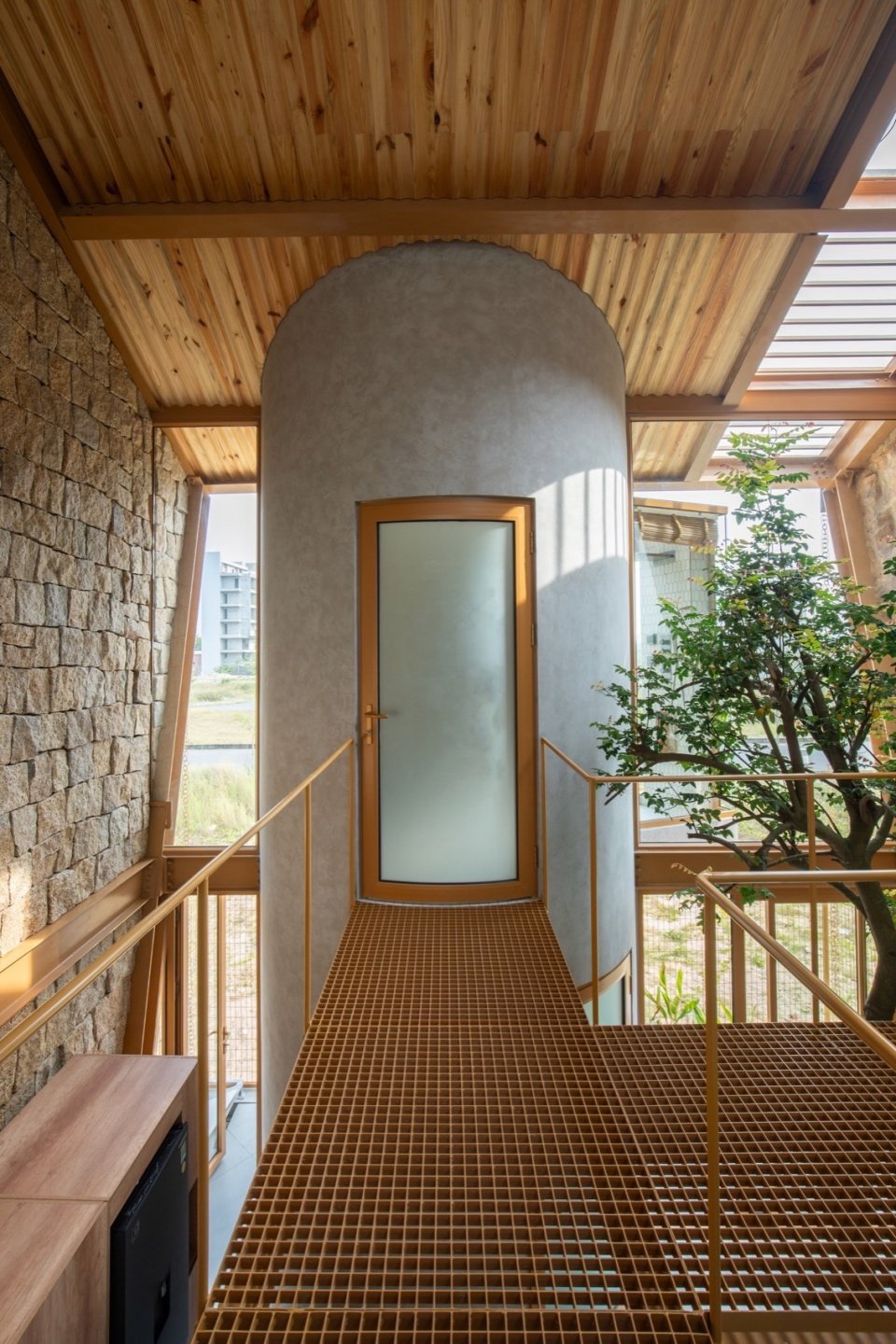

▼二层走廊，corridor of the upper floor © To Huu Dung

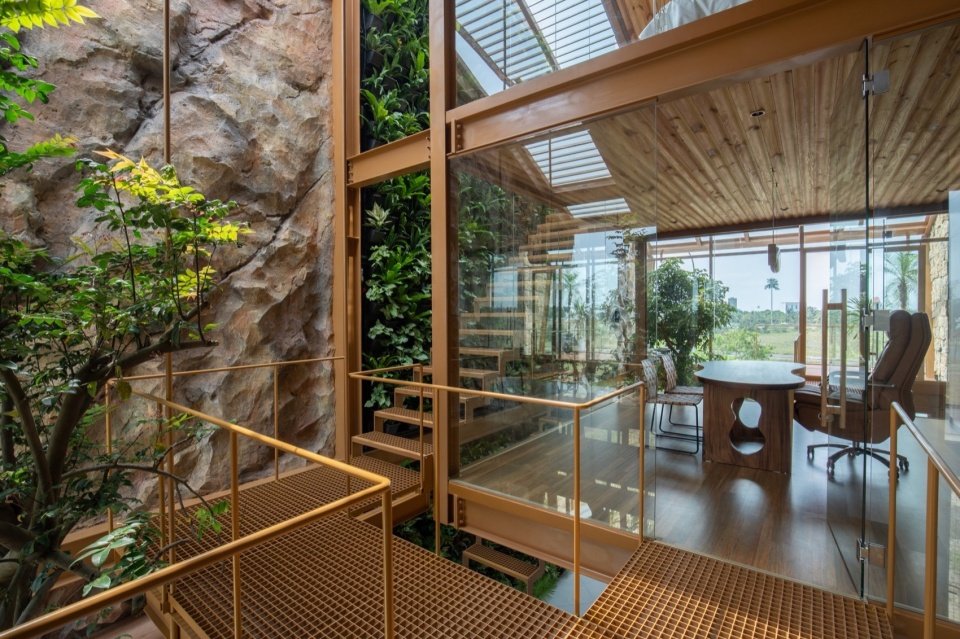

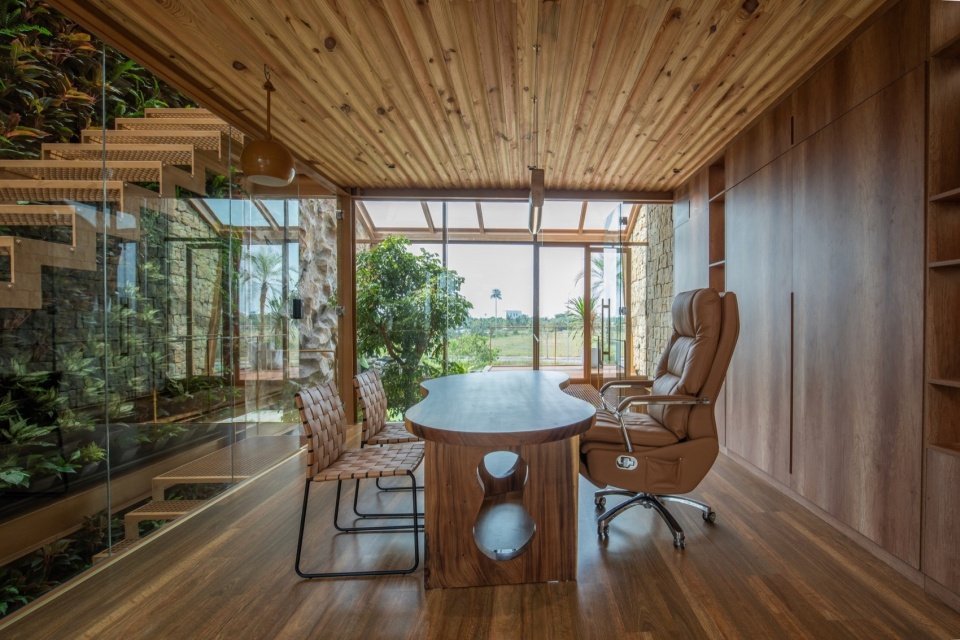

▼二层办公室，upper floor office area © To Huu Dung

▼二层走廊，corridor of the upper floor © To Huu Dung

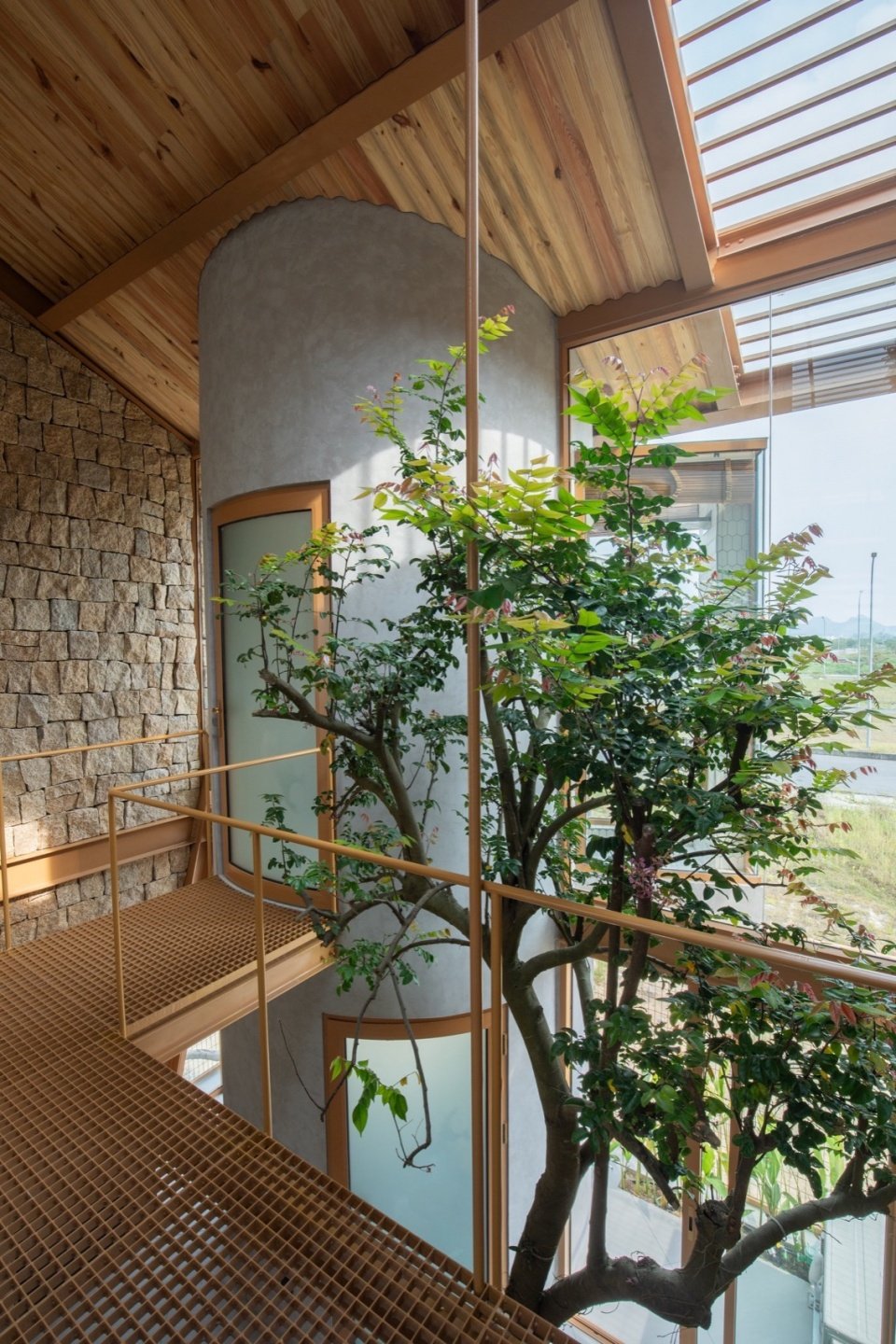

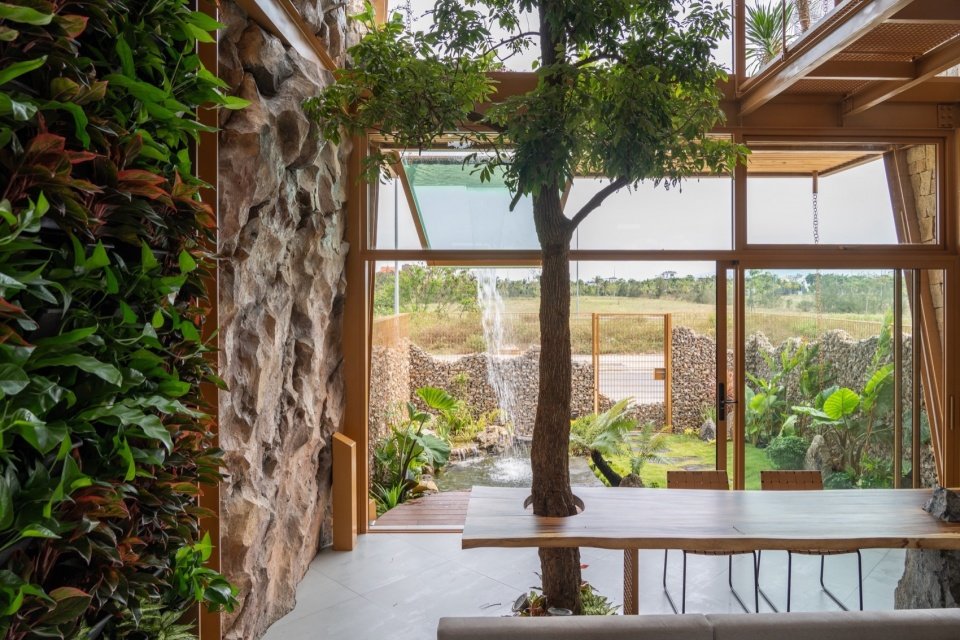

▼中庭，patio © To Huu Dung

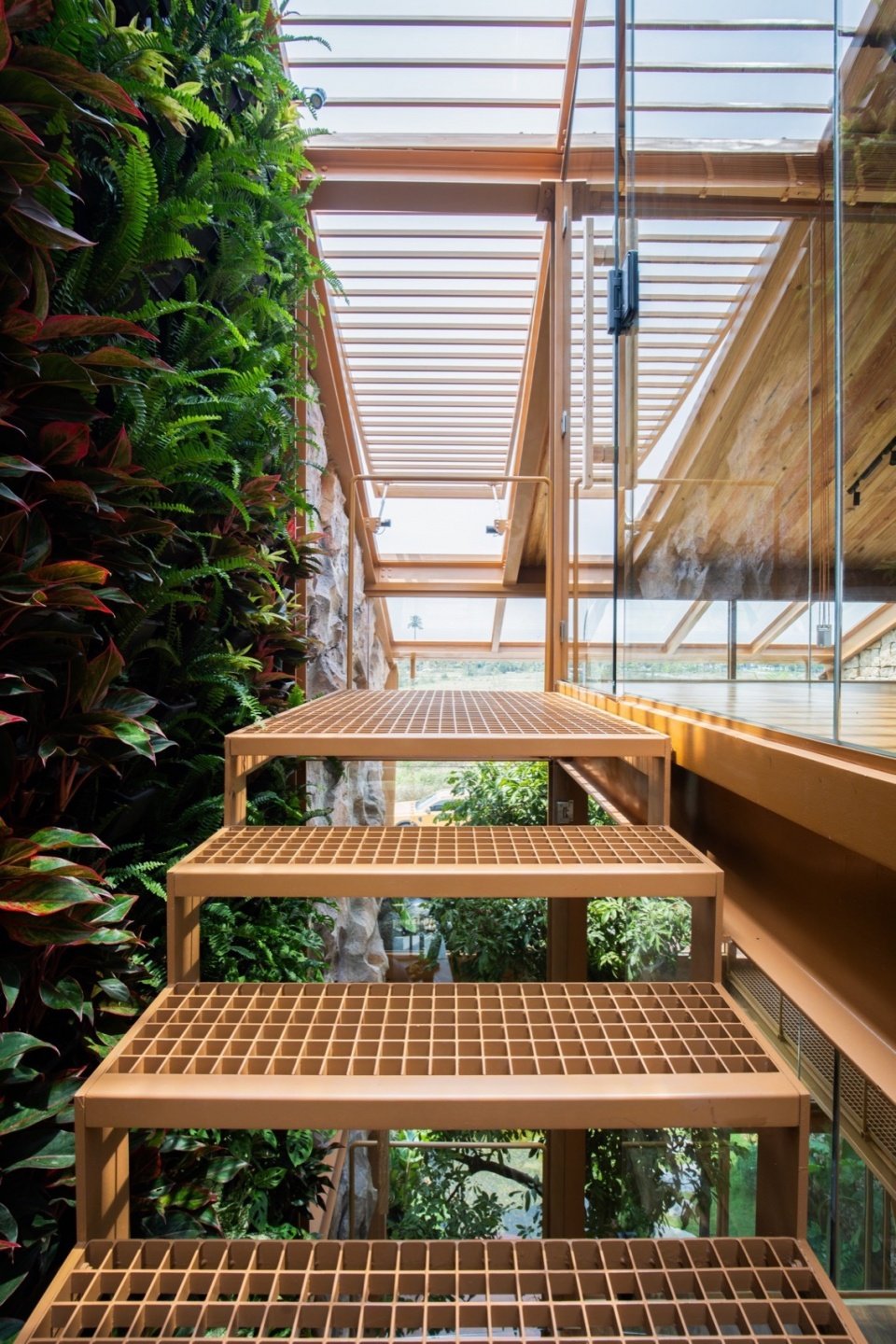

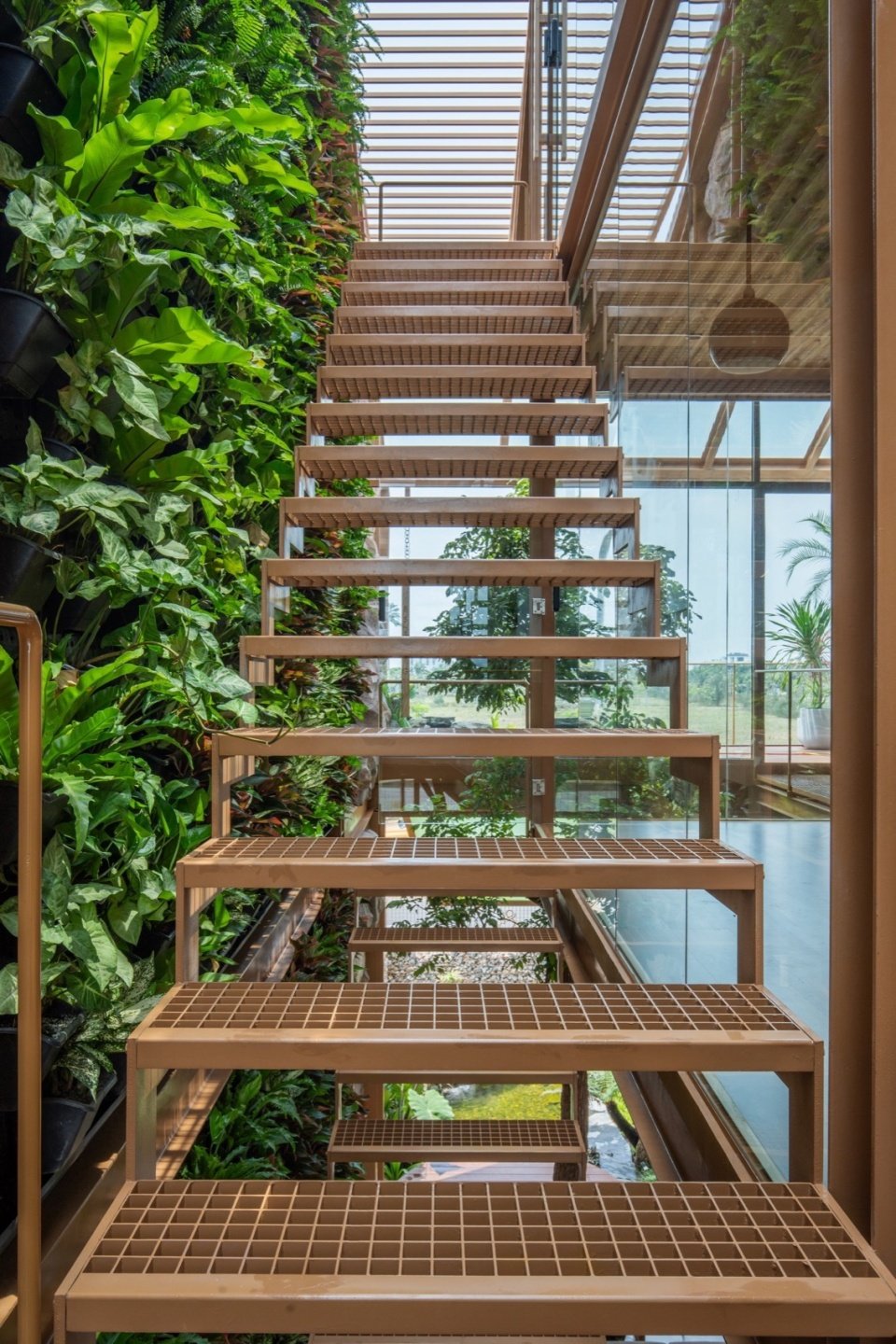

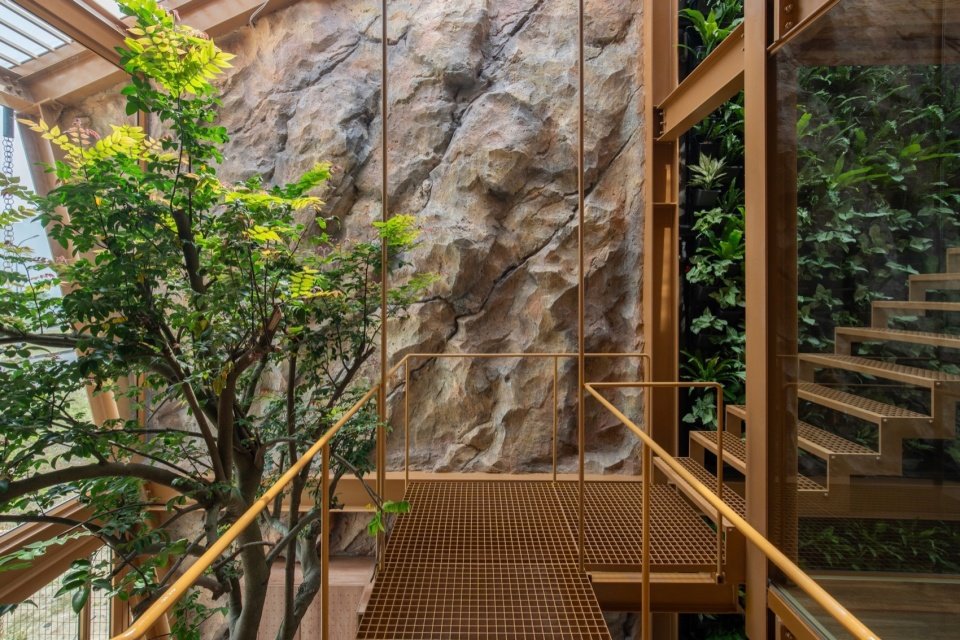

▼楼梯，staircase © To Huu Dung

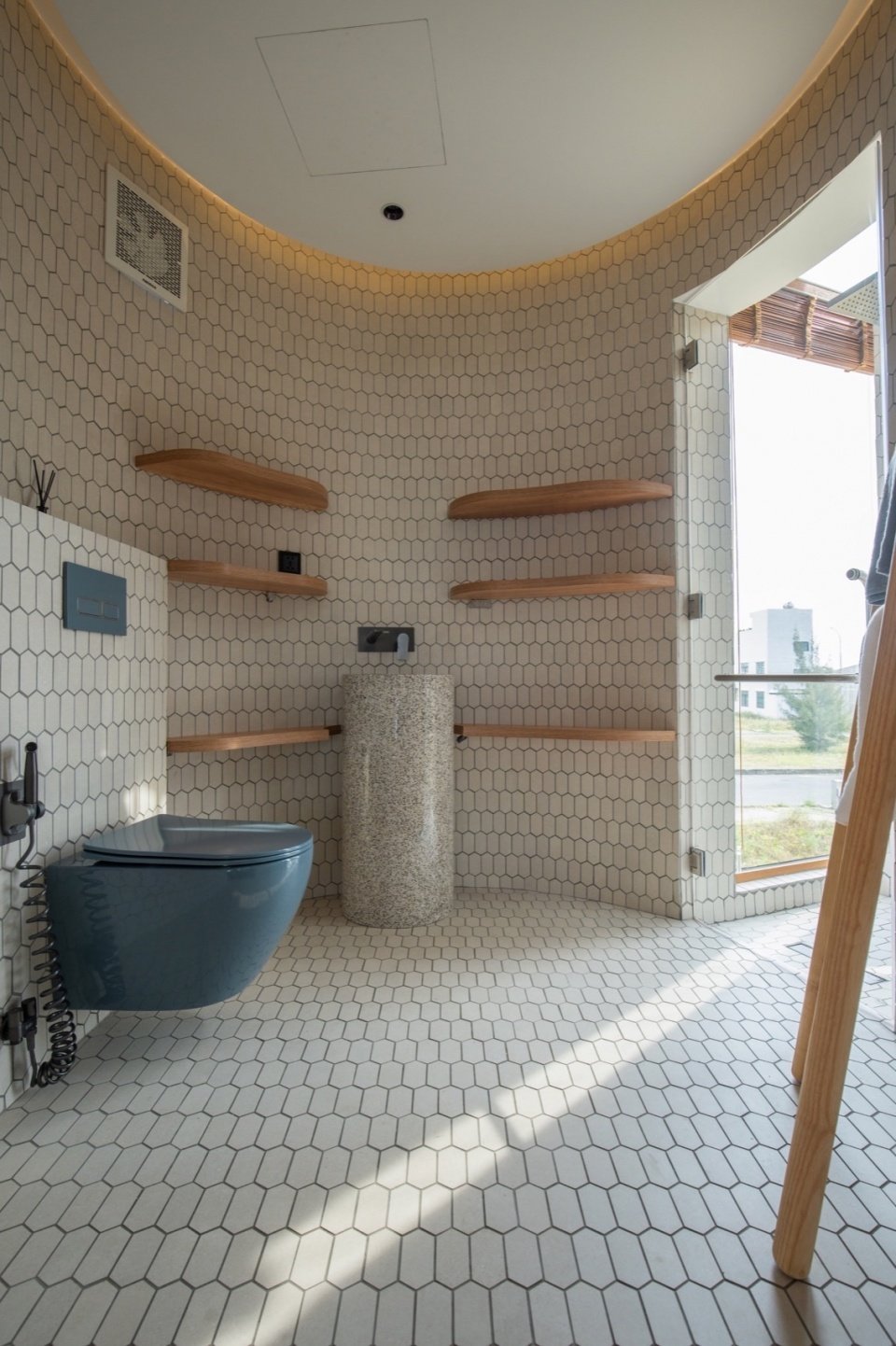

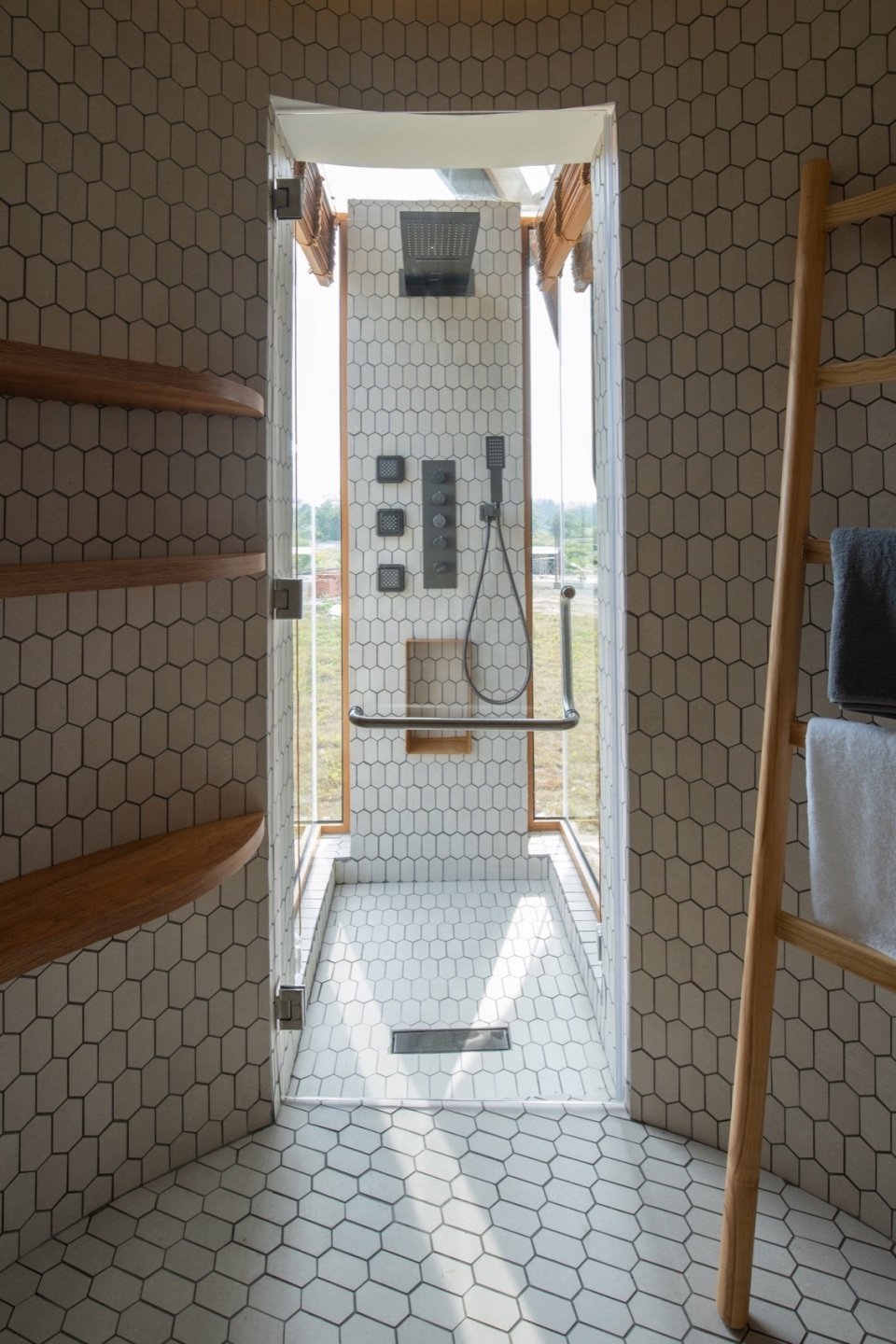

▼浴室，bathroom © To Huu Dung

▼浴室内部，interior of the bathroom © To Huu Dung

阁楼为小型卧室，可眺望周边180度景致。英亚体育官网玩法说明设有一面贯穿一至三层的立体绿墙，提升绿化覆盖率并改善室内空气质量。屋顶部分可开启，依据天气条件灵活调节通风与采光。其余屋面用于布置太阳能板、空调系统与水箱。全面支持可持续性能。

The attic level houses a small bedroom offering a sweeping 180-degree view of the surroundings. A continuous green wall stretches from the ground floor to the rooftop, expanding vertical greenery and enhancing indoor air quality. Part of the roof is operable, allowing for flexible natural ventilation and light access depending on weather conditions.
The larger roof area accommodates solar panels, air conditioning systems, and water tanks, further supporting the project’s sustainable ambitions.

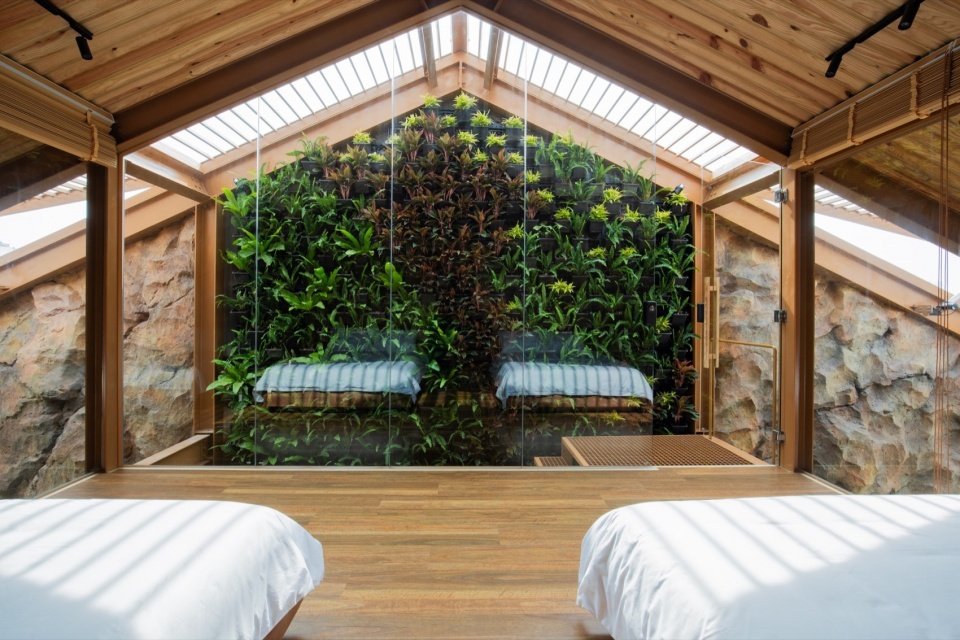

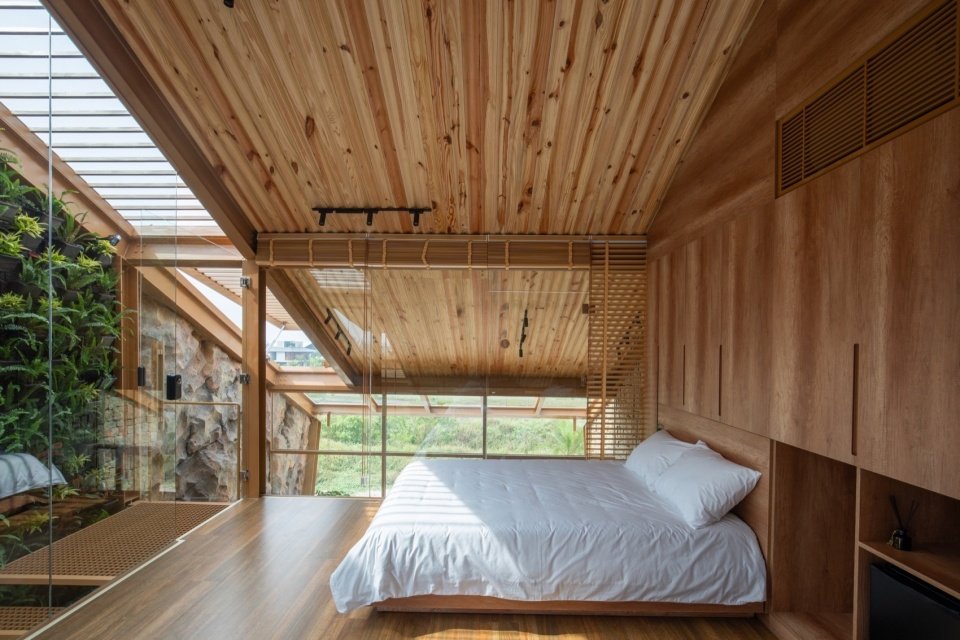

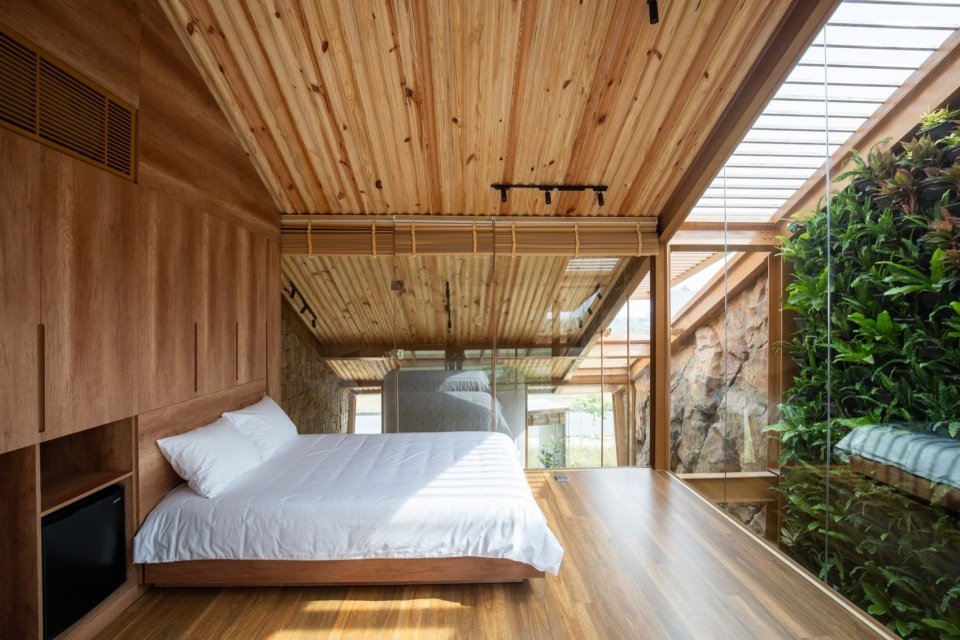

▼阁楼卧室，the attic level bedroom © To Huu Dung

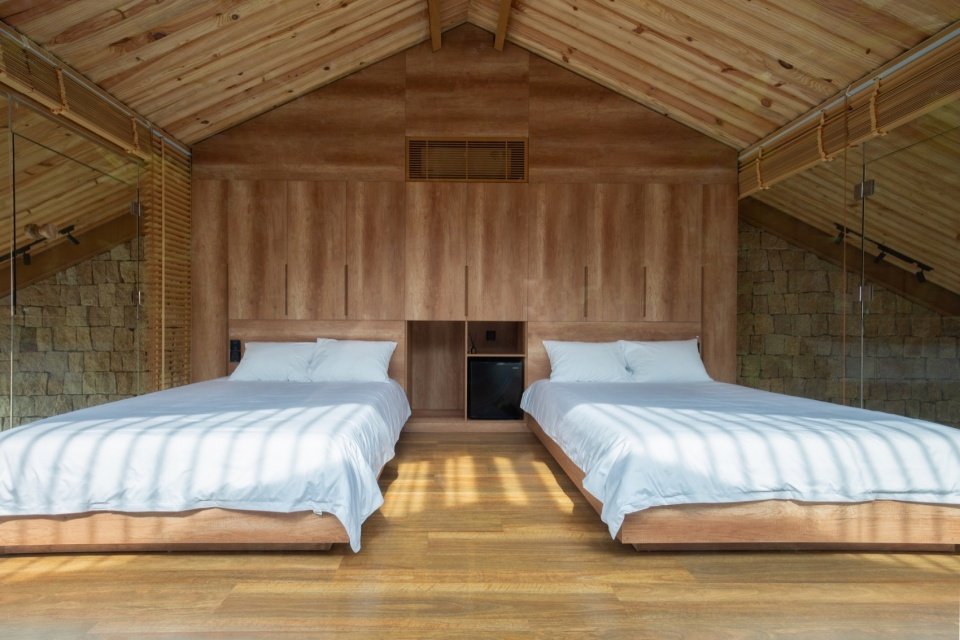

▼卧室，bedroom © To Huu Dung



项目成果
Outcomes

通过系统性的整合策略，Ga.o之家成功减少60–80%的化石能源使用，每年可避免超过8.5吨二氧化碳排放。预计整个运营周期内将抵消超过200吨碳排放。相当于种植约3500棵树。

Through these integrated strategies, Ga.o House achieves a 60–80% reduction in fossil energy use and prevents the emission of over 8.5 tons of CO₂ annually. Over its operational lifespan, the project is expected to offset more than 200 tons of carbon — the equivalent of planting approximately 3,500 trees.

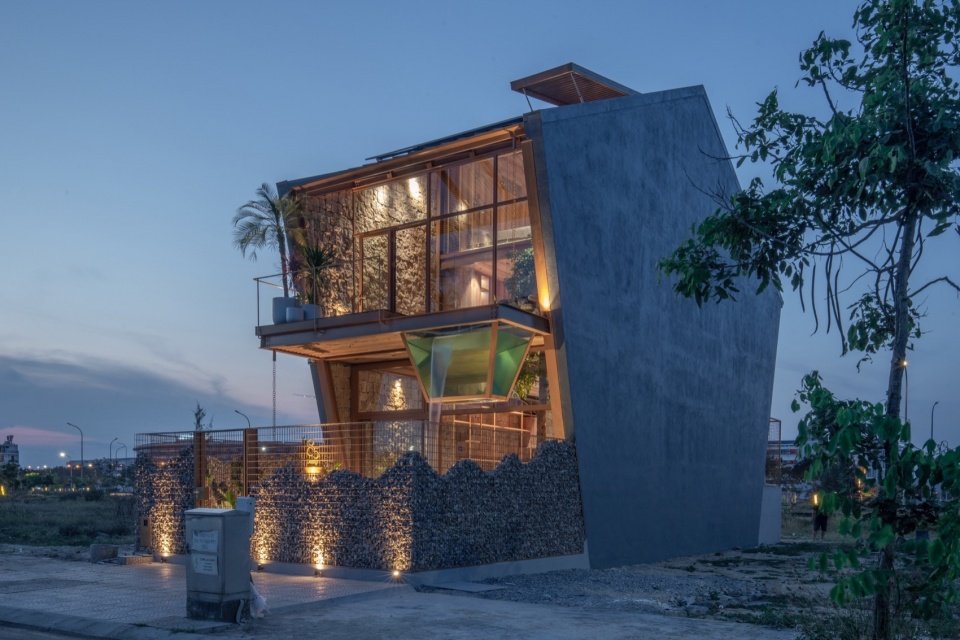

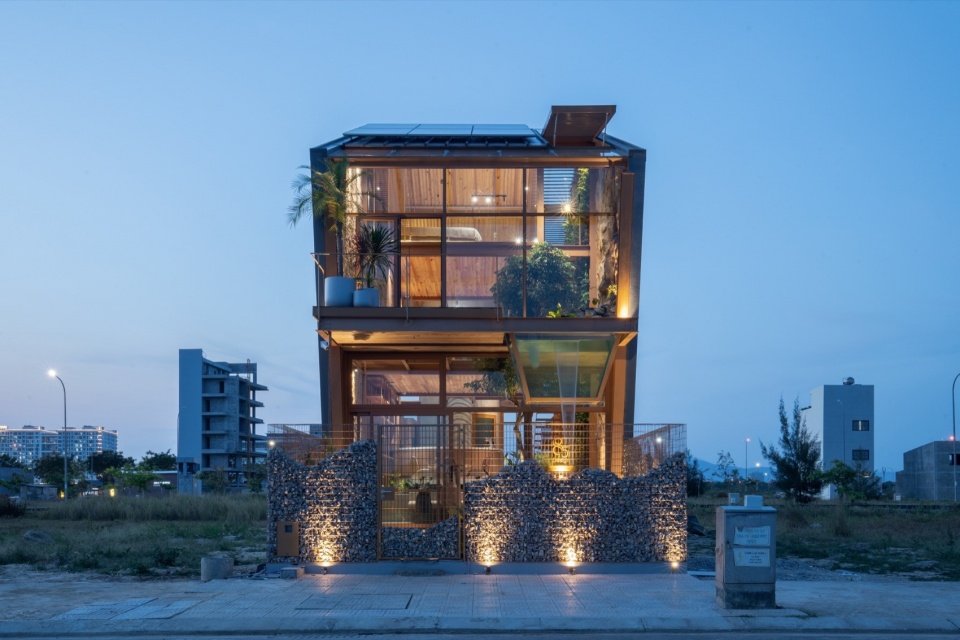

▼外观夜景，night view of exterior © To Huu Dung

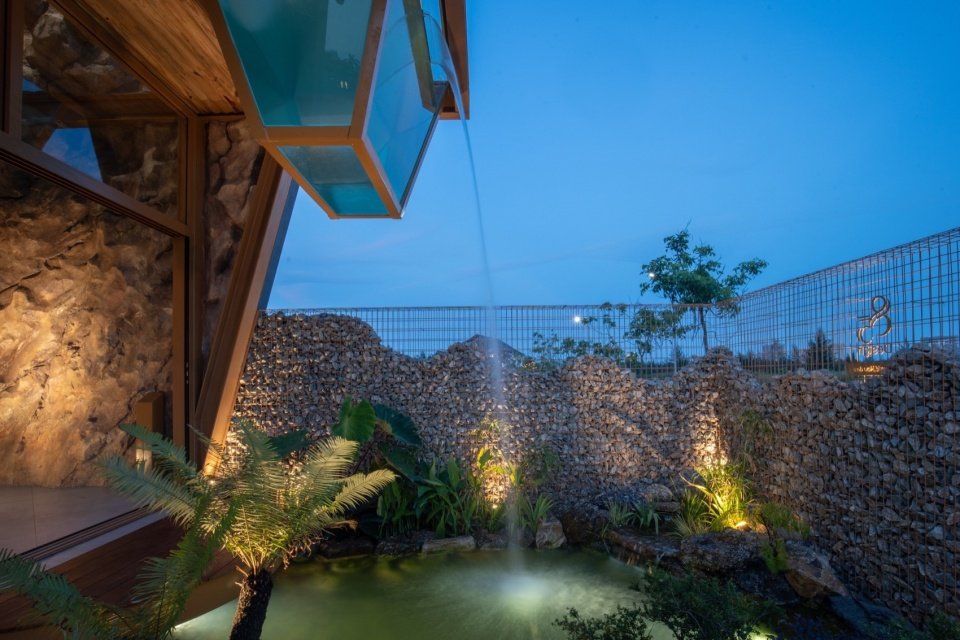

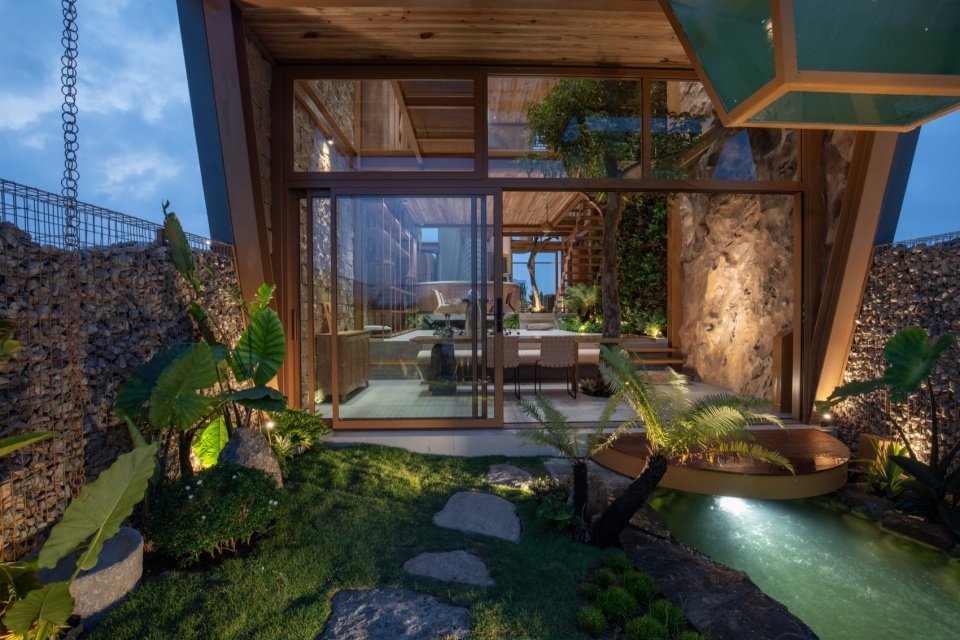

▼水池夜景，night view of the pool © To Huu Dung

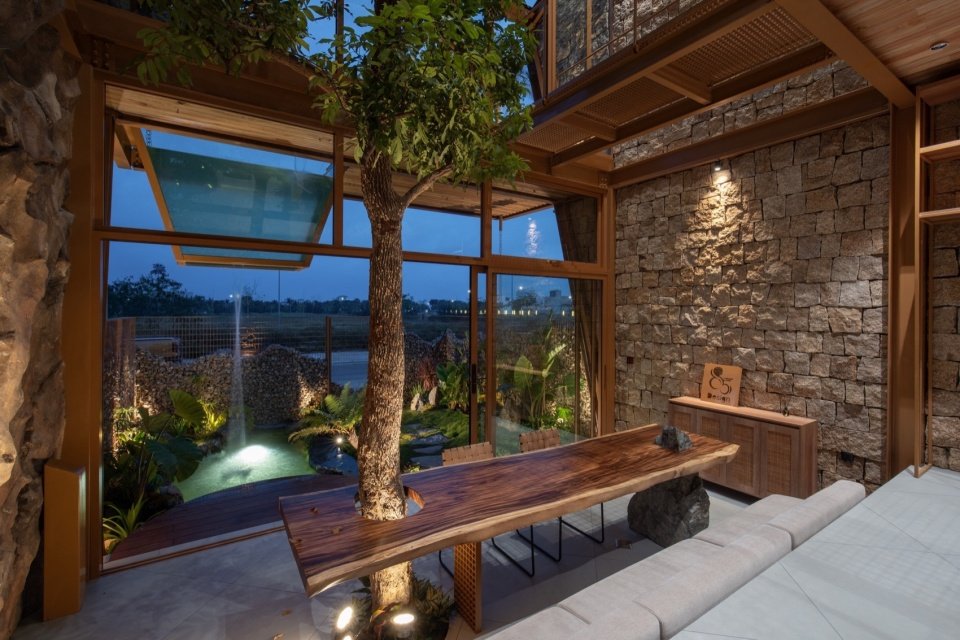

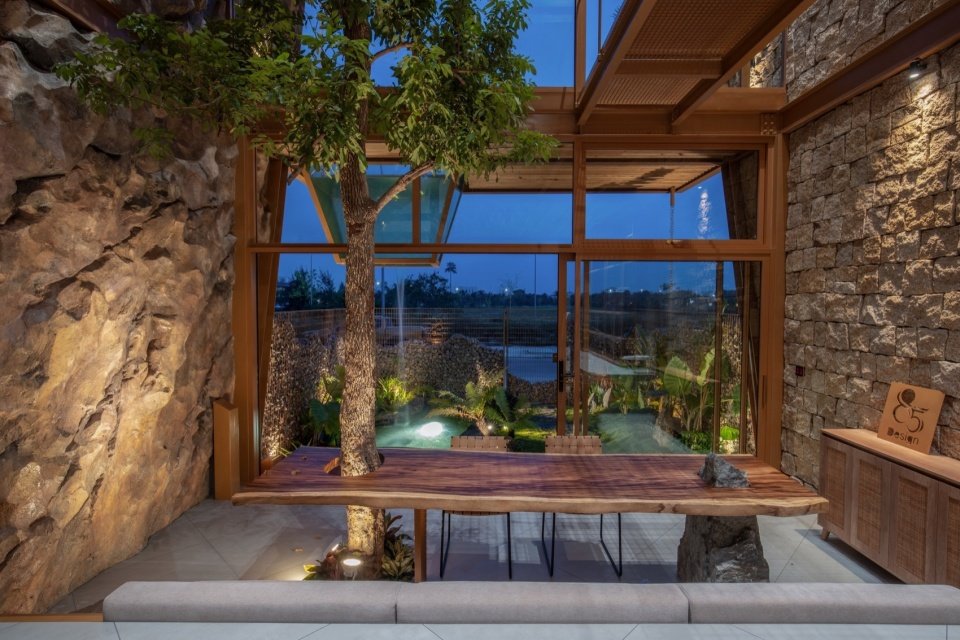

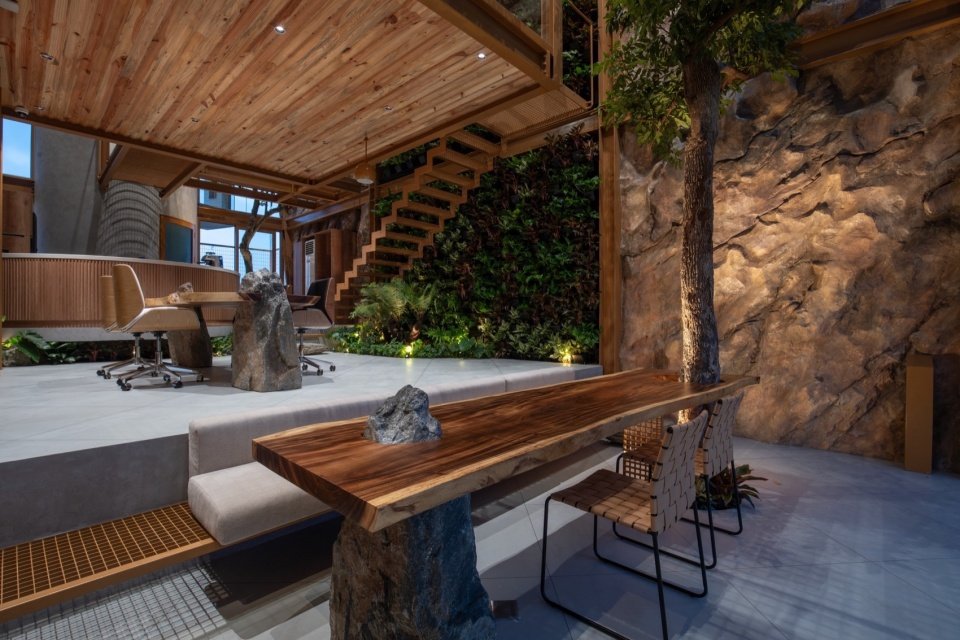

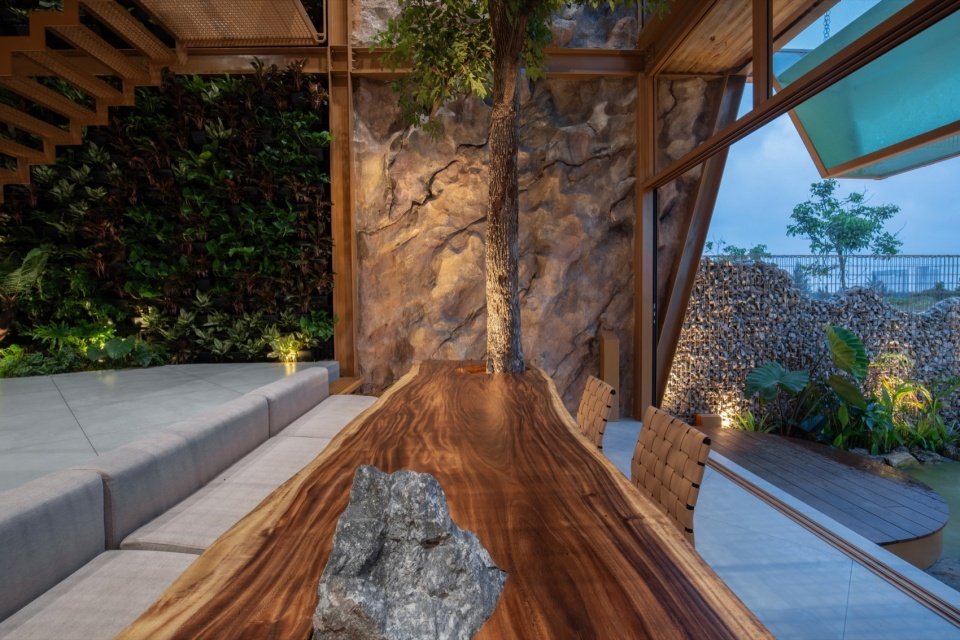

▼一层夜景，night view of the ground floor © To Huu Dung

▼室内夜景，interior night views © To Huu Dung

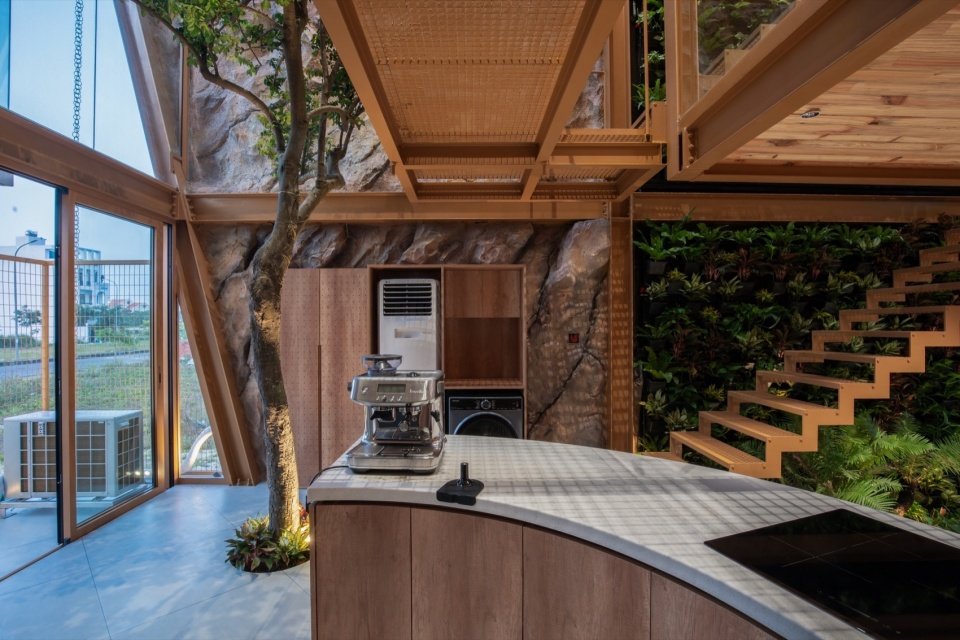

▼吧台夜景，night view of the bar © To Huu Dung

▼二层夜景，night view of upper floor © To Huu Dung

▼二层办公室夜景，night view of the office © To Huu Dung

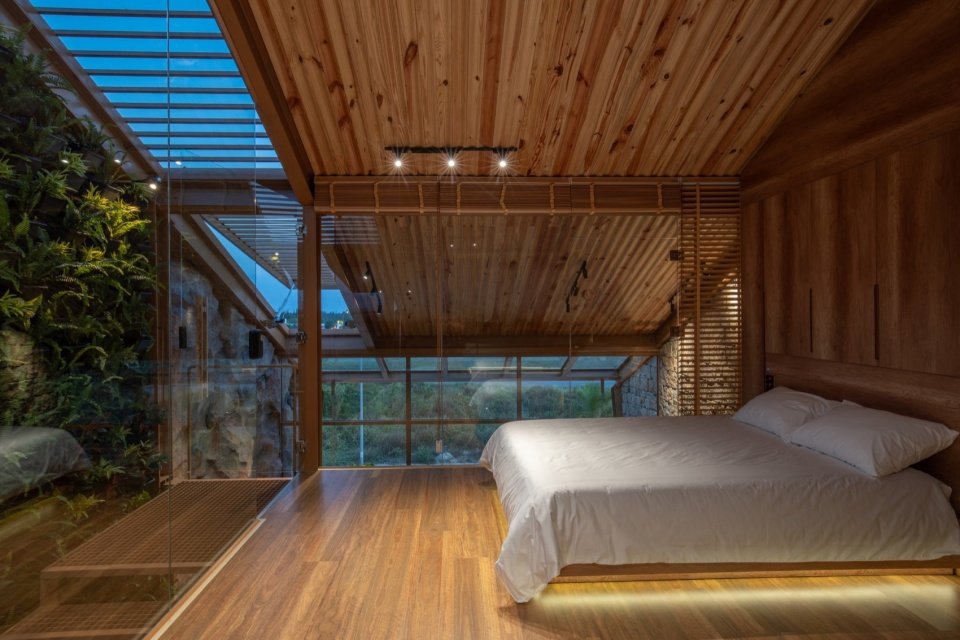

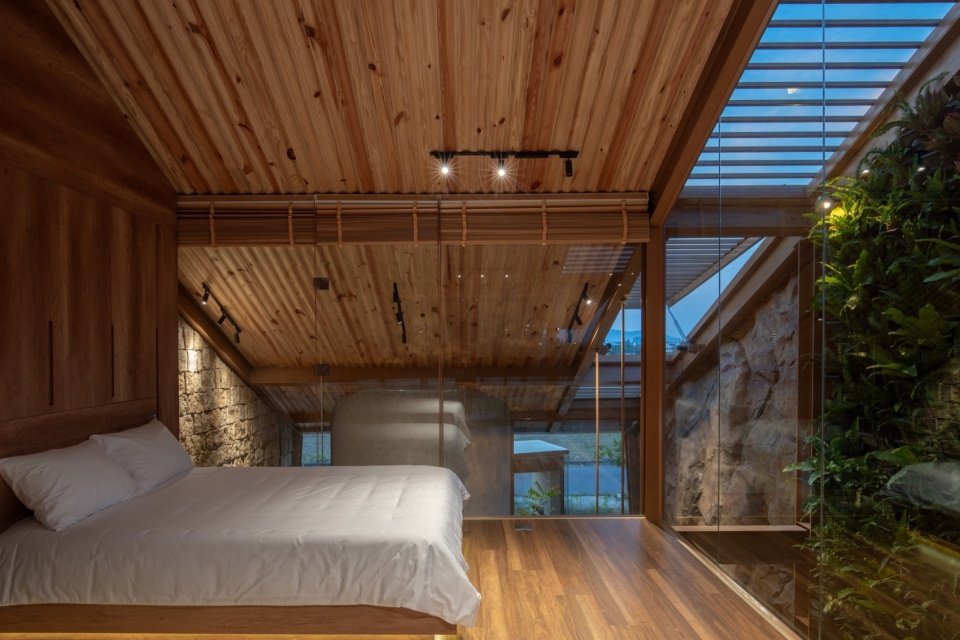

▼卧室夜景，night view of the bedroom © To Huu Dung



项目意义
Significance

Ga.o之家不仅是居住与工作的共存空间，更是绿色英亚体育官网玩法说明未来的有力注解。它体现了一种关注环境的设计理念。为全球迈向“净零碳”目标贡献了一份小而坚定的力量。

Ga.o House is not simply a cohabitation of home and work; it stands as a living testament to a greener architectural future. It reflects a mindful design approach that prioritizes environmental stewardship, contributing a modest yet meaningful step toward the global Net Zero movement.

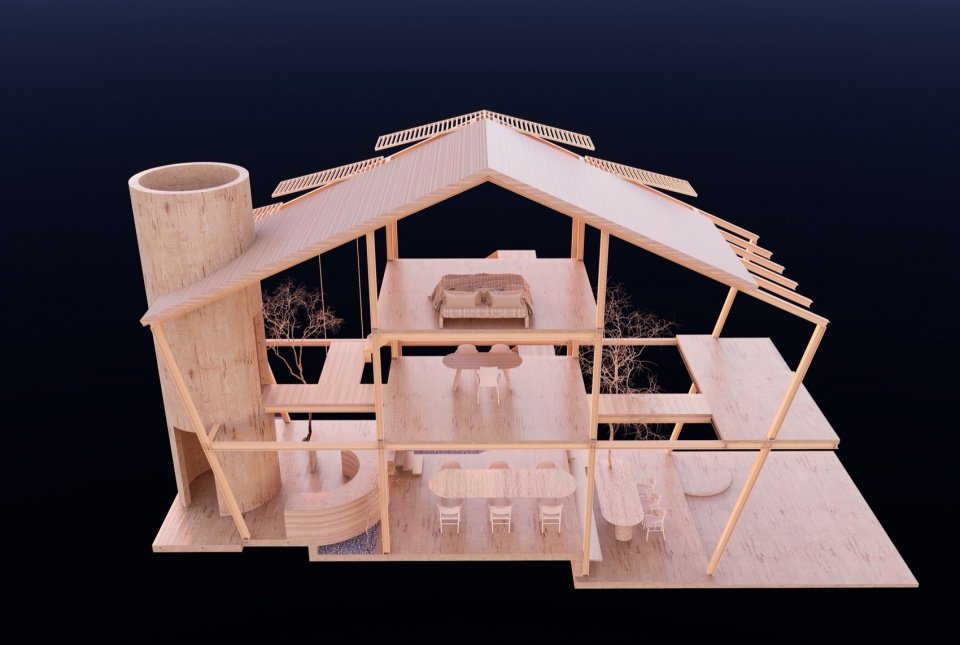

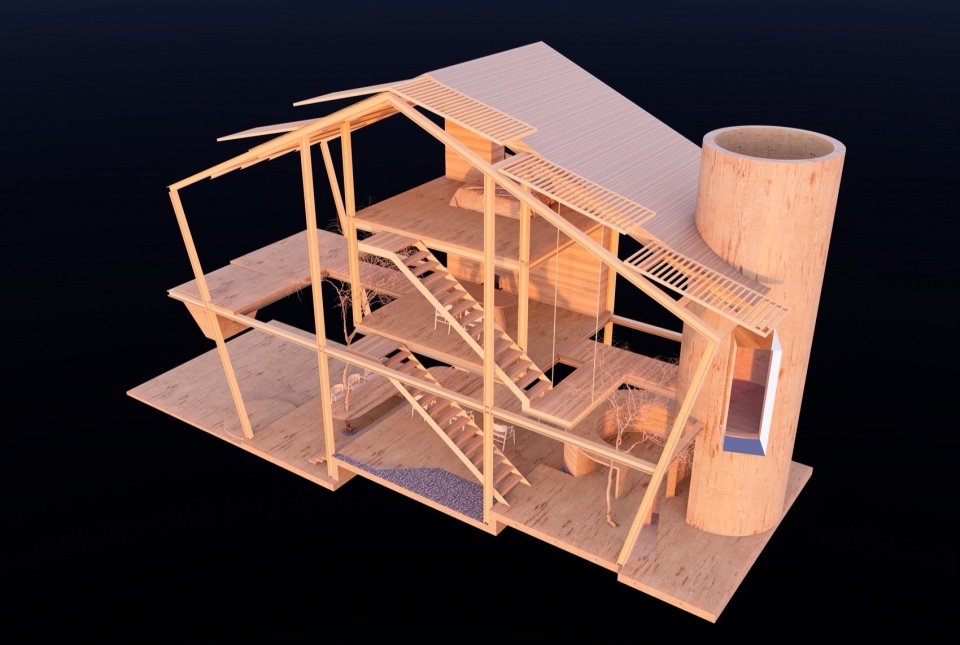

▼模型，model ©85 Design

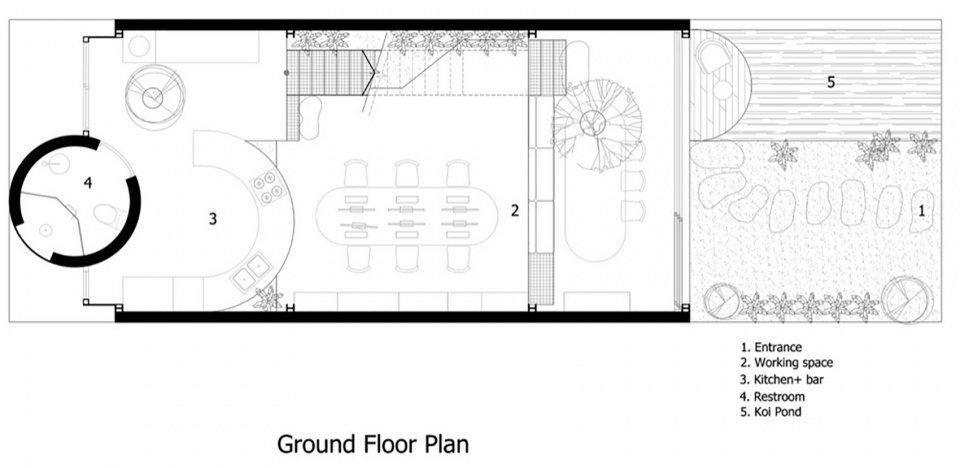

▼一层平面图，ground floor plan ©85 Design

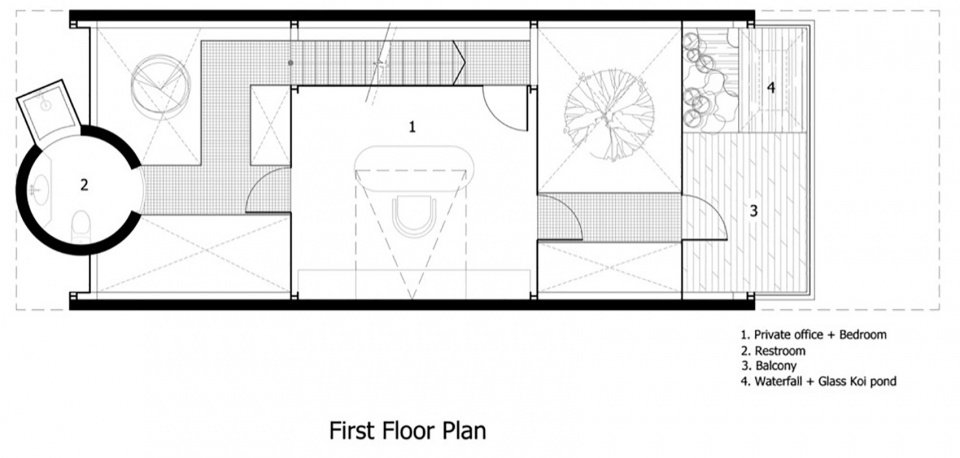

▼二层平面图，first floor plan ©85 Design

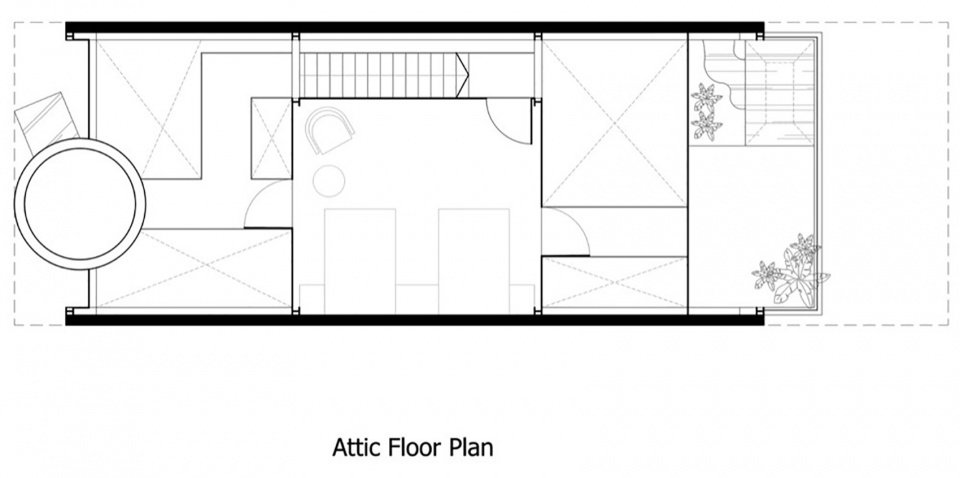

▼阁楼平面图，attic floor plan ©85 Design

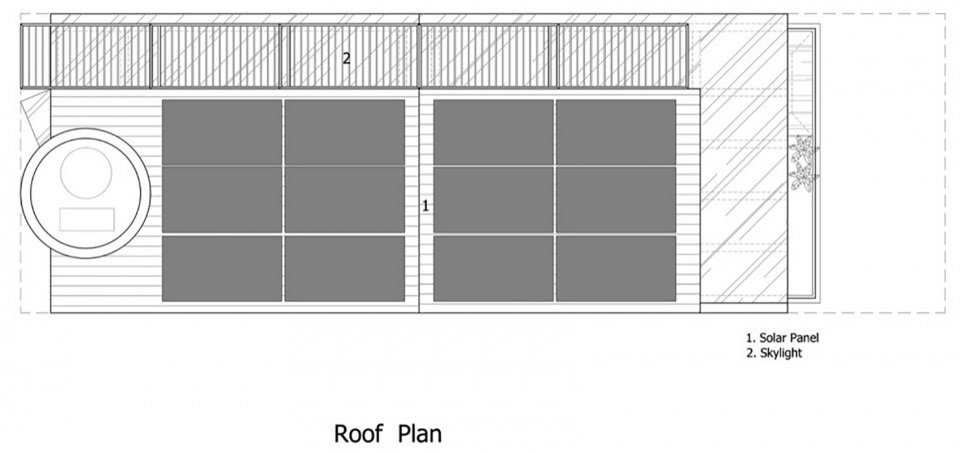

▼屋顶平面图，roof plan ©85 Design

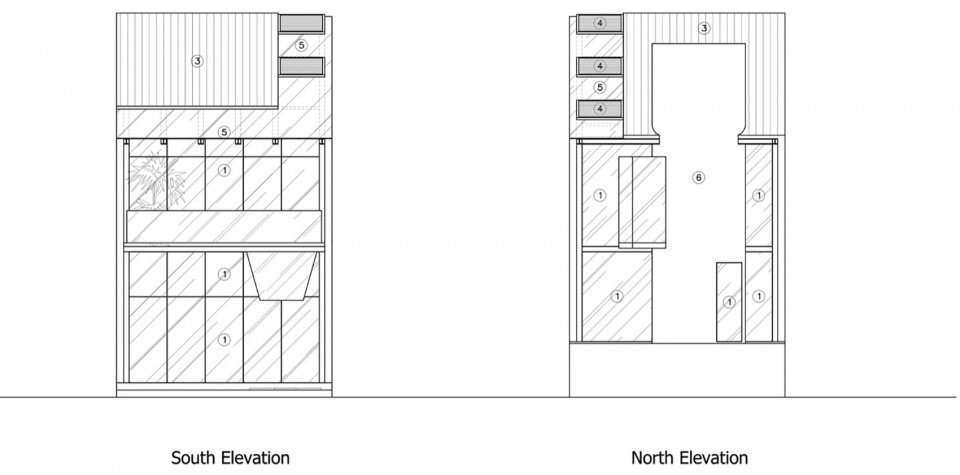

▼立面图，elevations ©85 Design

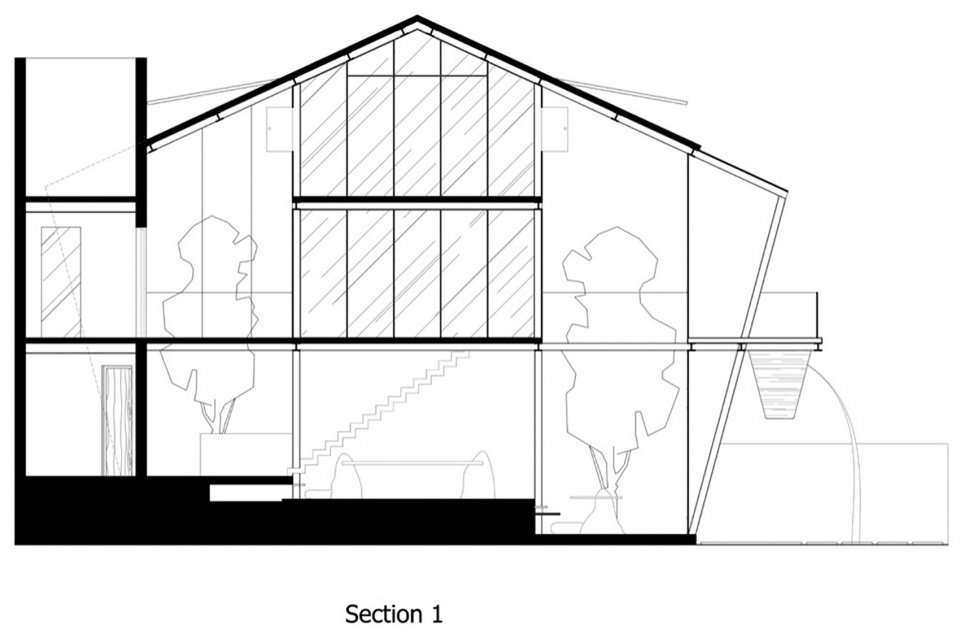

▼剖面图，sections ©85 Design

Project Name: Ga.o House
Project locations: FPT city, DaNang, VietNam
Building Function: Houses/ Office
Completion Year: 2025
Gross Built Area : 172m2
Office Name: 85 Design
Office Website: 85architecture.com
Contact email: info@85architecture.com; tohuudung.arch@gmail.com
Lead Architects: To Huu Dung
Lead Architects e-mail: arch.tohuudung@85architecture.com ; tohuudung.arch@gmail.com
Photographer
Photo Credits: To Huu Dung
Photographer’s e-mail: arch.tohuudung@85architecture.com ; tohuudung.arch@gmail.com
