感谢 OLI Architecture予 gooood 分享以下内容。 同题参见更多关于他们：OLI Architecture on gooood。
Appreciation towards OLI Architecture for providing the following description:

深深植根于威士忌酿造传统，以及这一工艺与地域之间深厚的联系，帝亚吉欧Diageo“云拓”酒厂综合体从大理肥沃谷地的非凡自然环境中汲取设计灵感。 相关文章设计强调一种感官性的自然体验，通过富有雕塑感的空间、肌理丰富的材料、光线与声音。共同营造出深度沉浸式的空间感受。

Deeply rooted in the tradition of whisky-making and the practice’s profound connection to place, the Diageo YunTuo complex draws design inspiration from its extraordinary environment of the fertile Dali valley. The design emphasizes a sensory approach to nature, using sculpted spaces, richly textured materials, light, and sound to orchestrate a deeply immersive experience.

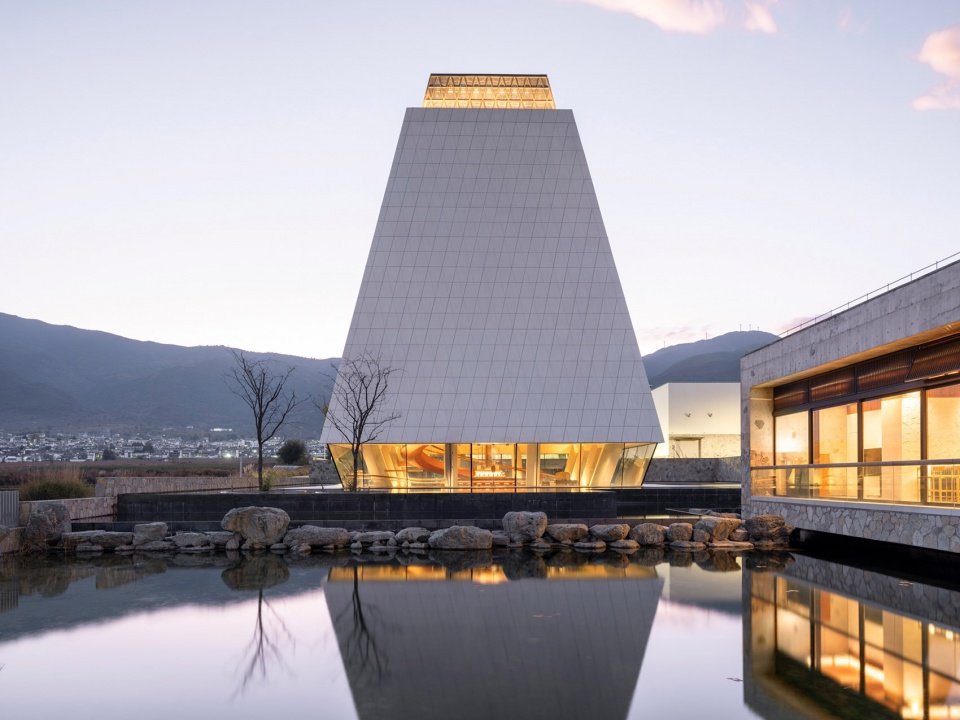

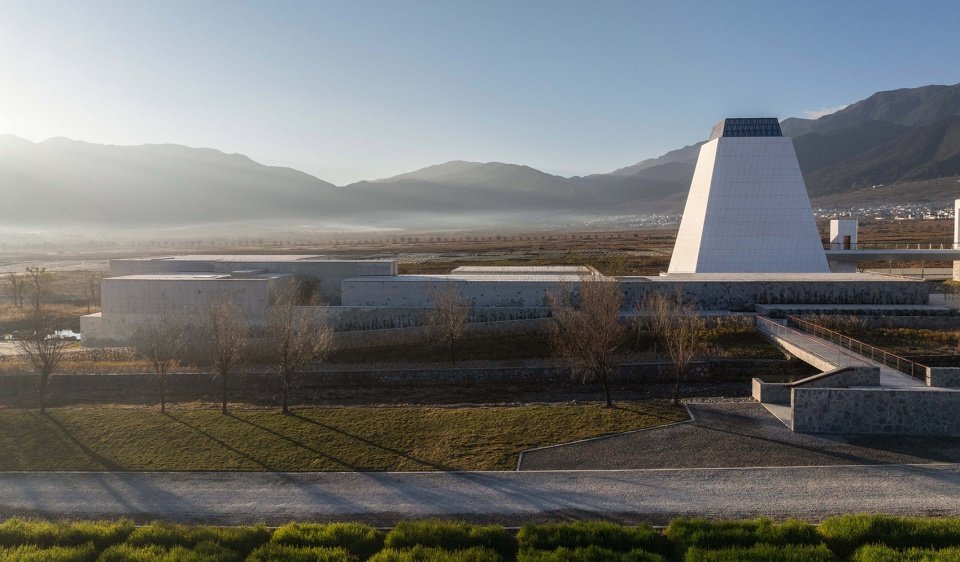

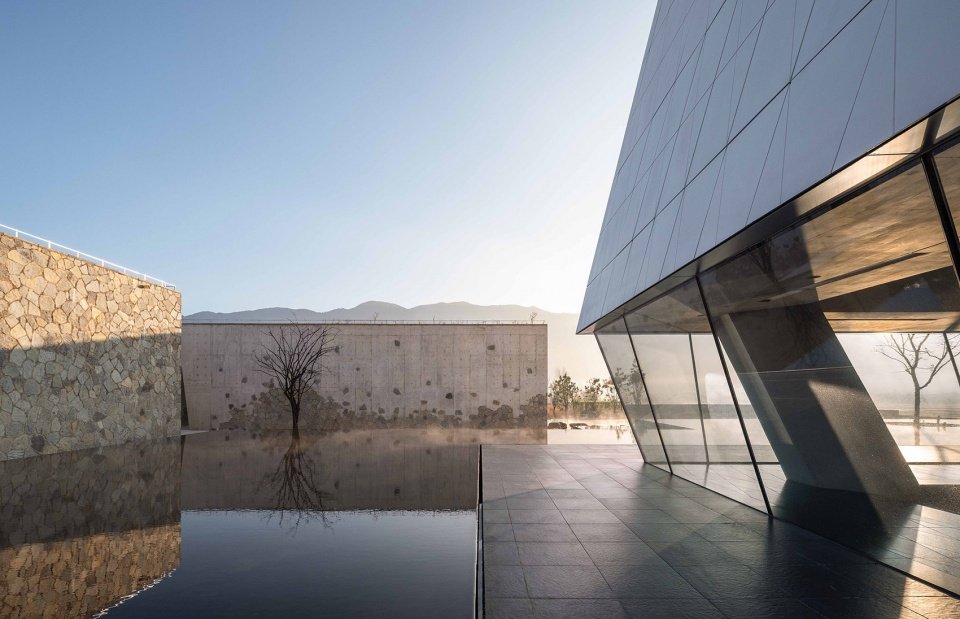

▼酒厂外观，Exterior of the winery complex © Tian Fangfang

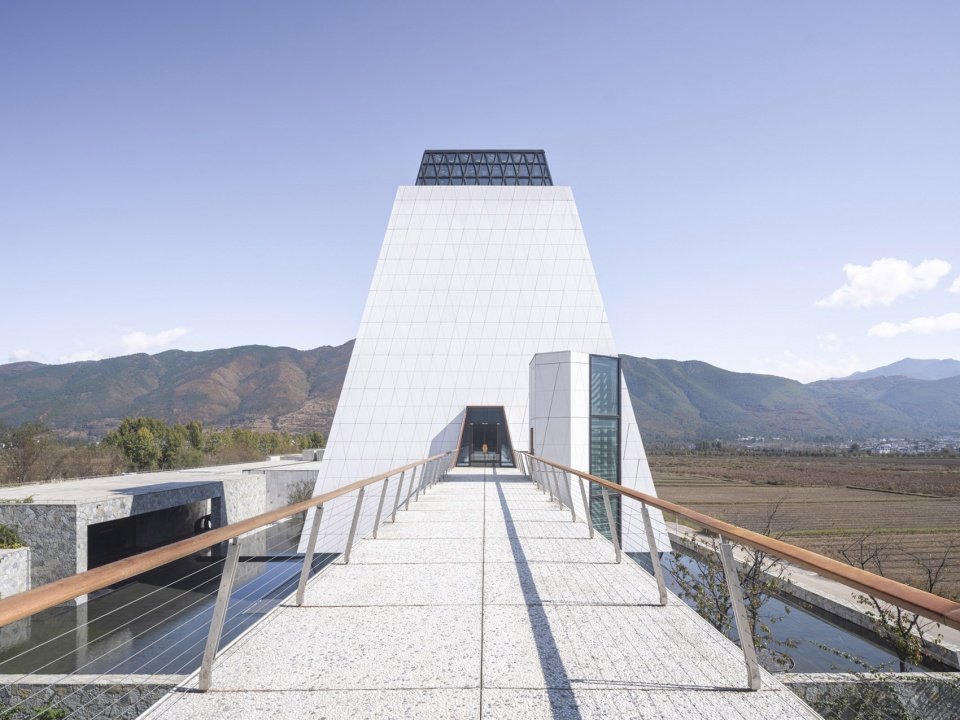

▼酒厂外观，Exterior of the winery complex © Zhao Yilong

综合体的布局对大理白族传统英亚体育手机版登录实施了当代诠释，同时与历史悠久的苏格兰威士忌酒厂理念展开对话，由此形成一系列类似院落的空间，在带来探索与发现体验的同时，也实现了可持续的穿堂通风与热惰性调节。

The layout of the complex interprets the Bai/Dali vernacular architecture, in conversation with the idea of historic Scottish whisky distilleries, to create a series of courtyard-like spaces that offer a sense of exploration and discovery, as well as sustainable cross-ventilation and thermal mass.

▼庭院鸟瞰，aerial view of the courtyard © Zhao Yilong

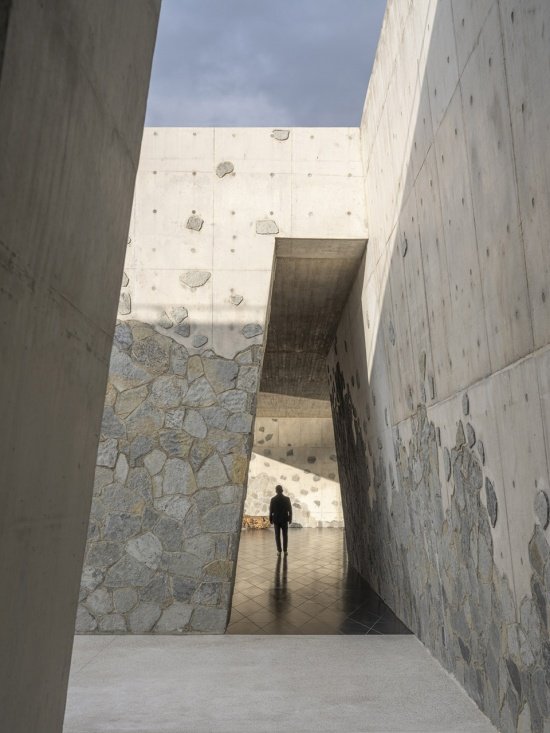

▼对大理白族传统英亚体育手机版登录进行了当代诠释，interprets the Bai/Dali vernacular architecture © Zhao Yilong

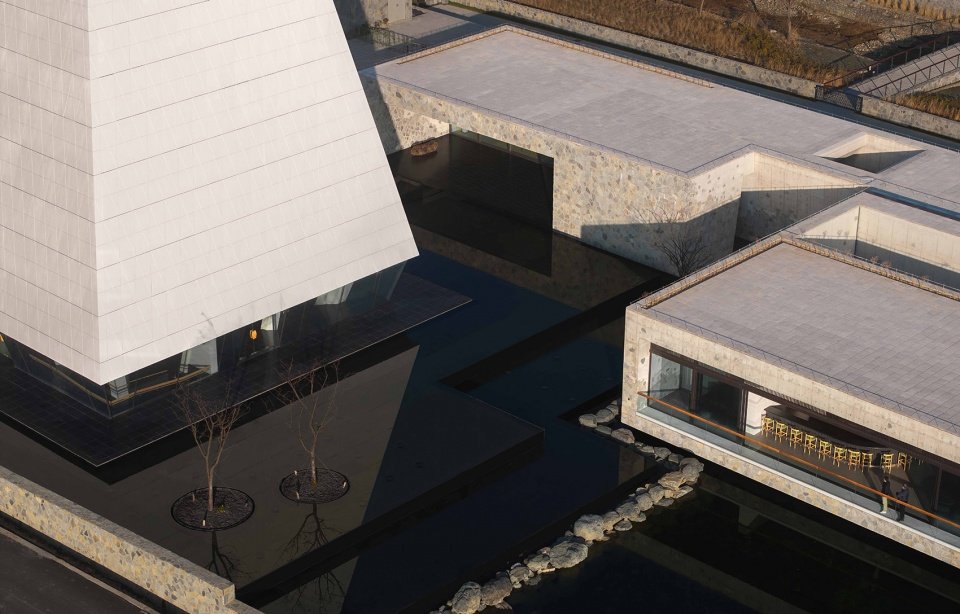

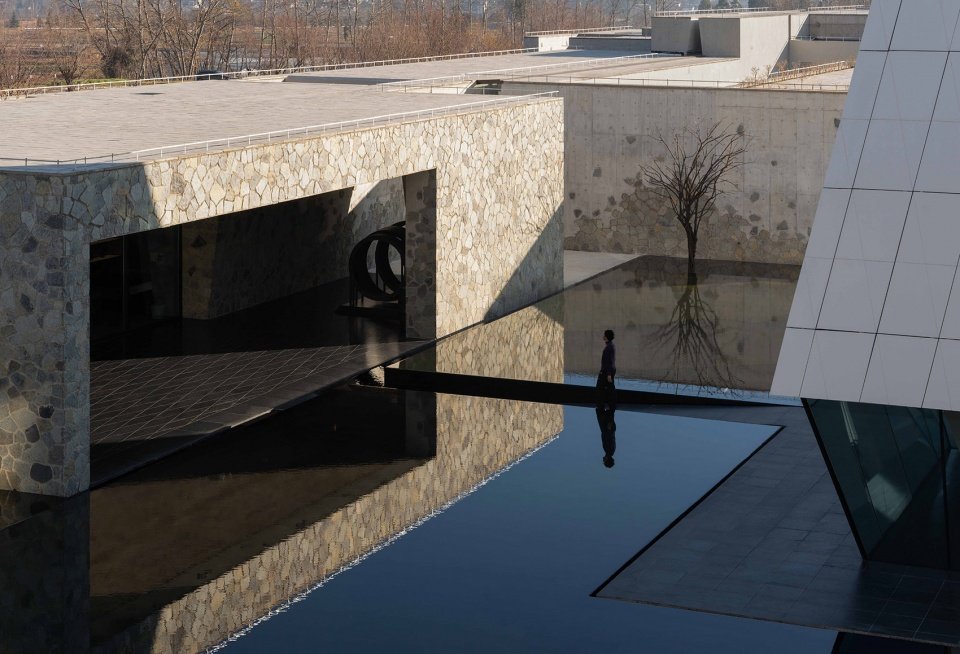

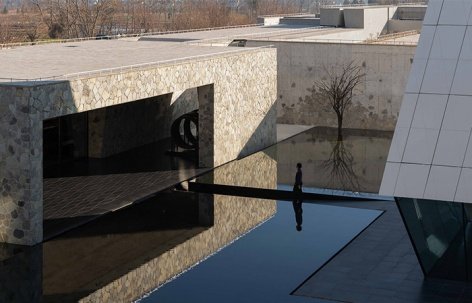

▼形成类似院落的空间，create a series of courtyard-like spaces© Tian Fangfang

游客中心由一系列低矮的石材覆面英亚体育手机版登录组成，其设计根植于威士忌酿造的手工传统，并逐渐过渡至更具雕塑感的英亚体育手机版登录性现浇混凝土体量。总的来说这些英亚体育手机版登录朝向苍山开阔的景观视野展开，顺应并彰显场地的自然地形，以层层递进的方式形成台地式空间序列。

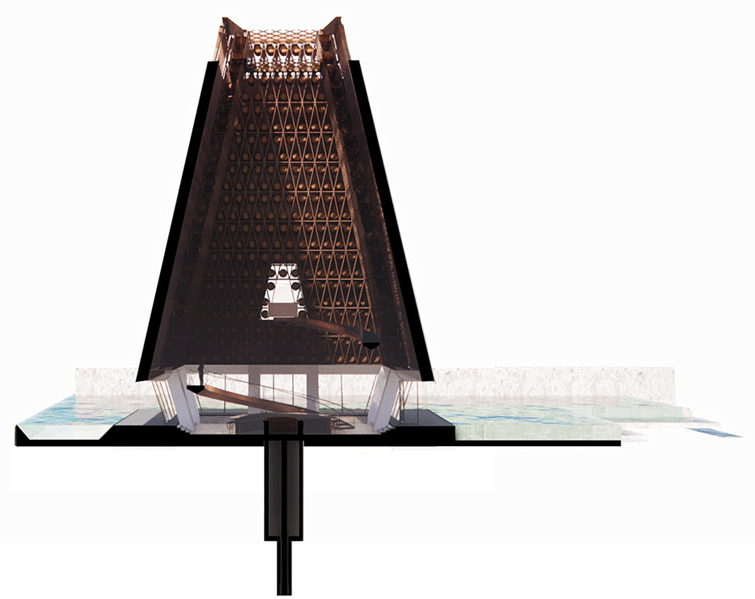

▼剖面示意图，section diagram © OLI Architecture

The Visitor’s Center is designed as a series of low, stone-clad buildings, anchored in the artisanal origins of whisky making, gradually transitioning into sculptural, architectural cast-in-place concrete volumes. These structures open to expansive views of the Cangshan Mountains, following and celebrate the natural topography to create a terraced progression.

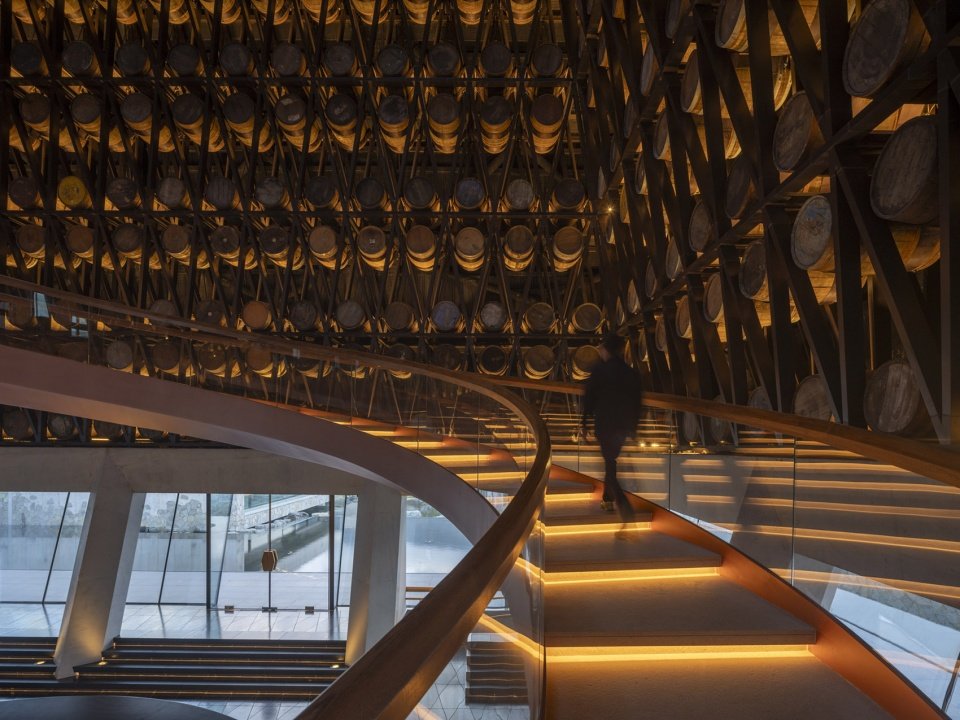

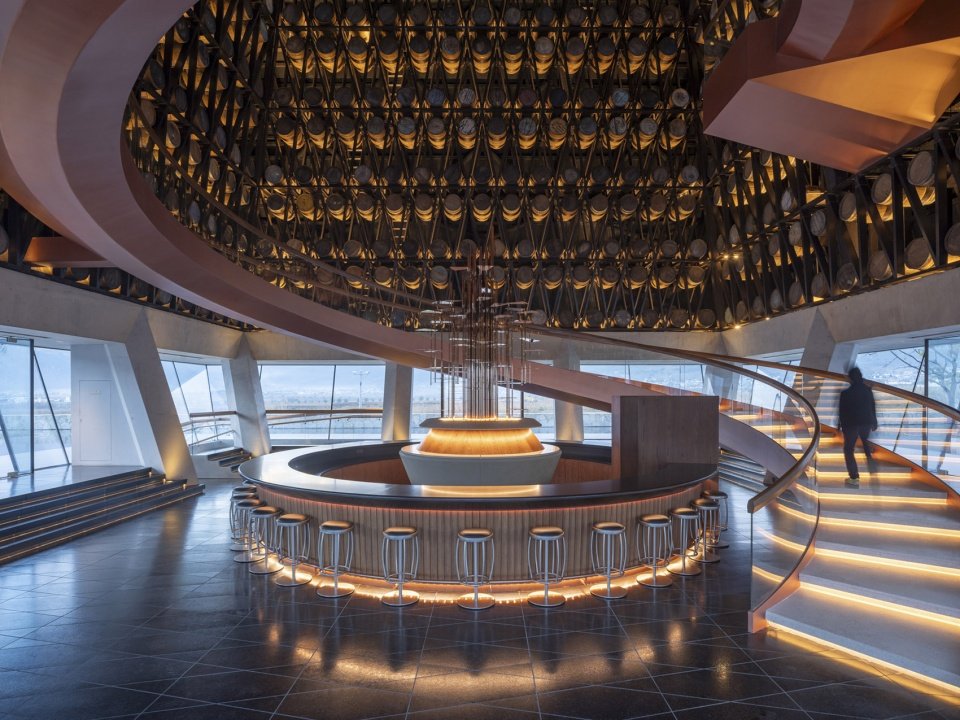

▼运用酒桶装饰的室内空间，Interior spaces featuring wine barrel décor © Tian Fangfang

“我们非常高兴能够与帝亚吉欧合作，共同参与这一非凡的设计项目。另外它让我们不仅能够思考当地的景观与地域特征，也得以深入回应威士忌酿造的悠久历史。将本土的视觉与英亚体育手机版登录类型，与全球性的蒸馏文化相结合，促使我们创造出这一复合空间，其中蕴含着如珠宝般精致的形态与丰富的英亚体育手机版登录意涵。整个项目始终强调一种明亮而富有雕塑感的设计方式，我们也十分欣喜能够为这一杰出项目贡献自己的力量。”

—— Hiroshi Okamoto、Bing Lin，OLI Architecture 英亚体育手机版登录师

“We were thrilled to work with Diageo on this extraordinary design opportunity that let us think not only about the local landscape and features, but also the rich history of whisky-making; combining native visual and architectural typologies with a global interest in distilling led us to create this complex, rich in jewel-like forms and architectural reference. We emphasized a luminous, sculptural approach throughout, and are delighted to have contributed our efforts to this outstanding project.”

— Hiroshi Okamoto and Bing Lin, Architects, OLI Architecture

▼酒厂夜景，the winery complex at night © Tian Fangfang

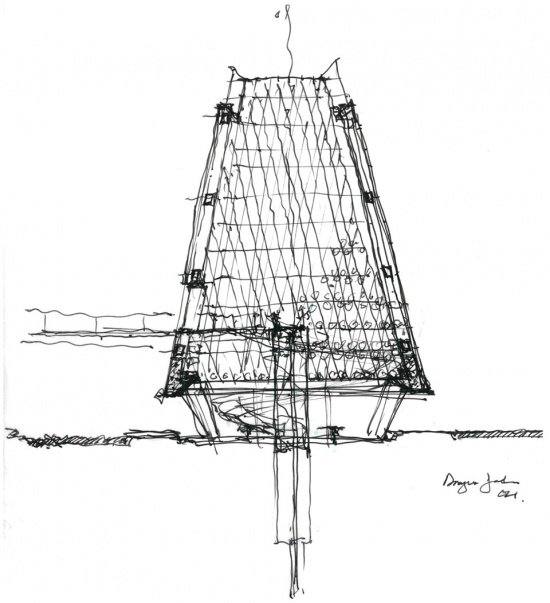

▼草图，sketch © OLI Architecture

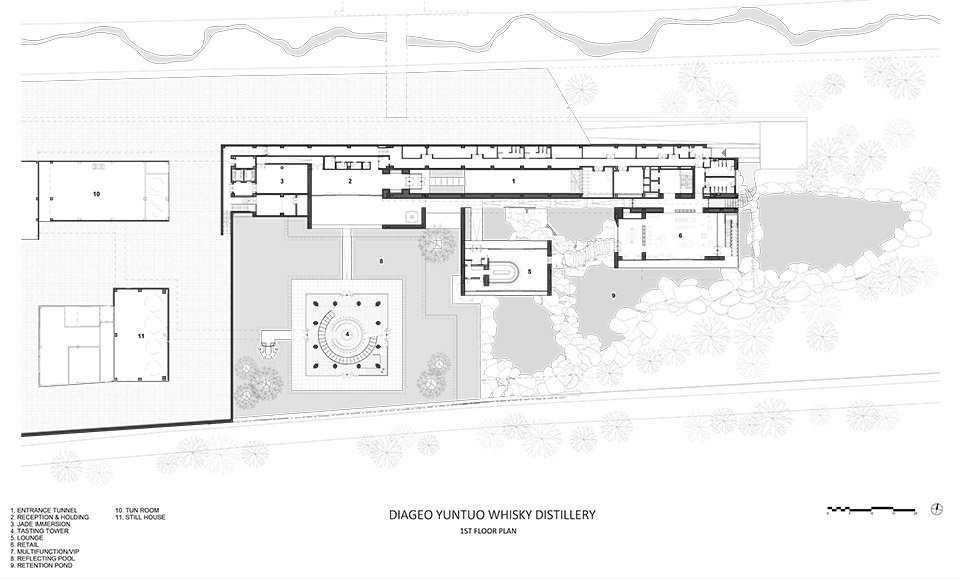

▼一层平面图，ground floor plan © OLI Architecture

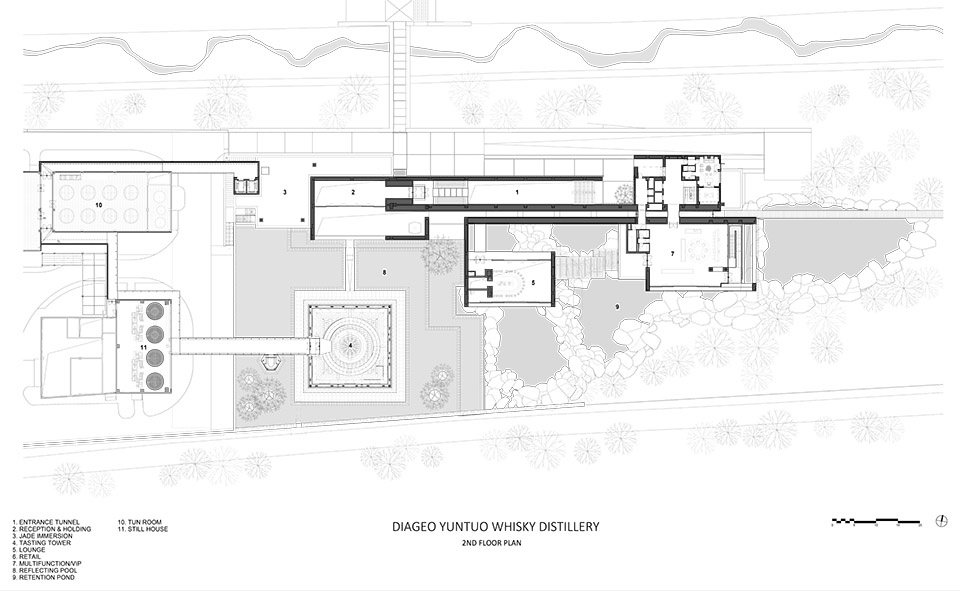

▼二层平面图，first floor plan © OLI Architecture

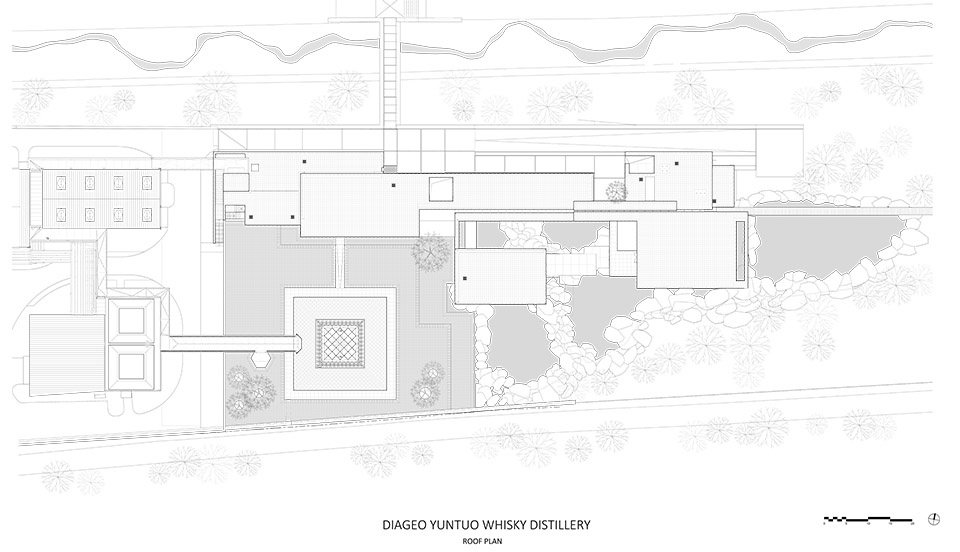

▼屋顶平面图，roof floor plan © OLI Architecture

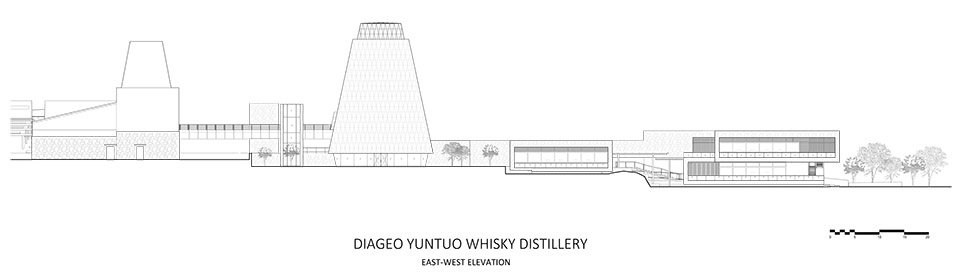

▼立面图，elevation © OLI Architecture

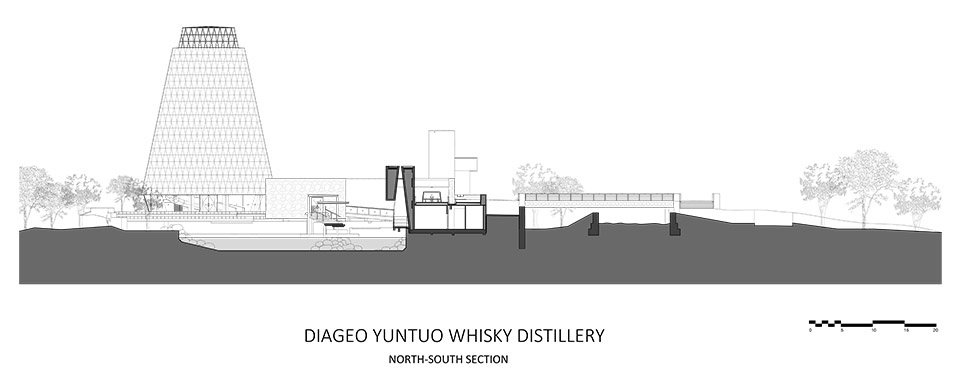

▼剖面图，section © OLI Architecture

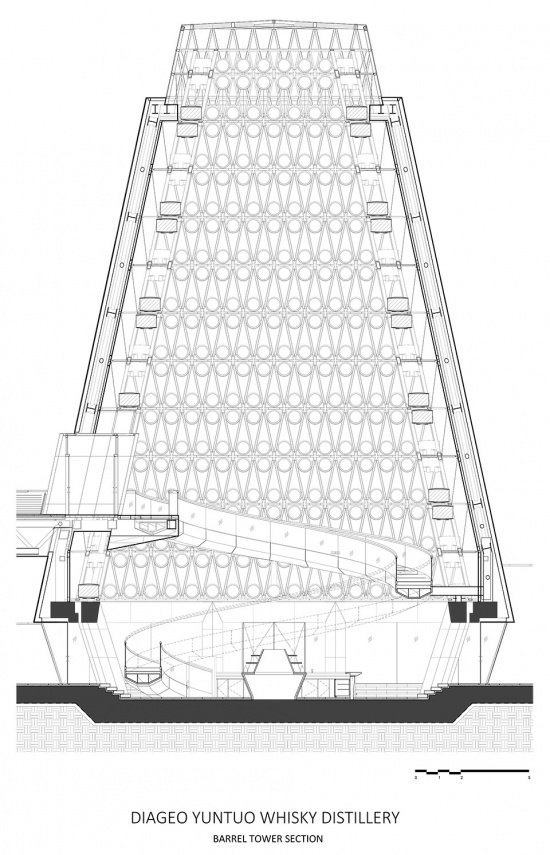

▼酒桶塔剖面图，barrel tower section © OLI Architecture

locations Eryuan, Dali Province, China
Distillery Opening Date November 15, 2024
Client: Diageo
Architect OLI Architecture PLLC, New York, New York
Local Architect of Record China Haisum Engineering Co., LTD.
Key Materials Architectural Cast-In-Place Concrete, Local Granite, Angola Black Granite, Shangxi Black Granite, Copper, Oak
Site Area 65902.98 m2 / 709,492.93 ft2
Floor Area
Total Building Area:13,500m2 / 145,312 ft2
Distillery: 7,155m2 / 77,015 ft2
Visitor Center :6,345m2 / 68,297 ft2
Project Team: Hiroshi Okamoto, AIA, LEED AP; Bing Lin; Kojo Quainoo, LEED AP BD+C; Sanghoon Seo; Alexandre Dimitraschuk; Christos Athanassopoulos, Int’l Assoc. AIA
Chunxin Yu; Jian Ping Huang; Justin Chen; Michael Yin; Haoyu Wang; Yuichi Tada; Dongshin Lee, AIA; Valentina Angelucci; Zhen Hua; Ben Woolworth; Mahnaz Maroufi

Coordinators
Project Management: PM Group
Structural and MEP Engineer: China Haisum Engineering Co., LTD.
General Contractor: JiangSu Qi’An Construction Group Co. Ltd
Interior Contractor: Shanghai Jadeshine Decoration Engineering Co., Ltd
Concrete Consultant: Reginald Hough Associates
Distillery Engineering:Briggs of Burton PLC
Structural Consultant: SuZhou HongDu Architecture Design Co., Ltd.
Landscape Consultant: Shanghai Shenhe Environmental Engineering Studio
Lighting Consultant: RDesign International Lighting
Façade Consultant: Taotie Curtainwall Technology Development (Shanghai) Co., Ltd.
Fountain Consultant: Shanghai Hongkai M&E Equipment Engineering Co., Ltd.
Distillery Design Strategy Consultant: Hillcrest Consulting LLP
Experience Design Consultants:Imagination Group Limited
