非常感谢 WallaceLiu 予gooood分享以下内容。 同题参见更多关于他们：WallaceLiu on gooood。
Appreciation towards WallaceLiu for providing the following description:

由WallaceLiu英亚体育最新资讯正式成为热刺官方合作伙伴设计事务所设计建造的重庆工业博物馆，是在既有钢铁厂遗留骨架的基础上改建而来的。 相关文章这座新落成的博物馆面积为7500平方米，是该老工业园区更新发展计划的一部分，旨在展示该地区所蕴含的浓厚钢铁文化，以及其相应的社会和工业历史。

Emerging design practice WallaceLiu has completed the Chongqing Industrial Museum, which has been created amongst the remaining structures of a former steel factory. The new 7,500 sqm museum is part of a larger redevelopment of the old factory site and was designed to recognise the national significance of the steelworks cultural, social and industrial history.

▼博物馆外观局部，partial exterior view of the museum ©Etienne Clement

新建英亚体育最新资讯正式成为热刺官方合作伙伴采用的是轻钢框架结构，从而满足了在既有老厂房混凝土结构柱之间置入新体块的可能。总的来说英亚体育最新资讯正式成为热刺官方合作伙伴师受保留下来的层层老结构梁柱穿插的场所的启发，决定打破原有厂房狭长空间的印象，用穿插于老柱之间漂浮的金属箱体，在地面层营造一种开放、复杂且沉浸式的空间体验。这样做的目的，是让来防者不仅停留于历史线路的展览环境，且能够亲身体会老厂房空间的震撼力，近距离的接触老的英亚体育最新资讯正式成为热刺官方合作伙伴元素。这些悬浮的金属箱体由位于不同高度的桥梁相连，当参观者在不同箱体间穿梭时，可以近距离的观察既有的老横梁，老梁和梁上承载桁车的老轨道。

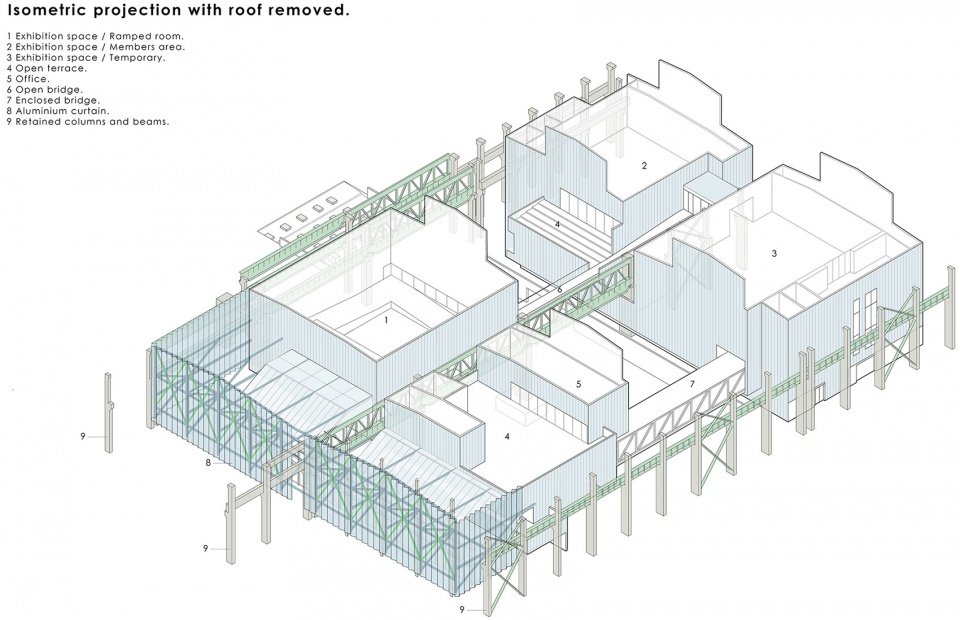

▼空间轴测图，isometric projection with roof removed ©WallaceLiu

The new museum building is constructed from a lightweight steel frame structure which allowed building volumes to be inserted in between the old structures. Inspired by the long, complex and layered views through the original factory site, WallaceLiu decided to lift the metal boxes that contain the enclosed exhibition spaces off the ground to create a complex, permeable and open ground-floor experience. These raised volumes are linked by bridges at different levels and frame an open lower ground-floor hall. As visitors cross from one box to the other they are temporally removed from the museum environment and reconnected to the most important artefact, the old factory itself; through their proximity to old beams, columns and trusses and the views across the open lower ground floor hall.

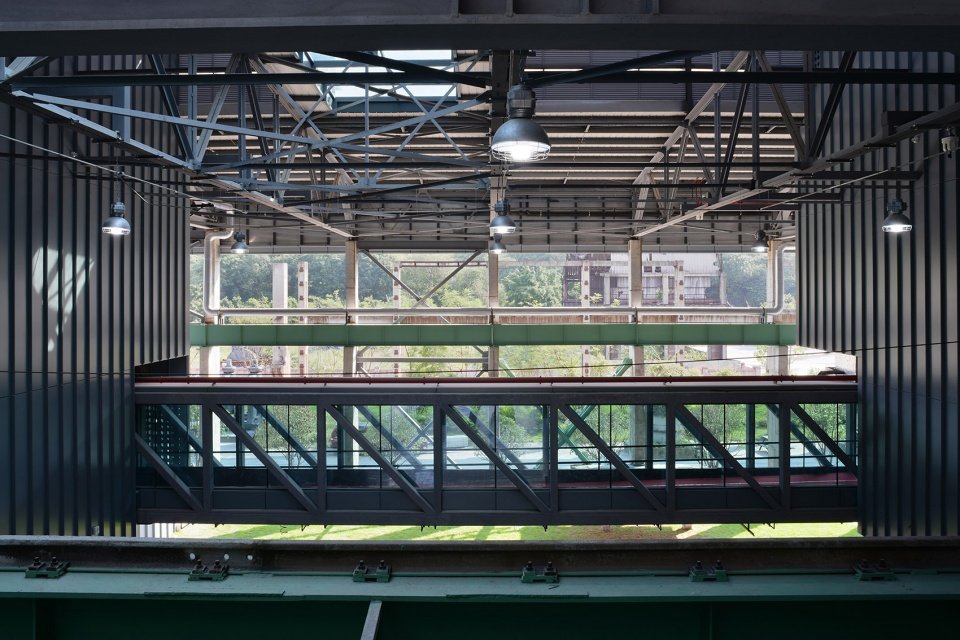

▼博物馆室内，悬浮的金属箱体由位于不同高度的桥梁相连。interior view of the museum, raised volumes are linked by bridges at different levels ©Etienne Clement

▼博物馆局部，partial view of the museum ©Etienne Clement

这些插入的新体块围合限定了一个半开敞的，建立在已有设备基坑基础上的大厅。参观者在穿过廊桥时，可以暂时从展厅中抽离出来，俯瞰大厅和周边的历史构筑，与真实的历史环境建立视觉和情感联系。承载中庭大厅的基坑是原有厂房的冷却设备基础坑。基坑中阵列的混凝土矮柱，是早先用于支撑大型工业设备的设备基础。改造后的大厅空间，主要用于博物馆临时的展览活动，鼓励灵活开放的公众参与。这个大厅与周边景观紧密衔接，营造顺畅和开放公众流线。

封闭的博物馆空间是一套完整的保温隔热体系。而中层大厅的存在，创造了一个几乎不需要设备供热、供冷和通风的舒适的灰空间。英亚体育最新资讯正式成为热刺官方合作伙伴师认为在重庆这样的冬冷夏热的地域环境中，遮荫且通风的灰空间的存在，在公共英亚体育最新资讯正式成为热刺官方合作伙伴设计中非常重要。这个中庭大厅的底层基坑两侧设置有衣帽间、洗手间、纪念品商店和放映室和博物馆序厅等系列对自然光要求较低的空间。

▼保留下来的原有结构和新建下沉大厅轴测图，isometric projection of retained old structure with new lower ground floor hall ©WallaceLiu

The central hall has been created within the foundation pit that was once used to cool large pieces of steel and is entered through a series of concrete structures that would have once supported industrial machinery. This space will act as a place to gather, as well as hosting temporary events and exhibitions. This large space is covered but not entirely enclosed to create a comfortable environment with minimal need for mechanical heating, cooling or ventilation.

▼博物馆入口，可以直接通向中庭大厅，the main entrance to lower ground floor ©Etienne Clement

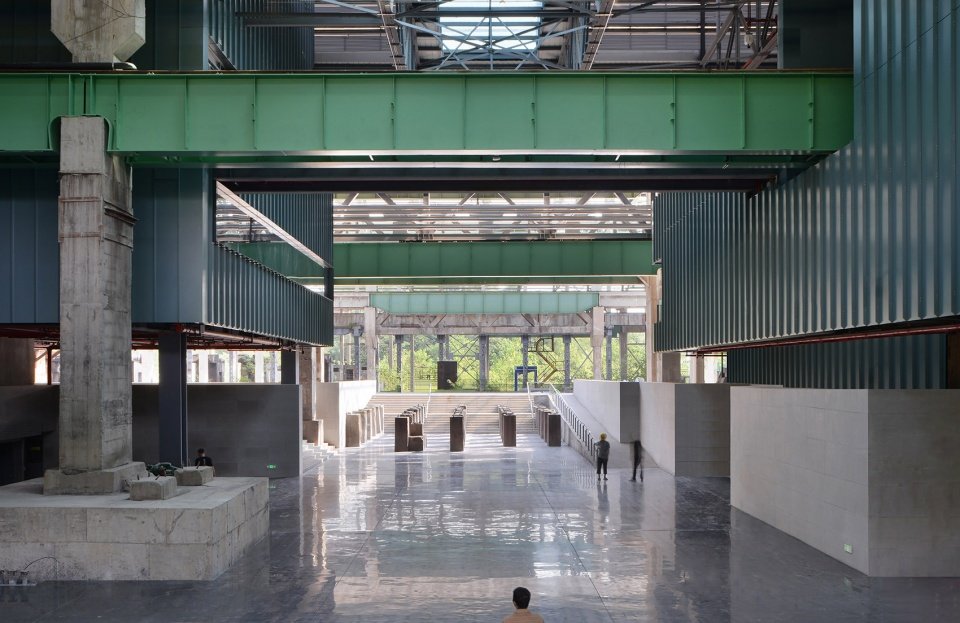

▼中庭大厅，主要用于博物馆临时的展览活动，the central hall for hosting temporary events and exhibitions ©Etienne Clement

▼中庭大厅的基坑中阵列的混凝土矮柱，是早先用于支撑大型工业设备的设备基础，a series of concrete structures that would have once supported industrial machinery ©Etienne Clement

在进入博物馆的公共广场一侧，是博物馆的咖啡厅和餐厅，以及纪念品商店的一层入口。这个公共外立面，是一个悬挂的金属冲孔板折板幕帘。幕帘的支撑结构是一组基于老英亚体育最新资讯正式成为热刺官方合作伙伴结构模数而设计的轻钢构架。老英亚体育最新资讯正式成为热刺官方合作伙伴的混凝土挡风柱被保留下来，穿插在新的轻钢结构之间。新老穿插丰富了入口空间序列的层次。这层悬挂铝板幕墙脱离地面约3米，表面是英亚体育最新资讯正式成为热刺官方合作伙伴特殊设计的色彩，巧妙的结构关系使得这层幕帘显得非常轻薄，内部空间若隐若现，也和钢铁厂原有混凝土柱的厚重感形成了鲜明的对比。借由一天中不同时段的不同光照，冲孔幕帘会形成不同的阴影，更加强化新老元素的交错。

幕帘在包裹封闭餐饮空间的同时，营造了一层从室内向室外过渡的灰空间。通常来说这些过渡空间为英亚体育最新资讯正式成为热刺官方合作伙伴师致力营造一个开放流动的博物馆入口边界创造了条件。并平衡公共英亚体育最新资讯正式成为热刺官方合作伙伴所需要的大尺度立面与人尺度之间的关系。

▼博物馆的公共外立面是一个悬挂的金属冲孔板折板幕帘。 the historic factory columns are now wrapped in a pleated metal curtain ©Etienne Clement

▼悬挂铝板幕墙脱离地面。the pleated metal curtain hangs down from new trusses and raised off the floor ©Etienne Clement

▼幕帘的支撑结构是一组基于老英亚体育最新资讯正式成为热刺官方合作伙伴结构模数而设计的轻钢构架，the light steel frames designed based on the modulus of the old building structure support the curtain ©Etienne Clement

At the front of the museum, the historic factory columns are now wrapped in a pleated metal curtain that hangs down from new trusses and raised off the floor, to create a layer of transitional space between interior and exterior. The perforated, powder-coated aluminium panels become like a veil that shrouds the museum with a sharp serrated edge along the bottom. This lightness is distinctly contrasted with the heaviness of the original concrete columns. Sometimes the relationship between the new and the old is overlapped, abstractly intertwined and changes with different light in different hours of the day through the play of shadows cast by the curtain.

Behind the raised curtain is the museum cafe and restaurant that faces a new public square. Grand sliding doors make large openings possible to draw people in. The designers intention was to create a fluid, open and airy edge along this facade to balance the scale and grandeur of its image when viewed from afar. Semi-enclosed, it is part of both landscape and architecture.

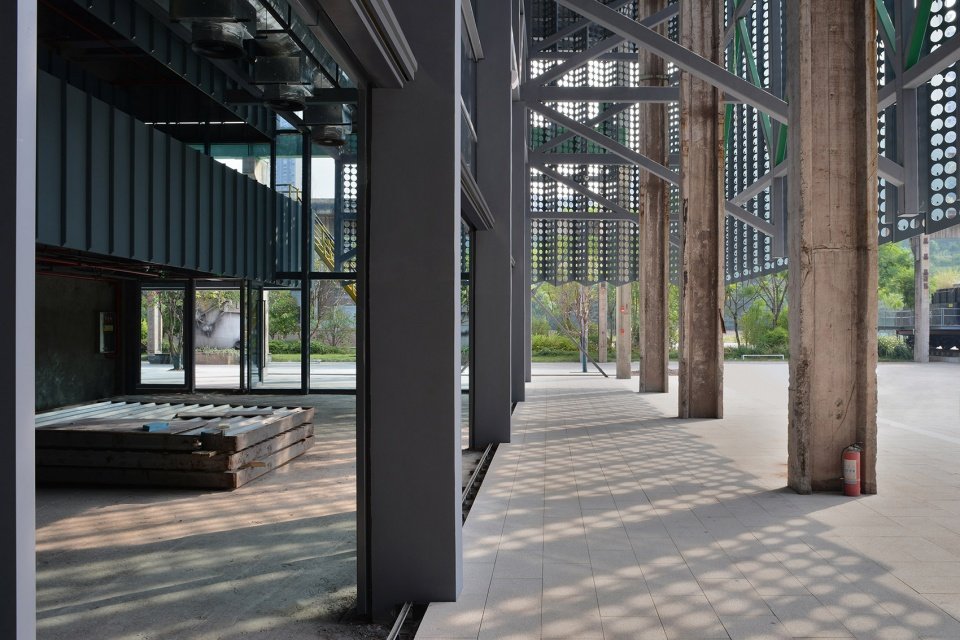

▼幕帘营造了一层从室内向室外过渡的灰空间，the curtain creates a fluid, open and airy edge ©Etienne Clement

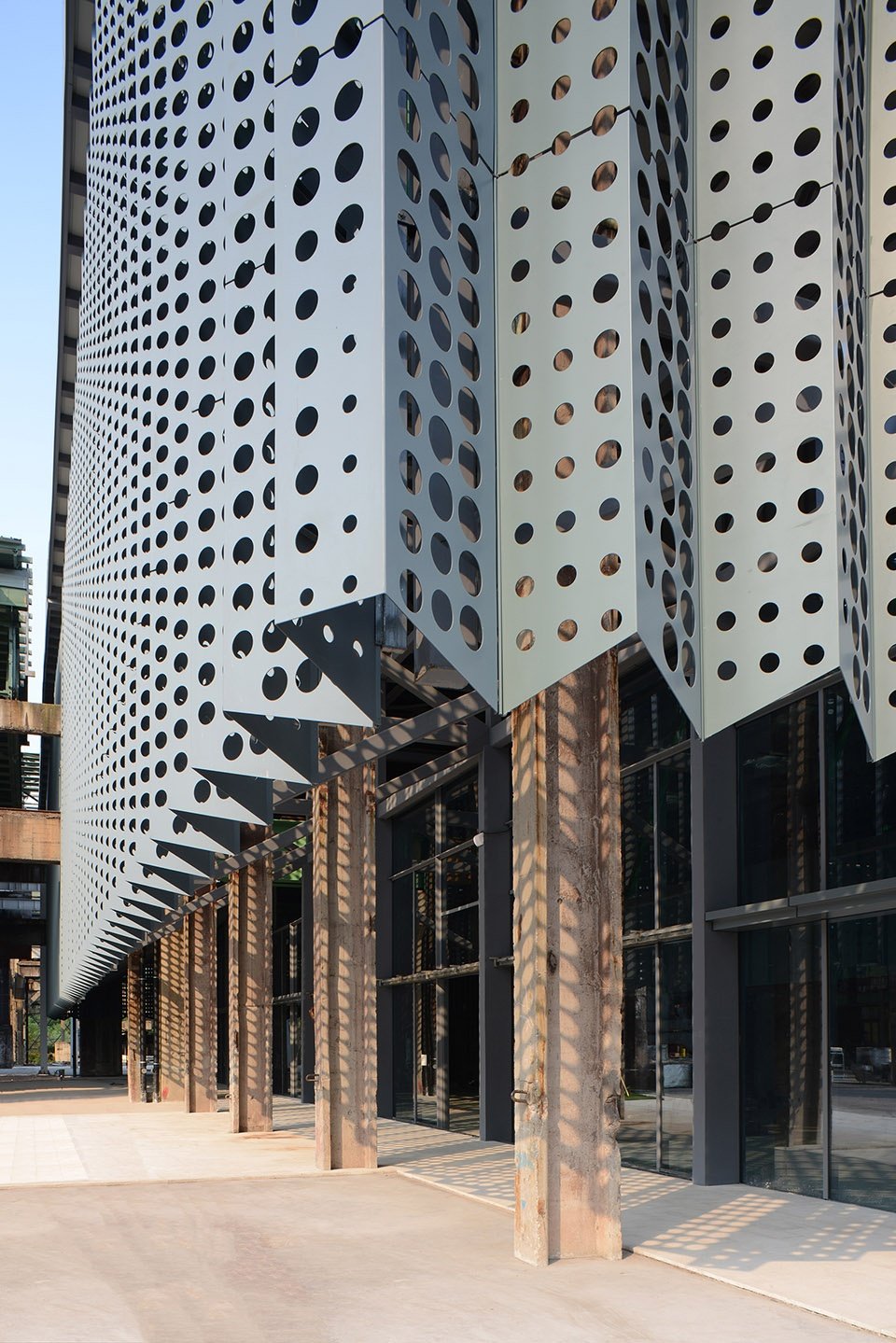

▼金属穿孔板外立面细节，details of the facade made of perforated panels ©Etienne Clement

▼幕帘的轻盈感和钢铁厂原有混凝土柱的厚重感形成了鲜明的对比。the lightness of curtain is distinctly contrasted with the heaviness of the original concrete columns ©Etienne Clement

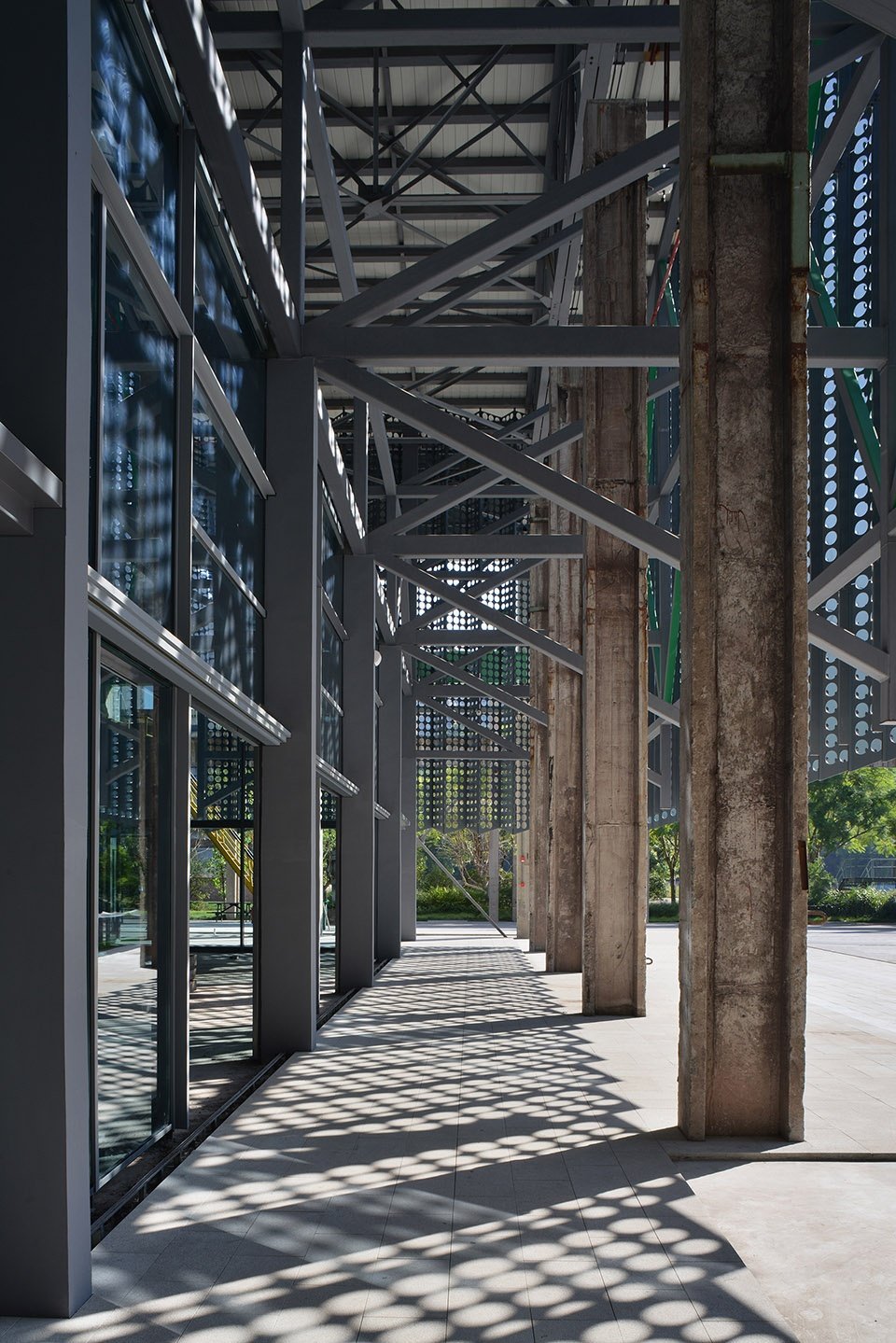

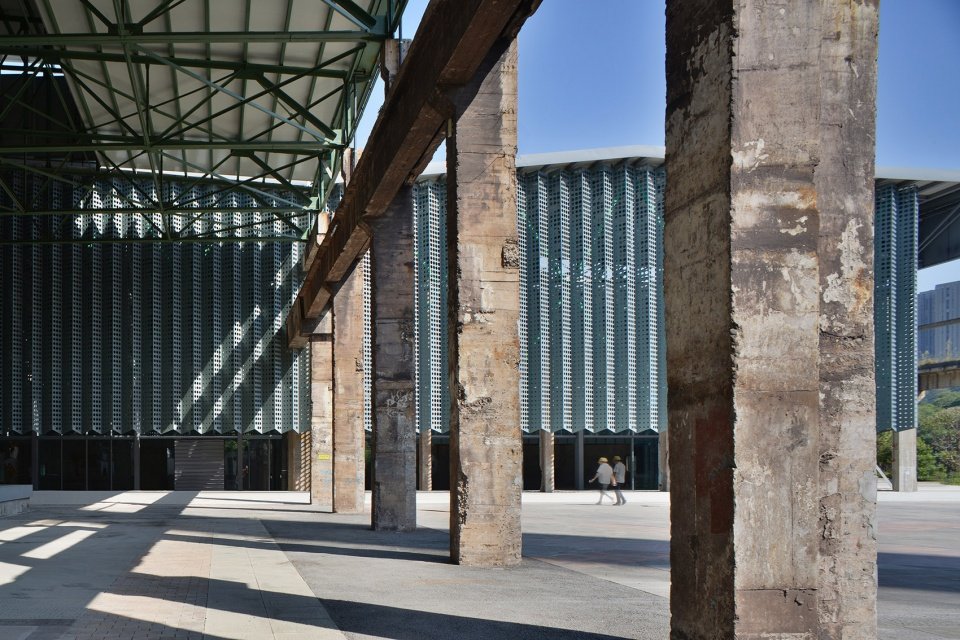

▼老英亚体育最新资讯正式成为热刺官方合作伙伴的混凝土挡风柱被保留下来，穿插在新的轻钢结构之间，the original concrete columns are retained to combine with the new light weight steel structure ©Etienne Clement

封闭、半开放、开放空间序列的建立，让英亚体育最新资讯正式成为热刺官方合作伙伴与场所能够有效的互动。打破了传统封闭式、大体量的、厚重的博物馆英亚体育最新资讯正式成为热刺官方合作伙伴的一般做法，让公共英亚体育最新资讯正式成为热刺官方合作伙伴能够真正的承载更多的公共活动。

By working with adaptive re-use the design is about rearranging and reframing what is there, accentuating the visual and spatial experience to purposefully make it more dramatic and more complex. Breaking down the exhibition journey into a series of spaces that travel through the existing structures and around the open public foundation hall invites visitors to explore and observe the existing features whilst completing their composed exhibition narrative.

▼实体模型，physical model ©WallaceLiu

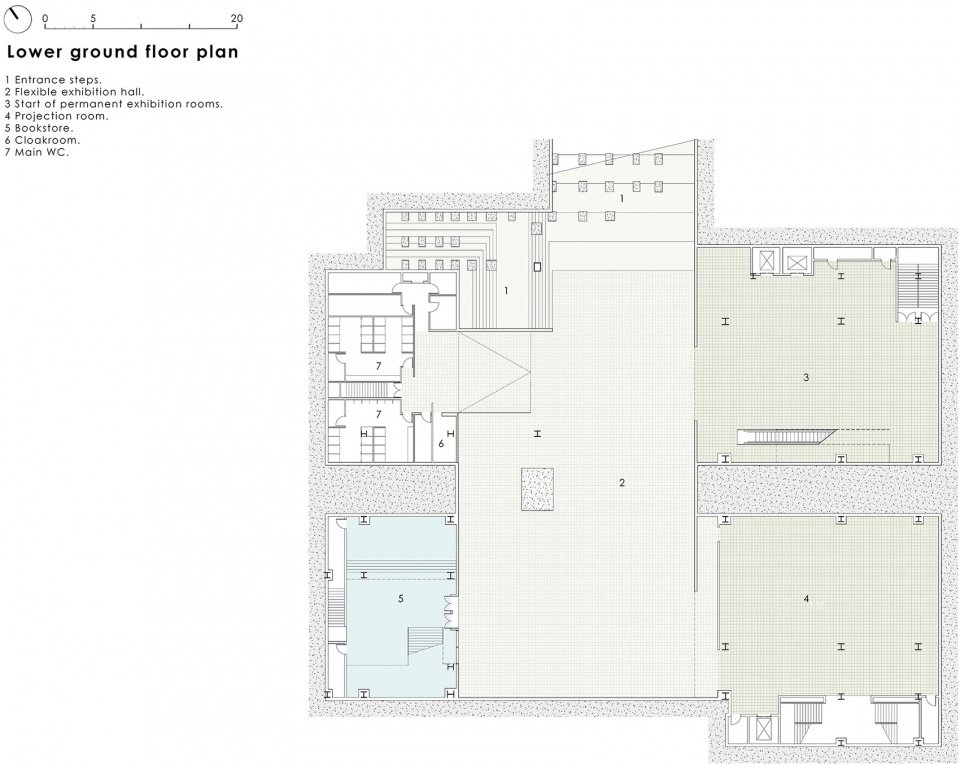

▼首层下部分空间平面图，lower ground floor plan ©WallaceLiu

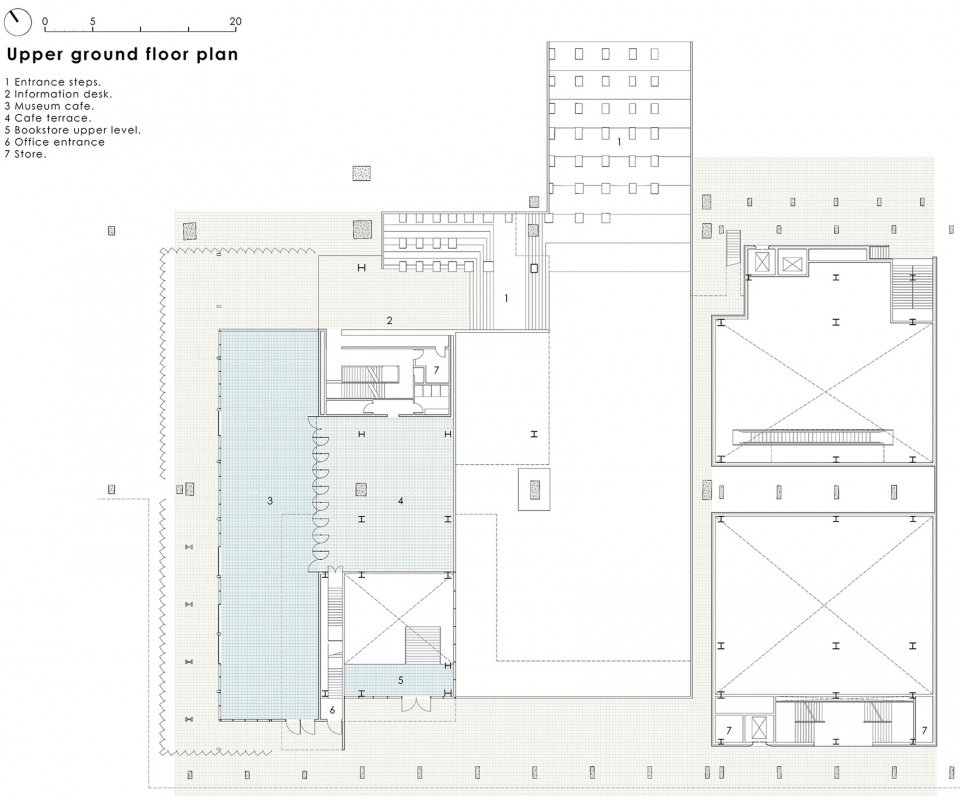

▼首层上部分空间平面图，upper ground floor plan ©WallaceLiu

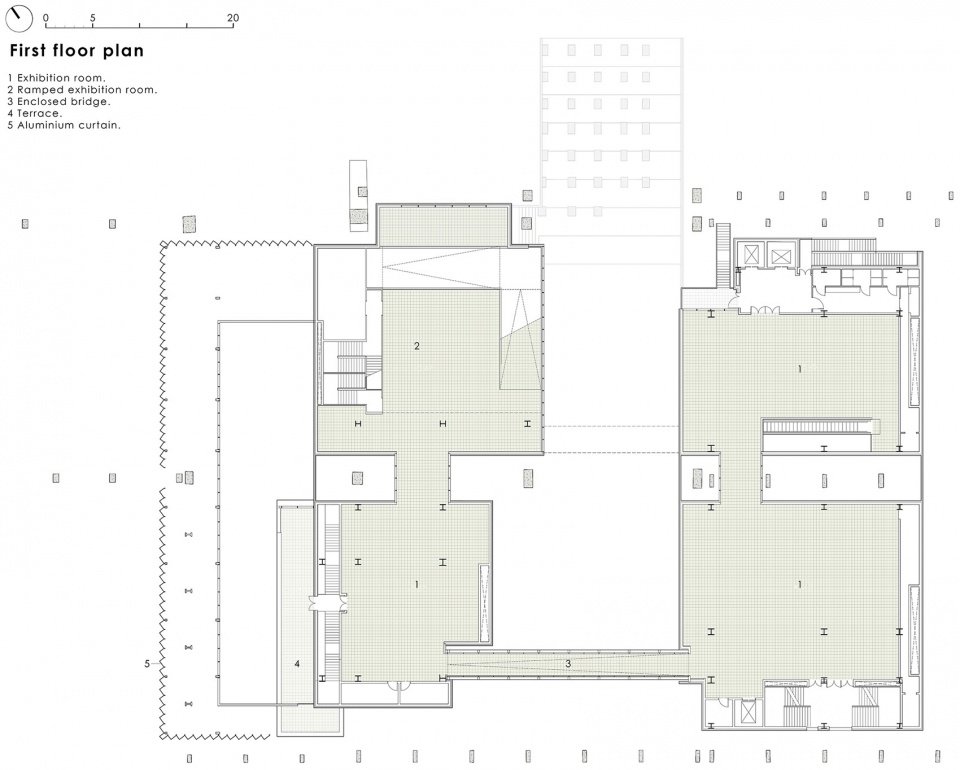

▼二层平面图，first floor plan ©WallaceLiu

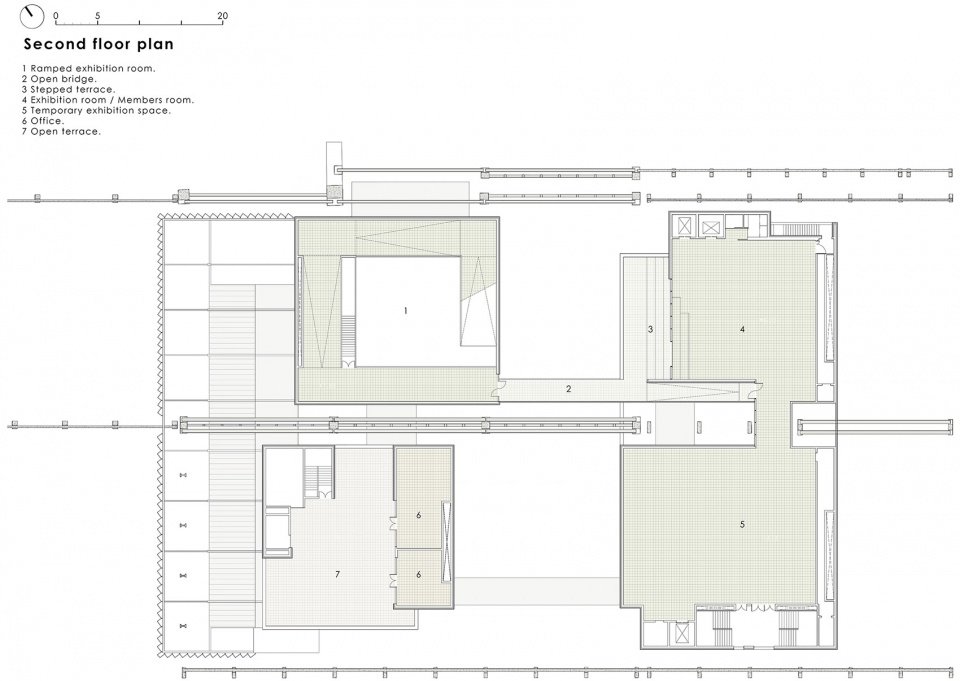

▼三层平面图，second floor plan ©WallaceLiu

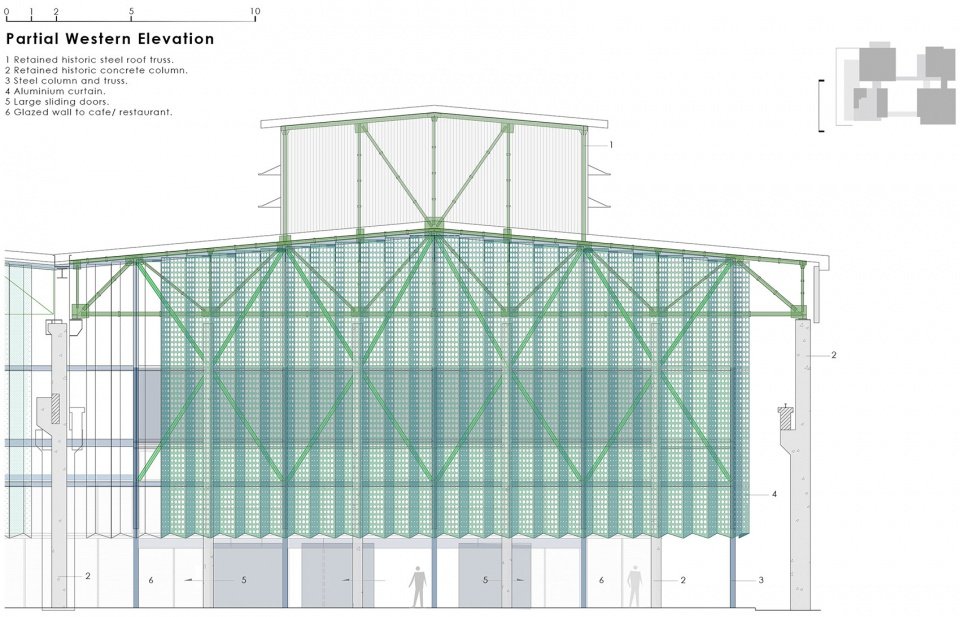

▼西立面图局部，partial western elevation ©WallaceLiu

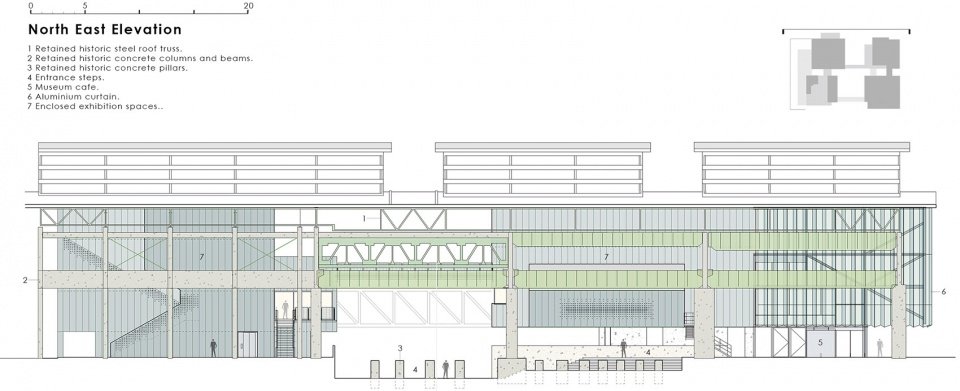

▼东北立面图，north east elevation ©WallaceLiu

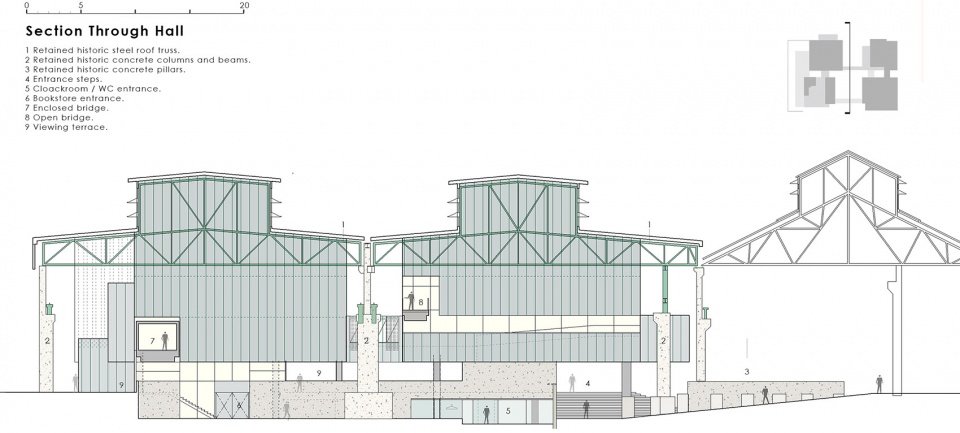

▼剖面图（贯穿大厅），section through hall ©WallaceLiu

Project name: Chongqing Industrial Museum
Design: WallaceLiu
Design year & Completion Year: 2016-2019
Leader designer & Team: Jee Liu (刘婕), Jamie Wallace
Project locations: Chongqing, China
Gross Built Area (square meters): 7,5000msq
Photo credits: Etienne Clement
Partners: CMCU engineering Co., Ltd.
Clients: YuFu Group
Brands / Products used in the projrct: Southwest Aluminium (Group) Co., Ltd.
