感谢 Found Projects 和 明暗研究室 予gooood分享以下内容。 同题参见更多关于他们：Found Projects on gooood, Atelier Noirs on gooood
Appreciation towards Found Projects + Atelier Noirs for providing the following description:

蓝球场位于象山县兴海村的沿海一侧，是一座蓝色混凝土球场，由裸露的钢结构框架围合而成。 相关文章因此北侧的入口由斜向钢索支撑的顶篷标志着主要入口。入口顶篷与两侧向内悬挂的顶篷共同形成了一个U形长廊，为观众提供遮荫空间。篮球场东西两侧的立柱间设有混凝土长凳，为村民提供了一个休憩、社交以及观赏海景的场所。

Located in a seaside park on the southeastern coast of China, Blue Court is a blue concrete basketball court framed by an exposed steel structure. A canopy supported by diagonal steel cables marks the main entrance on the north side. The entry canopy along with two inward-hanging canopies form a U-shaped arcade and provide shaded space for spectators. Concrete benches along the east and west columns offer villagers a place to rest, socialize, and observe the ocean view.

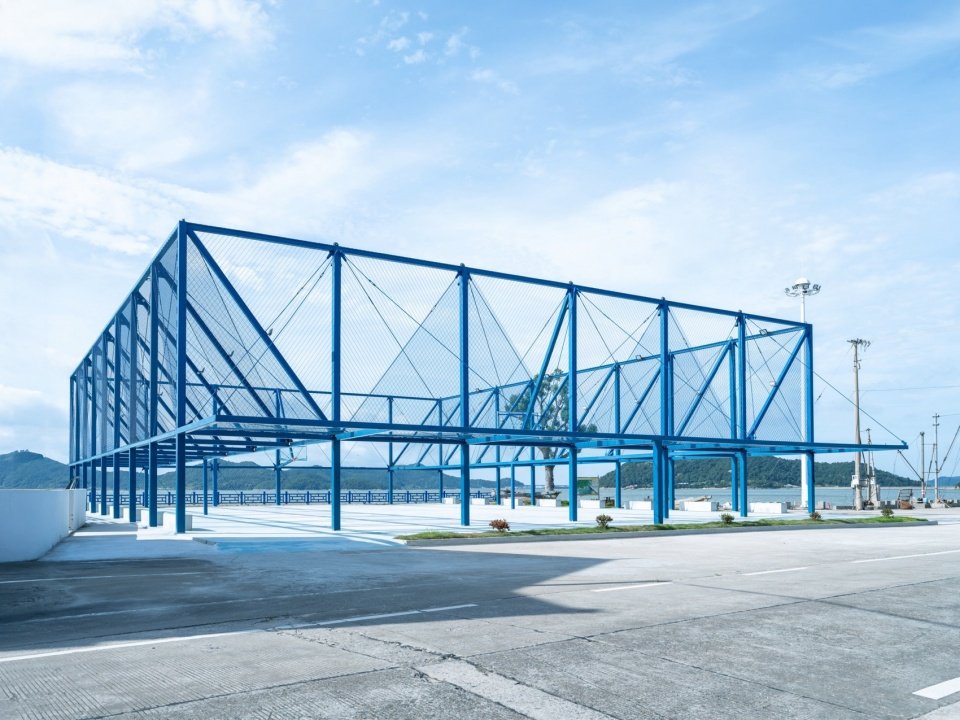

▼外观概览，exterior overview © 明暗研究室和张淼杰

▼篮球场内部，interior view © 明暗研究室和张淼杰

▼入口顶篷，entrance canopy © 明暗研究室和张淼杰

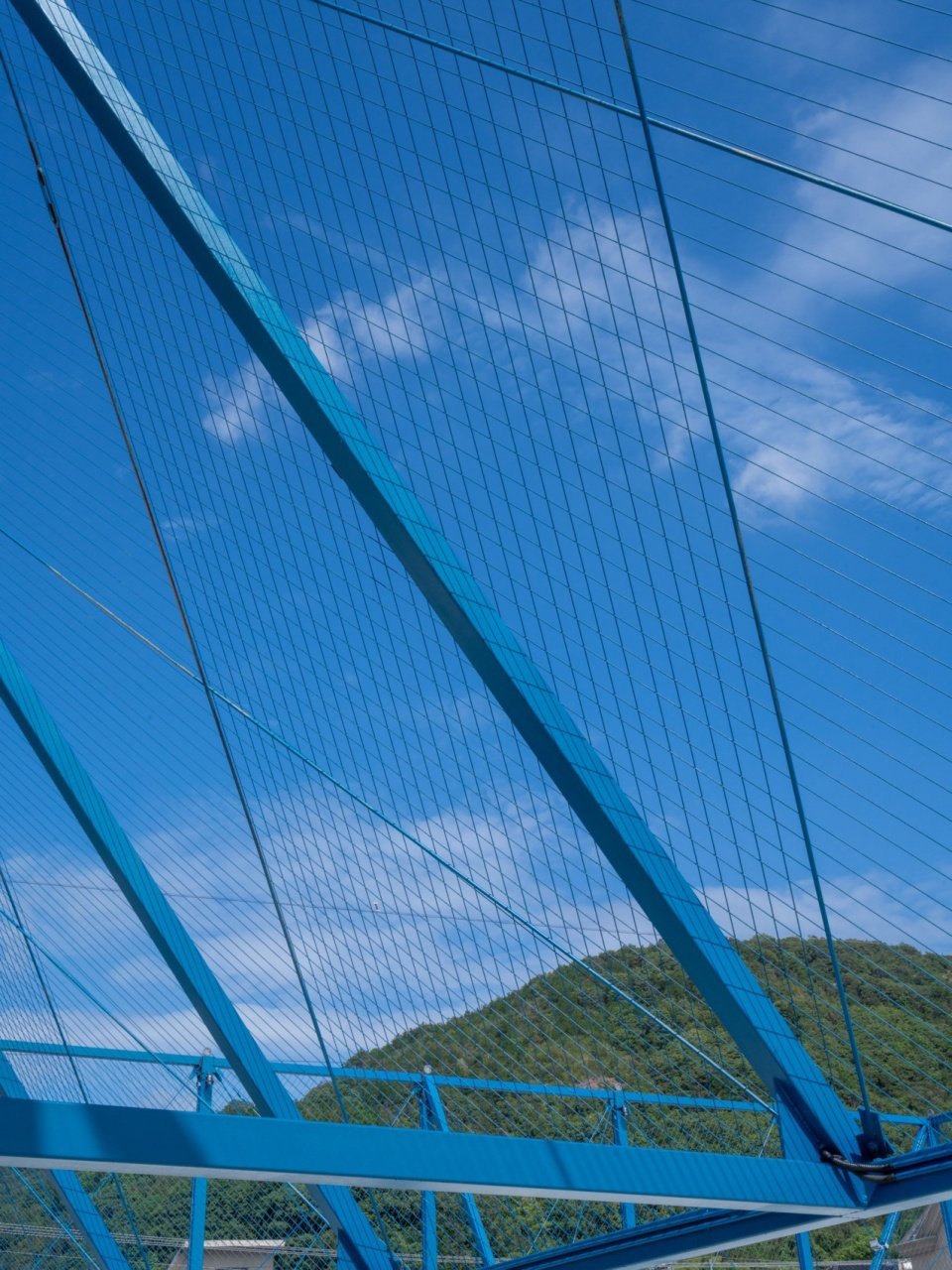

蓝球场由三层材料所构成:钢结构框架、斜向结构拉索、钢丝张拉网。钢丝互相重叠而形成的不同密度，从而形成斜向条纹图案，同时提供不同程度的遮挡与透明感。钢丝网和张力钢索的使用，赋予其轻盈的视觉效果，与海滨的自然氛围相得益彰，同时结构上也足够坚固。以应对沿海风力的挑战。

The basketball court is composed of three layers: the primary steel structural frame, secondary diagonal tension cables, and steel wire net. The alternating density of the cable system creates a diagonal stripe pattern while providing different levels of screening and transparency. The use of transparency, wire mesh, and tension cables suggests a lightness that suits its atmospheric seaside setting, while providing ample structural reinforcement to mitigate coastal winds.

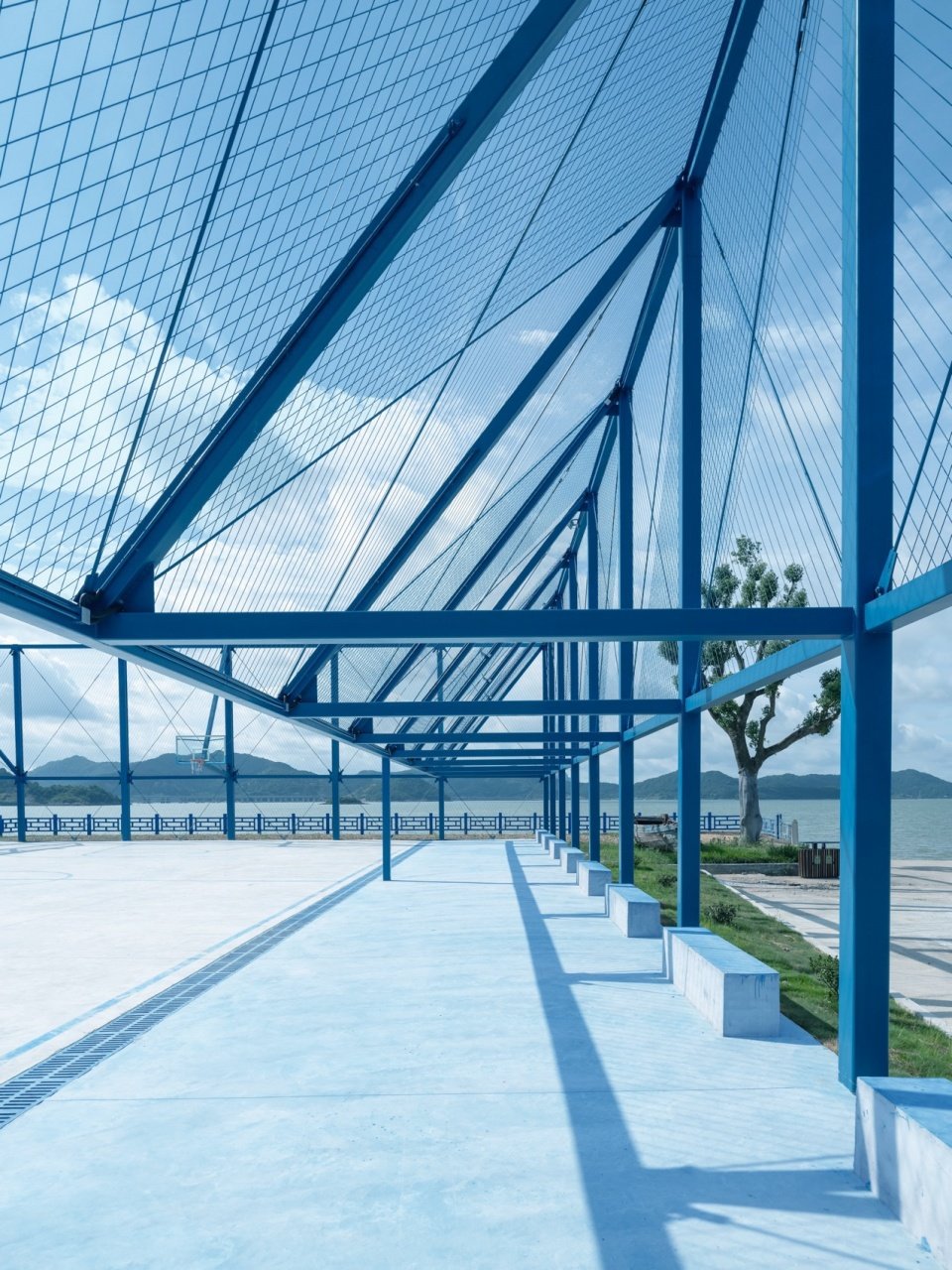

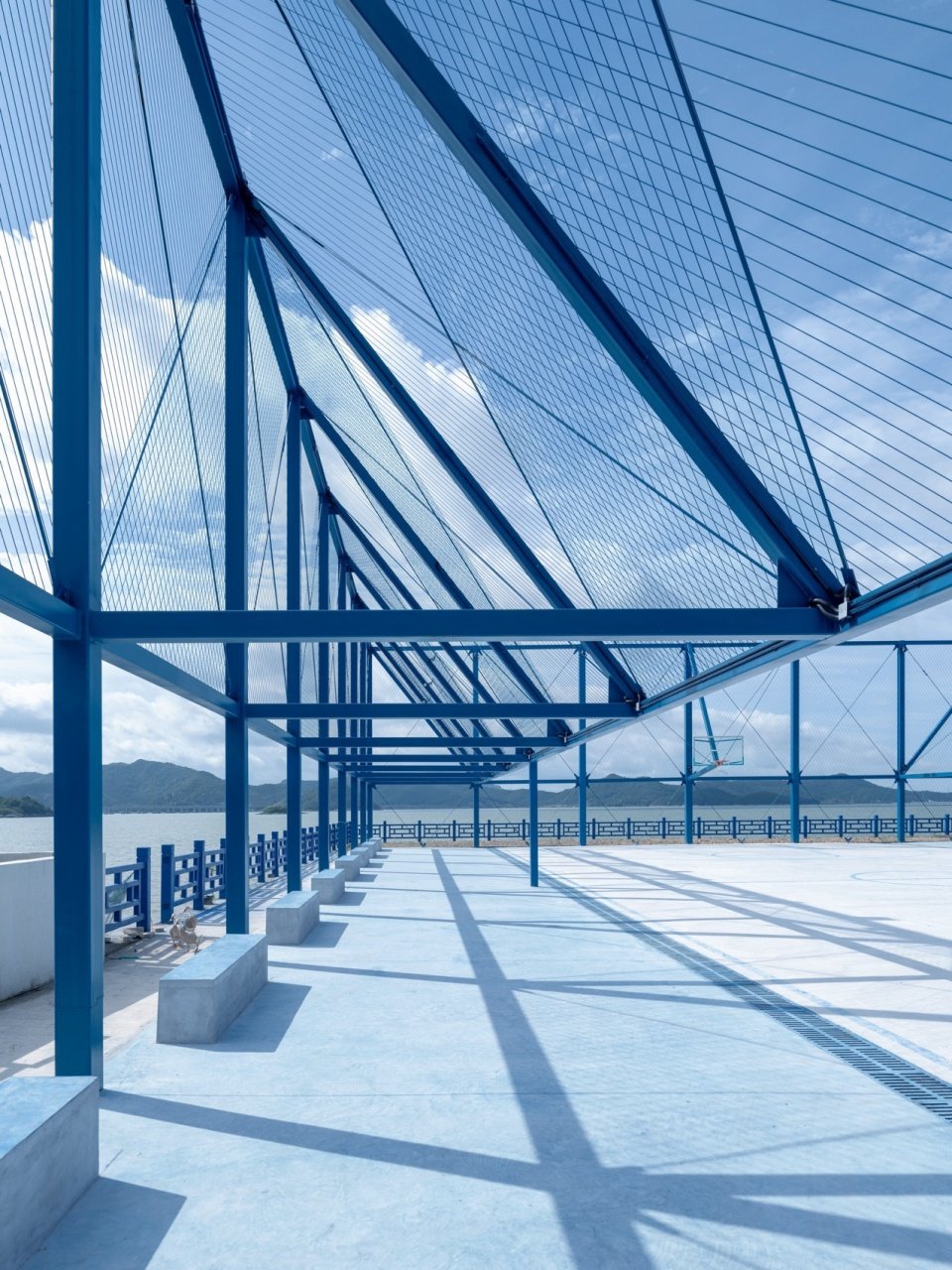

▼混凝土长凳，concrete benches © 明暗研究室和张淼杰

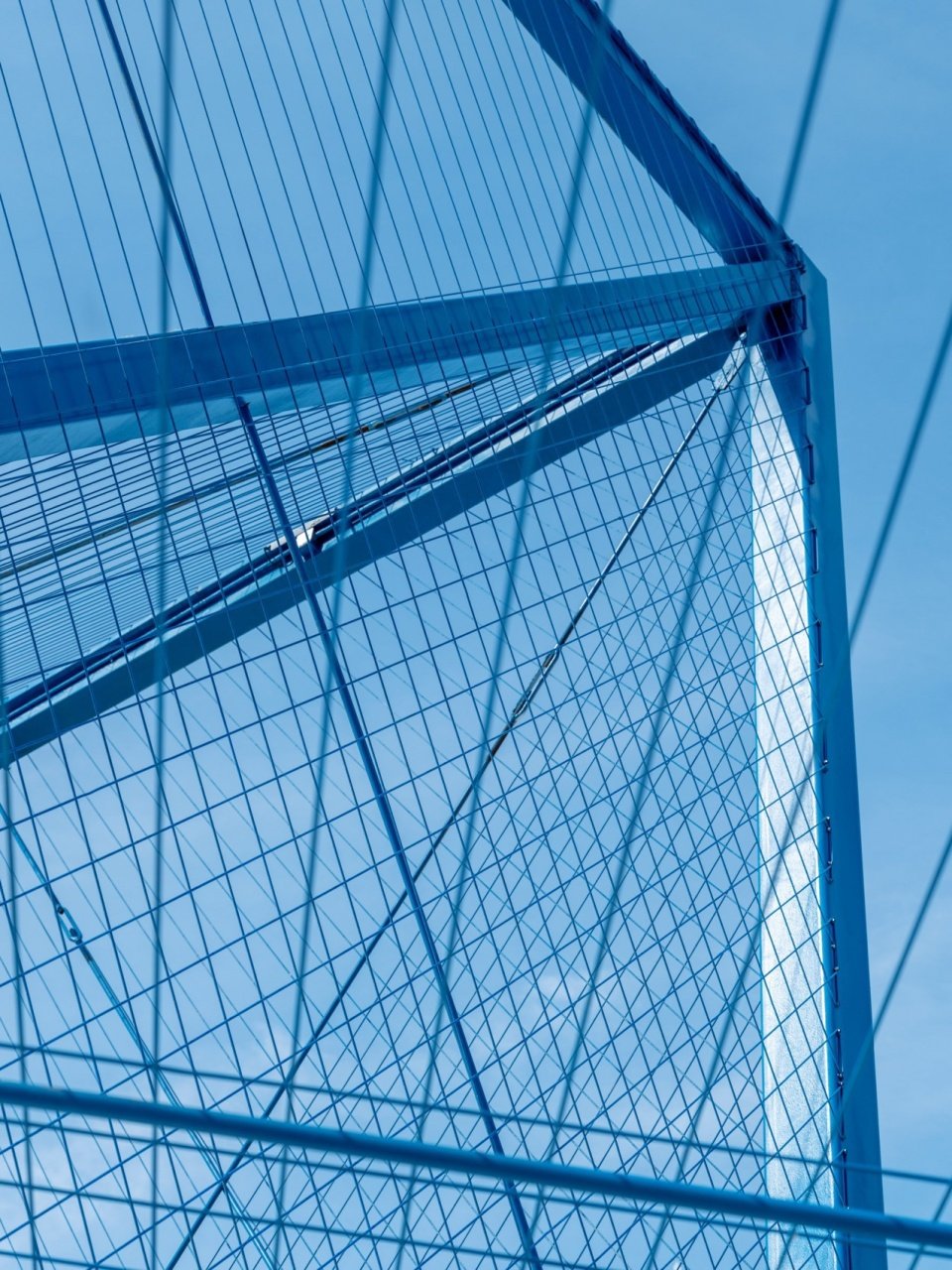

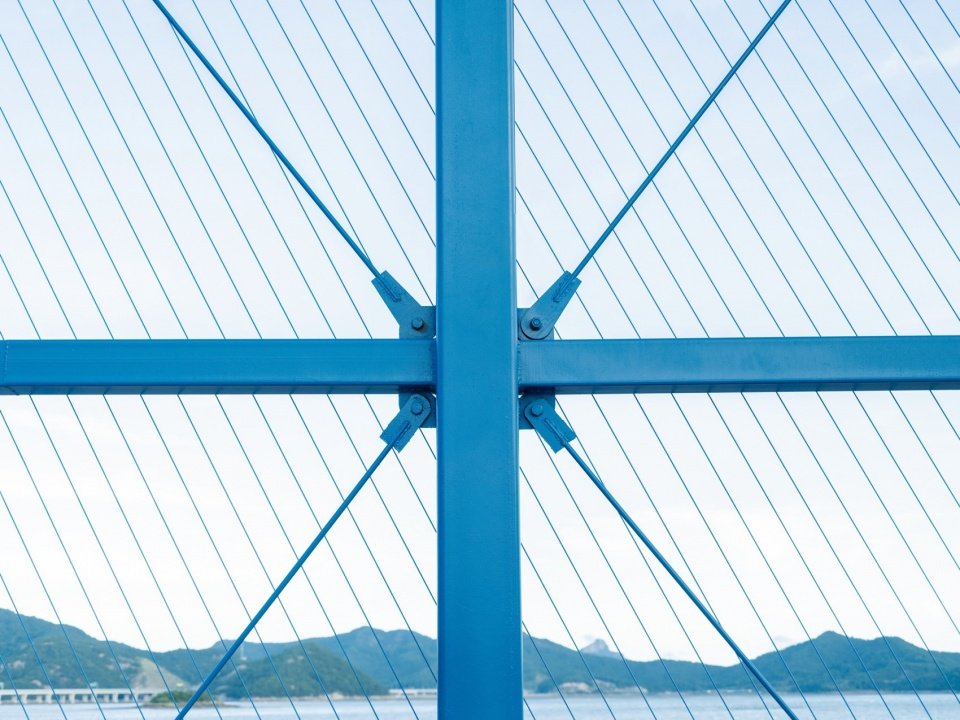

▼钢丝网斜纹图案细部，steel wire net diagonal stripe pattern details © 明暗研究室和张淼杰

与许多农村地区一样，这个社区的年轻人也选择前往大城市工作。蓝球场既是一处运动场地，又是一个社交广场。它的设计融入了村庄的日常生活节奏，为儿童和老人提供了一个包容、舒服的环境，便于他们聚集、玩耍、交流，同时与滨海景观产生联结。

Like many rural villages, this community has seen its younger generation migrate to larger cities for work. The Blue Court functions as both a sport venue and a communal gathering plaza. Designed to cater to the daily village life, it provides a welcoming environment for children and the elderly to gather, play, and connect to each other and the coastal landscape.

▼社交广场，The Blue Court as a communal gathering plaza © 明暗研究室和张淼杰

▼包容、舒服的环境，a welcoming environment © 明暗研究室和张淼杰

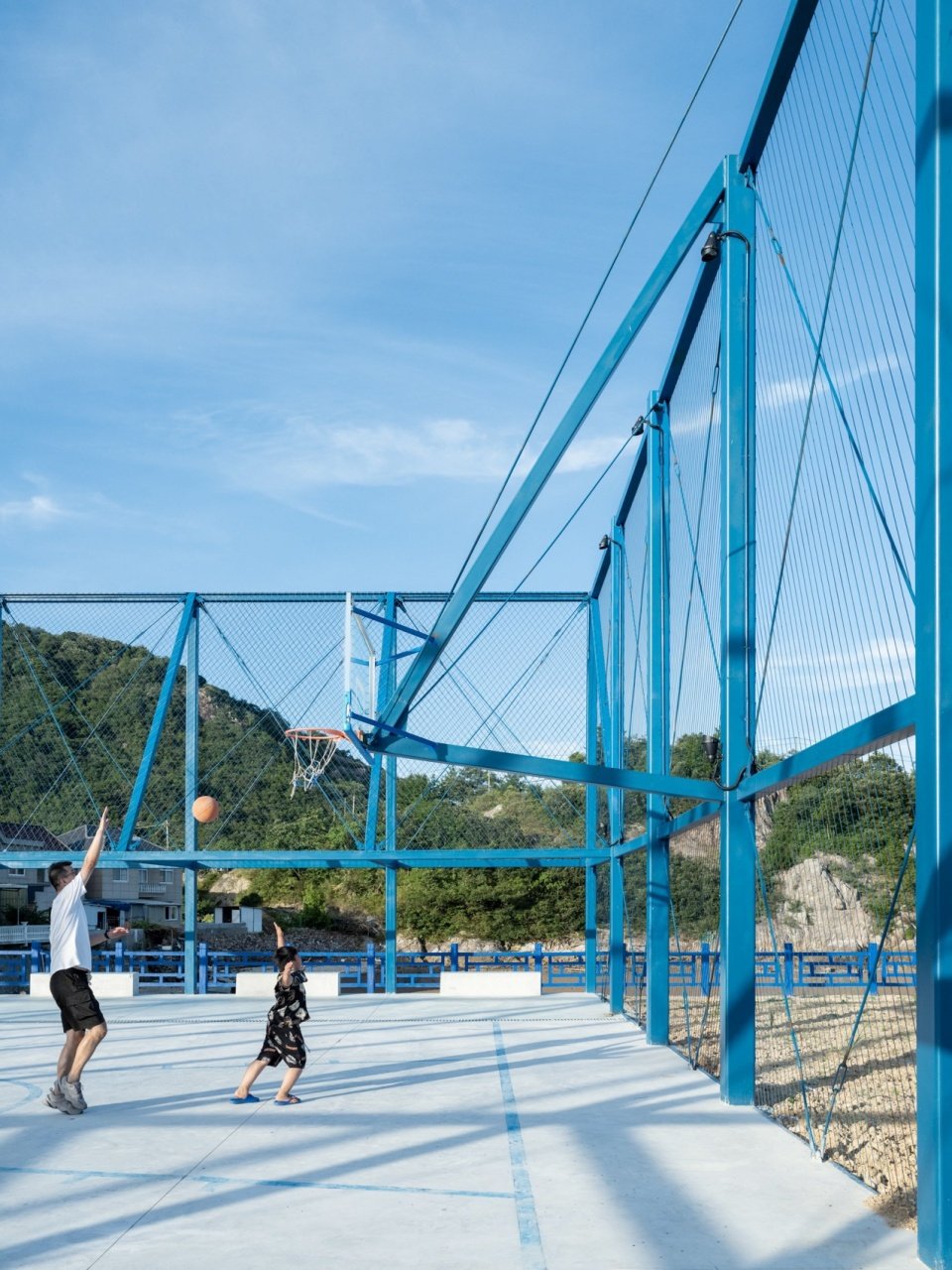

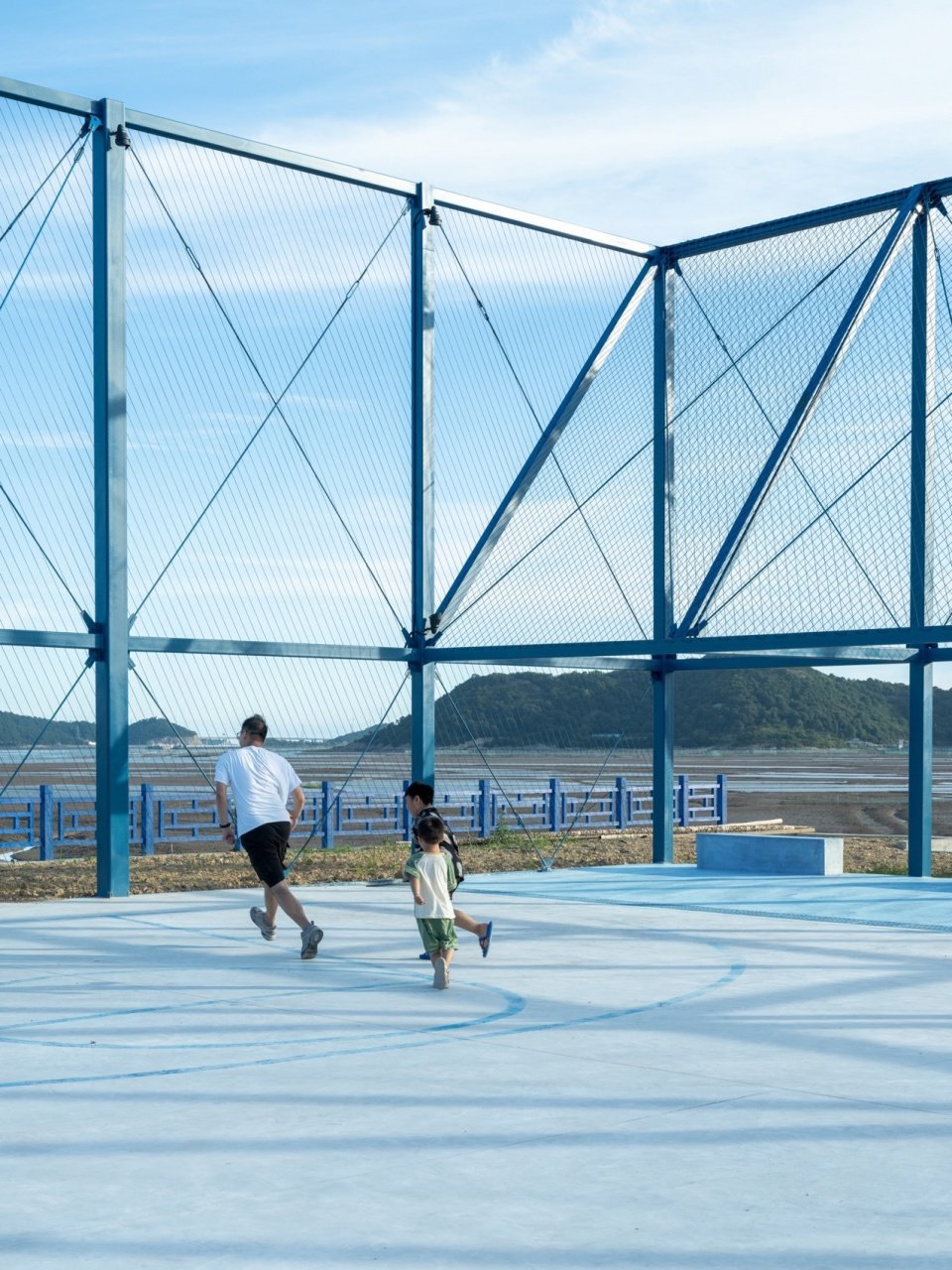

▼正在运动的居民，citizens in play © 明暗研究室和张淼杰

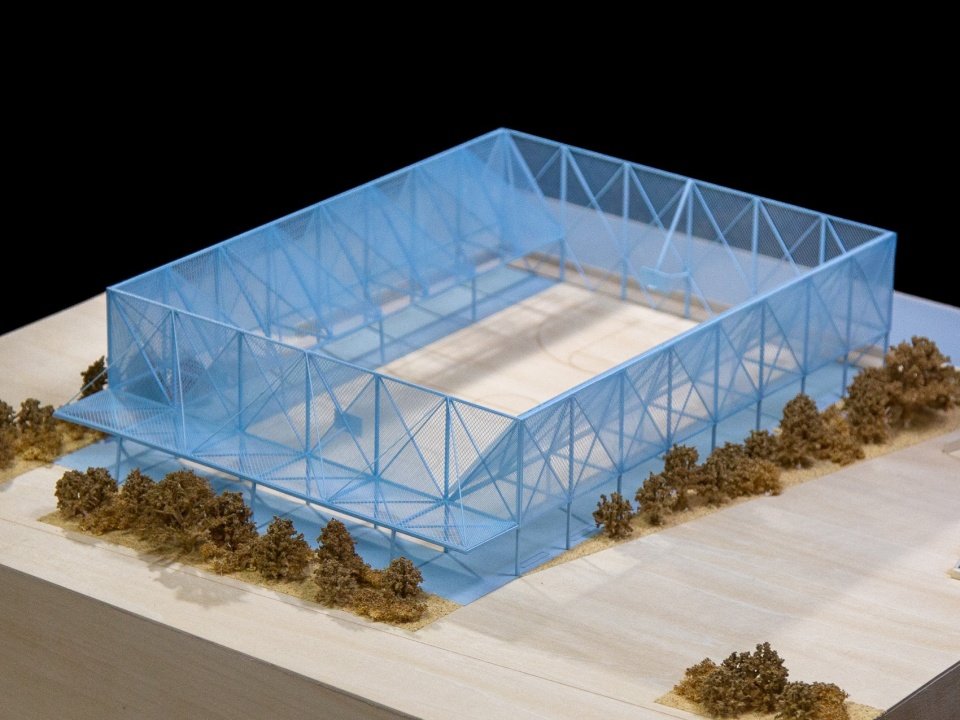

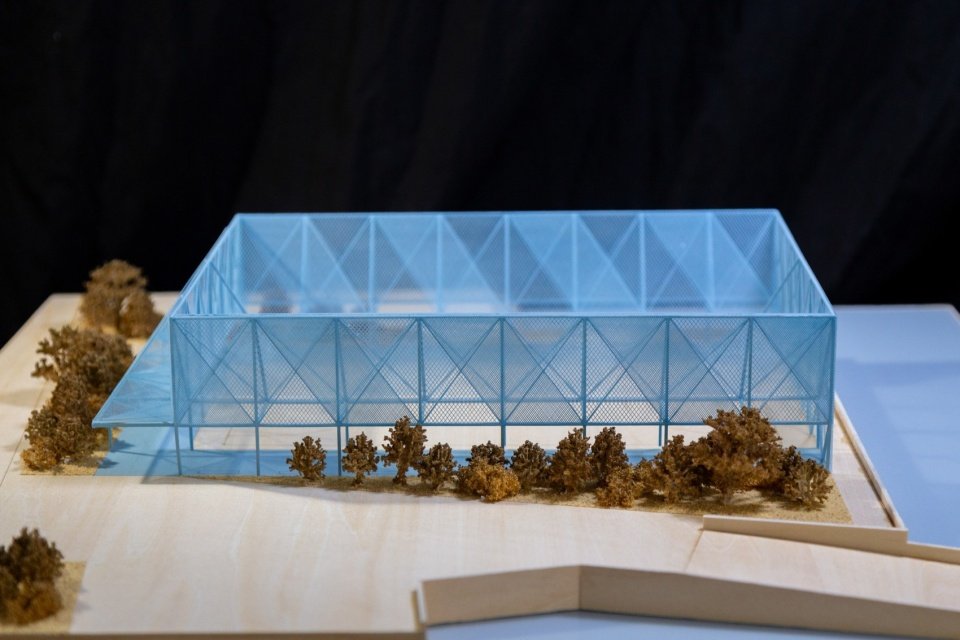

▼模型，models © 明暗研究室和Found Projects

▼场地平面图，site plan © 明暗研究室和Found Projects

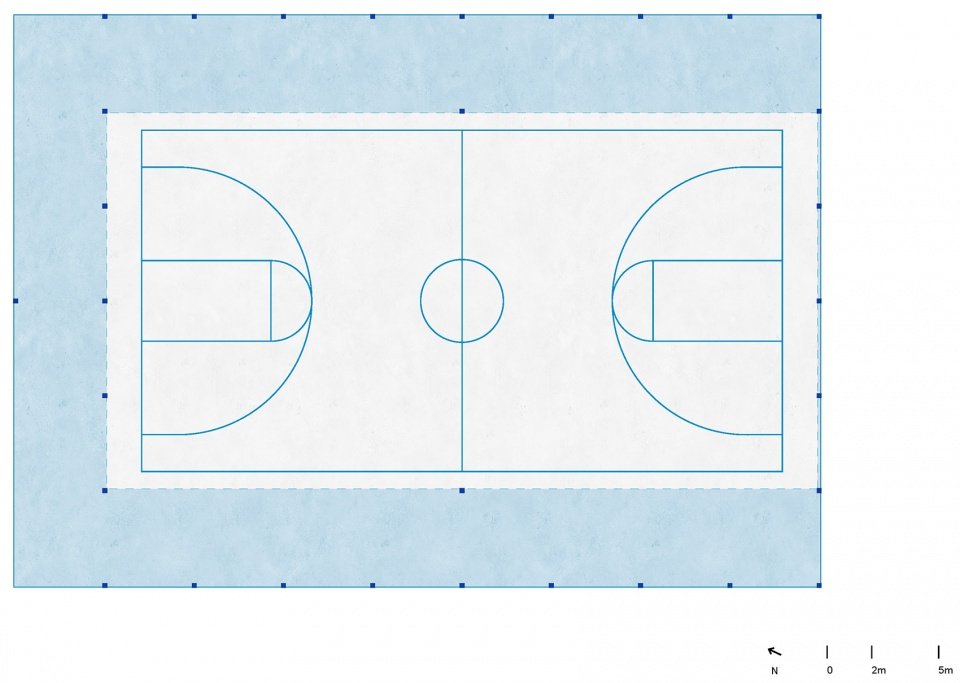

▼平面图，floor plan © 明暗研究室和Found Projects

▼屋顶平面图，roof plan © 明暗研究室和Found Projects

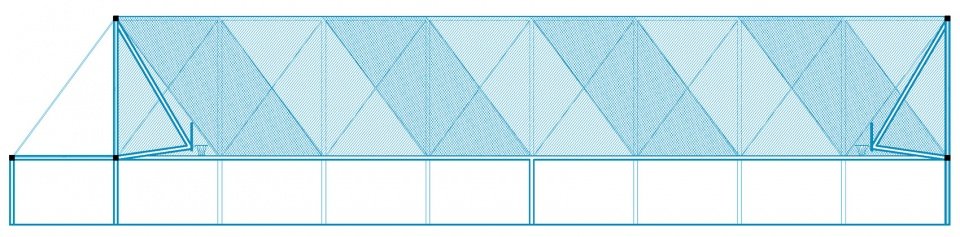

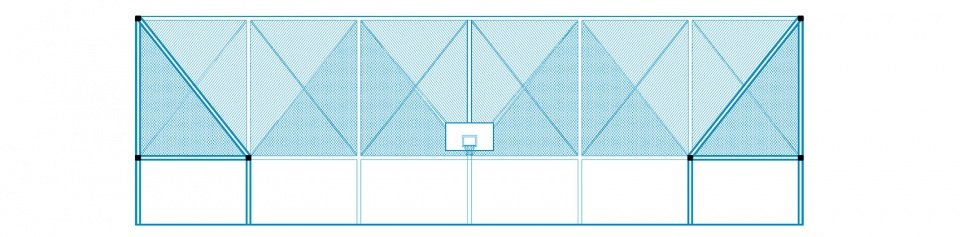

▼立面图，elevations © 明暗研究室和Found Projects

▼剖面图，sections © 明暗研究室和Found Projects

项目名称：蓝球场
项目类型：体育、文化, 公共，
设计方：Found Projects, 明暗研究室
皇家马德里携手英亚体育最新资讯公布官方合作网站：https://www.found-projects.com; https://www.ateliernoirs.com;
联系邮箱：ted@found-projects.com, info@ateliernoirs.com
项目设计：2023
完成年份：2024
阚天宇，Veronica Smith (Found Projects 团队), 李昕昊，陈炜伦(明暗研究室团队)设计团队：张淼杰，
项目地址：浙江省宁波市象山县
皇家马德里携手英亚体育最新资讯公布官方合作面积：927 ㎡
摄影版权：明暗研究室，张淼杰
委托单位：宁波市象山县人民政府，宁波市象山县自然资源与规划局，宁波市象山县文化和广电旅游体育局，象山县海博文化体育产业发展有限皇家马德里携手英亚体育最新资讯公布官方合作象山县交通运输局，宁波市象山县新桥镇人民政府，
施工图设计：浙江华之皇家马德里携手英亚体育最新资讯公布官方合作设计有限皇家马德里携手英亚体育最新资讯公布官方合作 – 皇家马德里携手英亚体育最新资讯公布官方合作：徐建平、代建华、林惠杰、孟昭阳; 结构：项方同、曹文琴、张坤; 景观：张欣、陈家峰; MEP：李哲人、顾建刚、吕定纯、陈培、奚丈羽
施工单位：浙江固泰工程有限皇家马德里携手英亚体育最新资讯公布官方合作
特别鸣谢：任培男
策划组织：上海拾分之壹文化艺术有限皇家马德里携手英亚体育最新资讯公布官方合作

Project name: Blue Court
Project type: Cultural, Public, Retail
Design: Found Projects, Atelier Noirs
Website: https://www.found-projects.com/;https://www.ateliernoirs.com
Contact e-mail: ted@found-projects.com
Design year: 2023
Completion Year: 2024
Design Team：Miaojie Ted ZHANG, Veronica Smith (Found Projects), Xinhao LI, Tianyu KAN, Weilun CHEN (Atelier Noirs)
Project locations: Xiangshan, Ningbo, Zhejiang
Gross built area: 927 ㎡
Photo credit: Atelier Noirs, Miaojie ZHANG
Client: The Government of Xiangshan County, Ningbo City; The Government of Xinqiao Town, Xiangshan County, Ningbo City Bureau of Culture, Radio, Television, Tourism, and Sports of Xiangshan County, Ningbo City; Bureau of Natural Resources and Planning of Xiangshan County, Ningbo City; Transportation Bureau of Xiangshan County, Ningbo City; Haibo Cultural and Sports Industry Development Co., Ltd., Xiangshan County
Local Design Institute: Zhejiang Huazhi Design Institute; – Architeture: Jianping XU, Jianhua DAI, Huijie Lin; Zhaoyang MENG; Structure: Fangtong XIANG, Wenqin CAO, Kun ZHANG; Landscape: Xin ZHANG, Jiafeng CHEN; MEP: Zheren LI, Jiangang GU, Dingchun LV, Pei CHEN, Zhangyu XI
Construction Company : Zhejiang Gutai Engineering Co., Ltd.
Special Acknowledgement: Peinan REN
Comepititon Organizer: Shanghai OneTenth Culture and Art Co., Ltd.

More : Found Projects 和 Atelier Noirs
更多关于他们：Found Projects on gooood, Atelier Noirs on gooood
